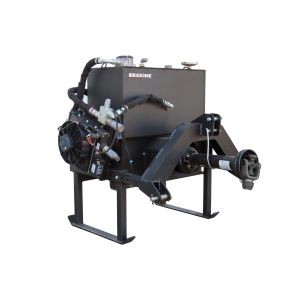

A Tractor PTO (Power Take-Off) Hydraulic Power Unit is a system that converts mechanical energy from a tractor’s PTO into hydraulic power, which can then be used to operate hydraulic equipment. The PTO is typically a shaft found on the tractor that transmits power from the engine to external implements or attachments.

### Key Components:

1. **PTO Shaft**: Connects the tractor’s PTO to the hydraulic power unit.

2. **Hydraulic Pump**: Converts the mechanical energy from the PTO into hydraulic energy.

3. **Hydraulic Reservoir**: Holds the hydraulic fluid that is used in the system.

4. **Control Valves**: Direct the flow of hydraulic fluid to various attachments or implements.

5. **Hoses and Fittings**: Connects the hydraulic power unit to the equipment being operated.

### How to Use a PTO Hydraulic Power Unit:

1. **Setup**:
– Ensure the tractor is parked on level ground and that the engine is off.
– Attach the hydraulic power unit to the PTO shaft. Make sure it is securely connected.

2. **Connect the Hydraulic Hoses**:
– Attach the hydraulic hoses from the hydraulic power unit to the implement or hydraulic tool you wish to operate. Make sure connections are tight and leak-free.

3. **Fill Hydraulics**:
– Check the hydraulic fluid level in the reservoir and fill it as needed with the recommended hydraulic fluid.

4. **Start the Tractor**:
– Start the tractor’s engine and engage the PTO. This will begin to drive the hydraulic pump, generating hydraulic pressure.

5. **Operate the Implement**:
– Use the control valves to control the flow of hydraulic fluid to the implement. This allows you to operate the tools connected to the hydraulic system, such as hydraulic cylinders, motors, or other attachments.

6. **Monitor Operation**:
– Keep an eye on the pressure gauges (if equipped) and listen for any unusual noises. Ensure that the hydraulic fluid doesn’t overheat or leak.

7. **Shut Down**:
– When finished, disengage the PTO, turn off the tractor, and disconnect the hydraulic hoses if necessary. Store the hydraulic power unit in a safe location.

### Applications:

PTO hydraulic power units are commonly used for a variety of tasks such as:
– Operating hydraulic augers,
– Running hydraulic pumps for digging,
– Supplying power to hydraulic lifts,
– Tilling, or other agricultural implements.

### Safety Tips:

– Always wear appropriate personal protective equipment (PPE).
– Follow the manufacturer’s guidelines for operation and maintenance.
– Regularly check hoses and fittings for wear or leaks.
– Be cautious when working around moving machinery and hydraulic components under pressure.

By utilizing a PTO hydraulic power unit, you can effectively power a wide array of hydraulic equipment, greatly enhancing your tractor’s functionality.
