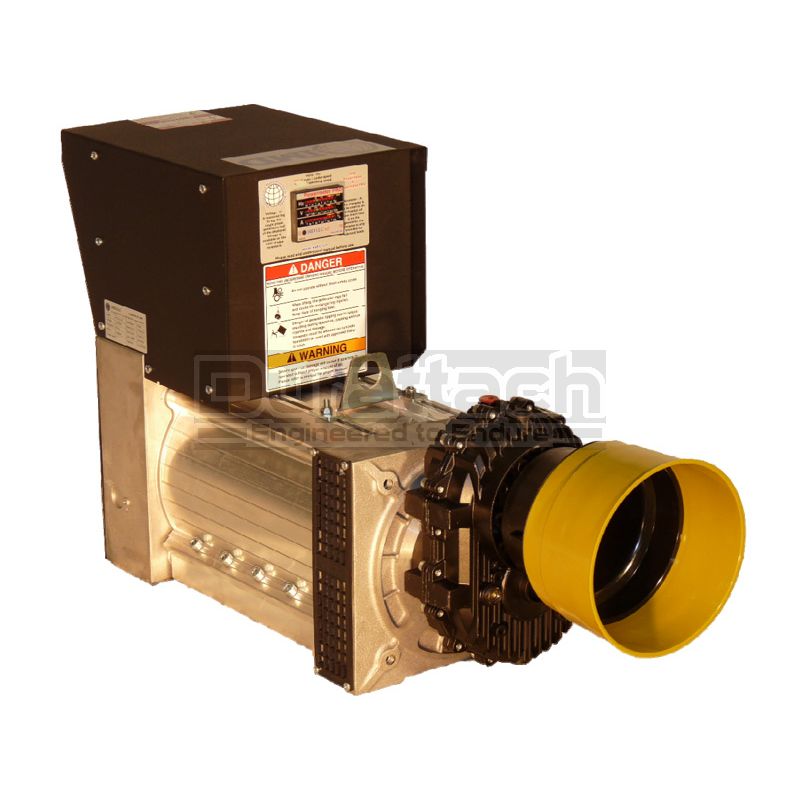

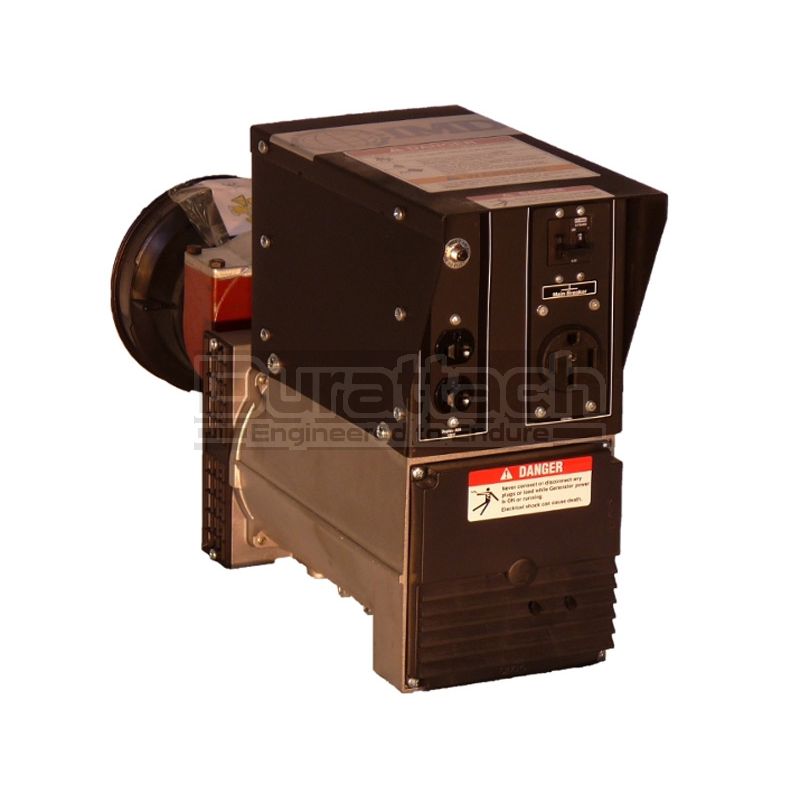

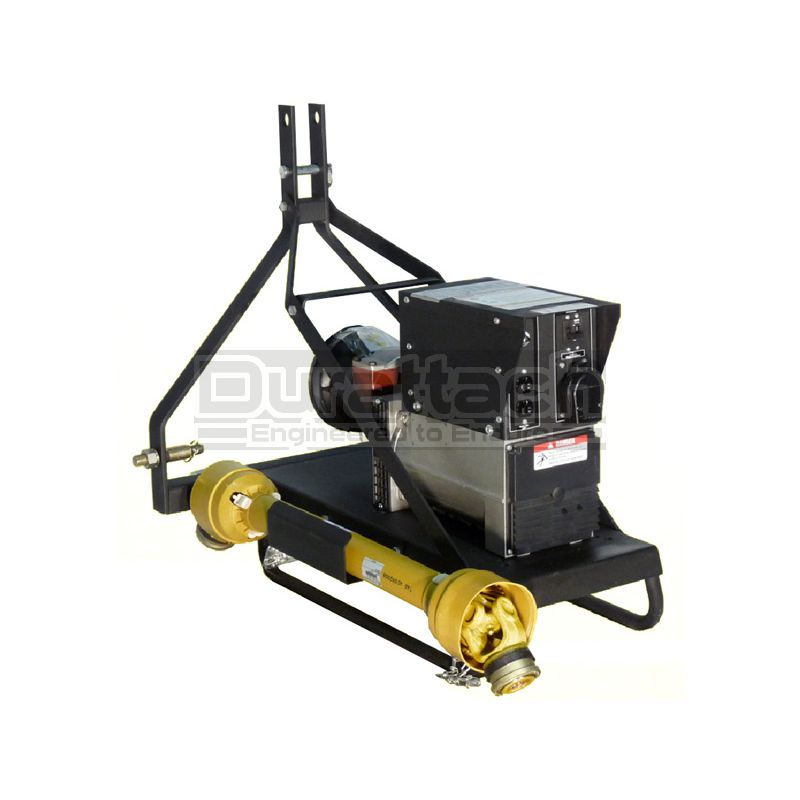

10KW (10,000 Watts) IMD PTO Generator Model PTO10-2S
| Compare at | : | $2,175.00 | |
|---|---|---|---|
| Our Price | : | $2,066.00 | |
| SKU | : | IMD-10011 | |
| Identifier | : | IMD-775 | |
| Availability | : |
Ships in Approximately 6-8 Weeks; Built-to-Order. May be subject to unexpected delays. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features.
Features:
* High quality PTO generator with 10KW continuous output.
* Heavy duty single-phase, brushless (capacitor) design for maintenance free performance.
* 100% copper winding, low distortion alternator (THM<5%) for high quality power output, insulation class H.
* Lifetime pre-sealed maintenance-free bearings.
* Aluminum and steel housing for a maximum in durability and lightweight.
* Heavy duty cast iron single stage gearbox.
* Magnetic circuit breaker with individual circuit protection for safety and accurate overload protection.

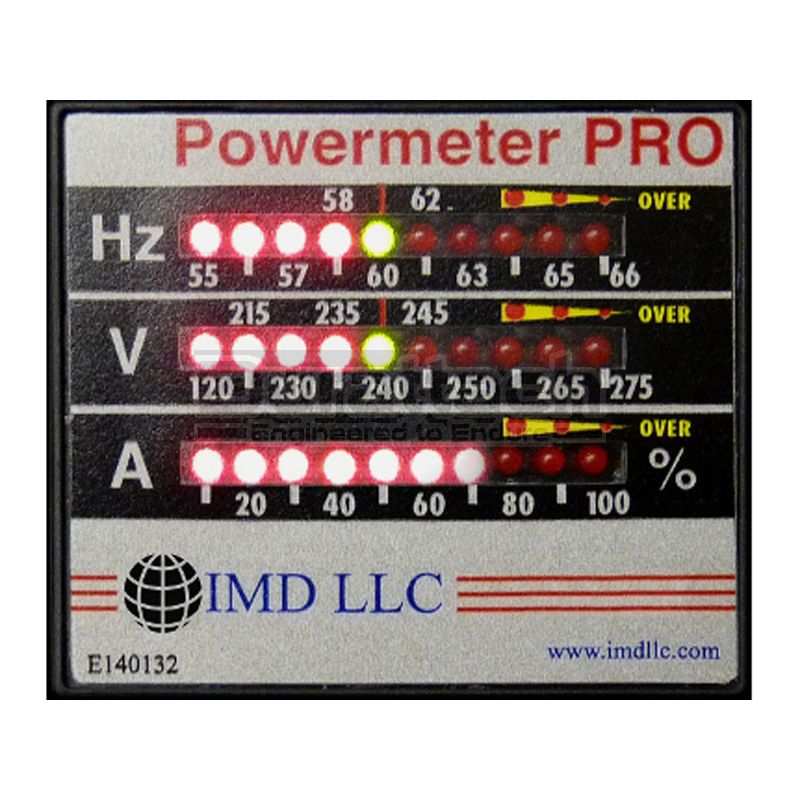

* Exclusive 4" Three Bar LED meter provides accurate display of Hertz, Volts, and Amps output.
* Drip-proof design.
* Simultaneous 120V and 240V output.
* Full power outlet.
* Standard 1-3/8", 6-spline input shaft.
* Rated for Continuous Output
* Electronic Voltage Regulation (AVR- version only)
Unit Specifications:
* Rated Wattage: 10,000 Watts
* Starting Capacity: 20,000 Watts
* Maximum Breaker Capacity: 40 Amps
* Receptacles: NEMA 5-20 and NEMA 1450
* AVR: Optional
* Minimum Tractor PTO Horsepower: 20
* PTO Speed: 540RPM
* High quality PTO generator with 10KW continuous output.
* Heavy duty single-phase, brushless (capacitor) design for maintenance free performance.
* 100% copper winding, low distortion alternator (THM<5%) for high quality power output, insulation class H.
* Lifetime pre-sealed maintenance-free bearings.
* Aluminum and steel housing for a maximum in durability and lightweight.
* Heavy duty cast iron single stage gearbox.
* Magnetic circuit breaker with individual circuit protection for safety and accurate overload protection.
* Exclusive 4" Three Bar LED meter provides accurate display of Hertz, Volts, and Amps output.
* Drip-proof design.
* Simultaneous 120V and 240V output.
* Full power outlet.
* Standard 1-3/8", 6-spline input shaft.
* Rated for Continuous Output
* Electronic Voltage Regulation (AVR- version only)
Unit Specifications:
* Rated Wattage: 10,000 Watts
* Starting Capacity: 20,000 Watts
* Maximum Breaker Capacity: 40 Amps
* Receptacles: NEMA 5-20 and NEMA 1450
* AVR: Optional
* Minimum Tractor PTO Horsepower: 20
* PTO Speed: 540RPM
| SKU | IMD-10011 |
|---|---|
| Weight | 110 lbs |
| Identifier | IMD-775 |
| Model | PTO 10/2 S |
| Output | 10 KW (10,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | 20 KW |
| Breaker Capacity | 40 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | Duplex 120V, 20A NEMA 5-20, Straight Blade 120/240V, 50A NEMA 14-50 |
| Color | Black |
| Manufacturer | IMD |
