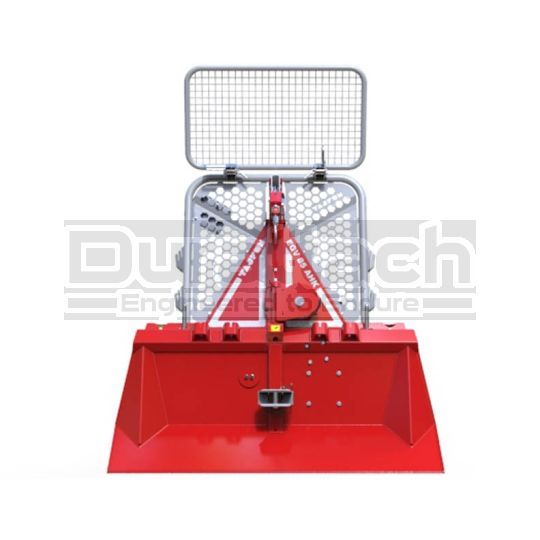

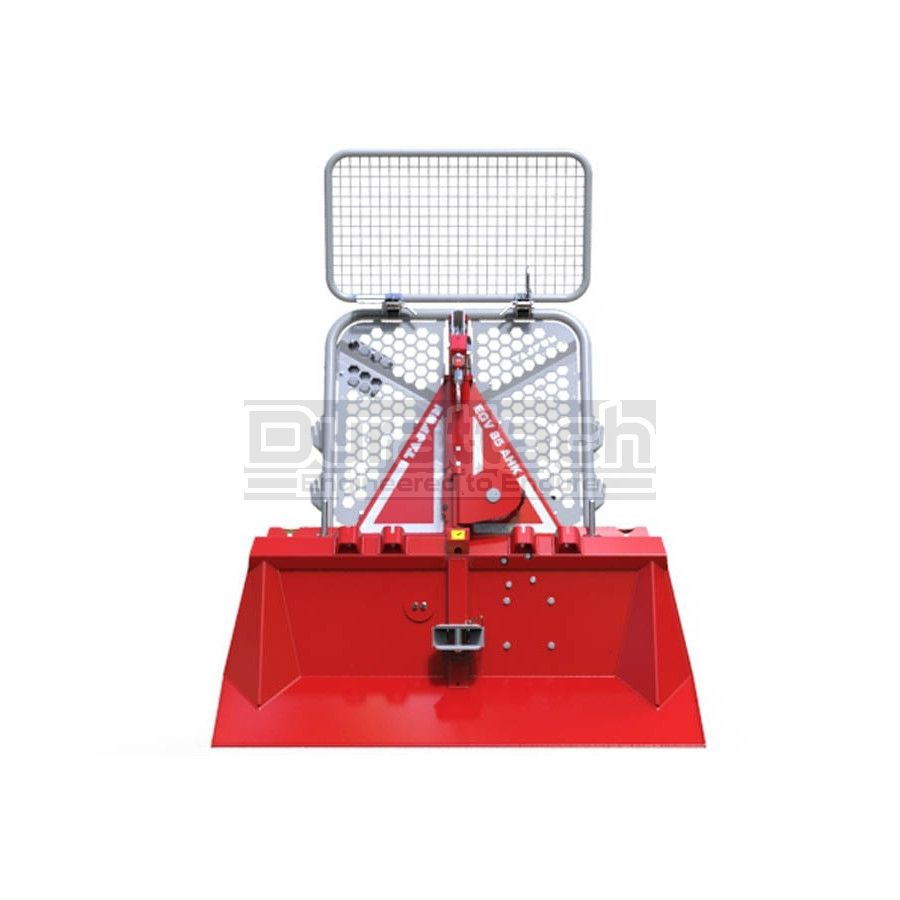

19,000 lbs. Tajfun Single Drum Logging Winch Model EGV 85 AHK

19,000 lbs. Tajfun Single Drum Logging Winch Model EGV 85 AHK

Tajfun started developing and manufacturing logging winches in 1979. They constantly update, upgrade and develop different winch types for different needs. The results of their long term development are:

* Reliable and easy hydraulic (Type AHK) or mechanical control (Type A ).
* Very simple and fast installation to tractor's three point mounting system.
* Robotic welded stable and robust construction, made of high quality steel, laser cut and powder coated.
* Sturdy drive line, each shaft with double bearings and double reduction gearing (winches from 10,000 lbs to22,500 lbs).
* Highly efficient clutch activation, even with mechanical winches--short pull, low activation pressure.
* High efficiency and safety.

Features:
* Folding safety screen (for simplified transport)
* Tail hook holder
* Efficient wire cable winding--high distance between inlet pulley and center of the drum
* Large and stable pulleys
* Parallel shielded pulleys follow the pulling direction of the cable, even with maximum loads
* Recesses for hanging of chains
* Standard equipment, a removable trailer hitch witch is attached to a safe place on the frame when not in use
* Wedge shape of logging blade ensures safe anchoring
* Broad logging blade of high quality
* Chainsaw holder
* Adjustable Upper Coupling
* Coupling Holder
* P.T.O. Shaft Holder
* Two covered toolboxes, mounted above connecting beams
* Opening for Rope Installation
* Two folding support legs which ensure stability of the stand-alone winch
* Large and massive drum (high cable capacity) with high diameter drum core (low loss of pulling power, long cable lifetime)
* Optimal Drum Axle Dimensions
* Strong Drum Walls
* Wide Brakeband
* Quality SKF bearing
* High pulling power and lower load of components due to 3 or 5-plate clutch
* Thick Strengthened Drive Chain
* Some Assembly Required

Optional Radio Remote Control
* New shape allows optimum body fit in all situations
* Large control panel, inclined control panel, integrated safety belt ribbon
* Plastic high hardness construction with rubber coated edges
* More carrying options (on hip, chest or abdomen)
* Replaceable ordinary batteries (AA); high quality Sanyo Eneloop batteries are included
* Two way radio technology
* DIN standard compliant Stop and Emergency Switch
* Standard movement and position Sensors
* Optional GPS enabled Emergency Switch
* 5 year warranty for registered customers
