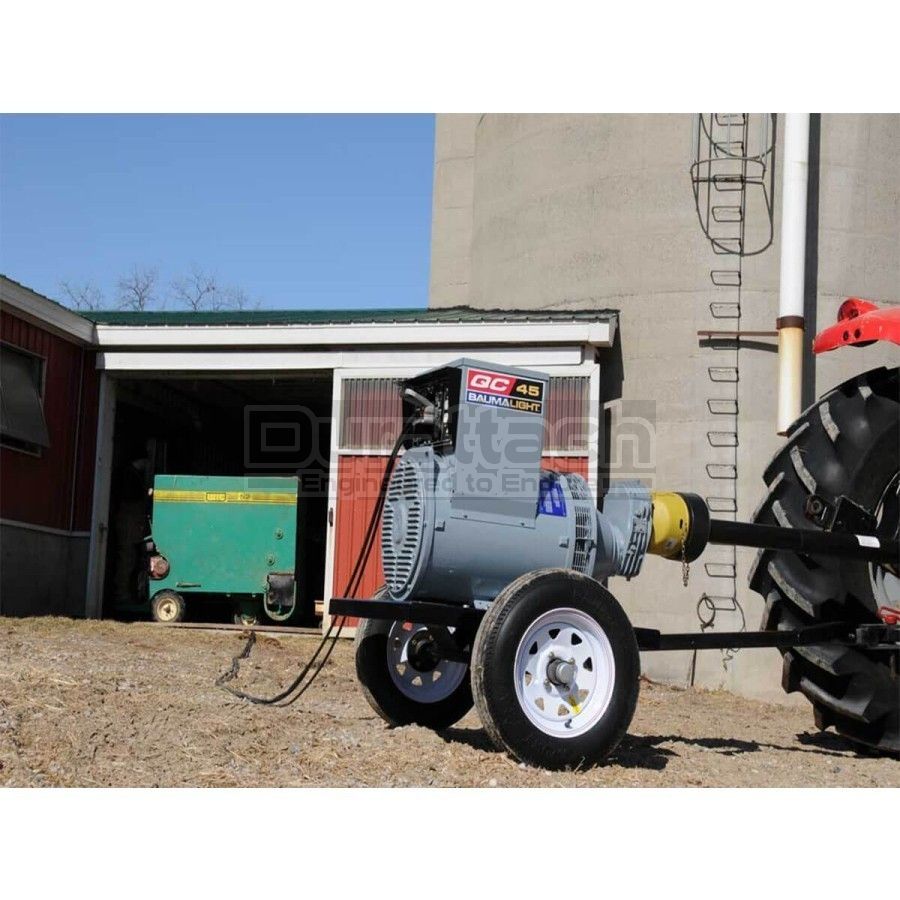

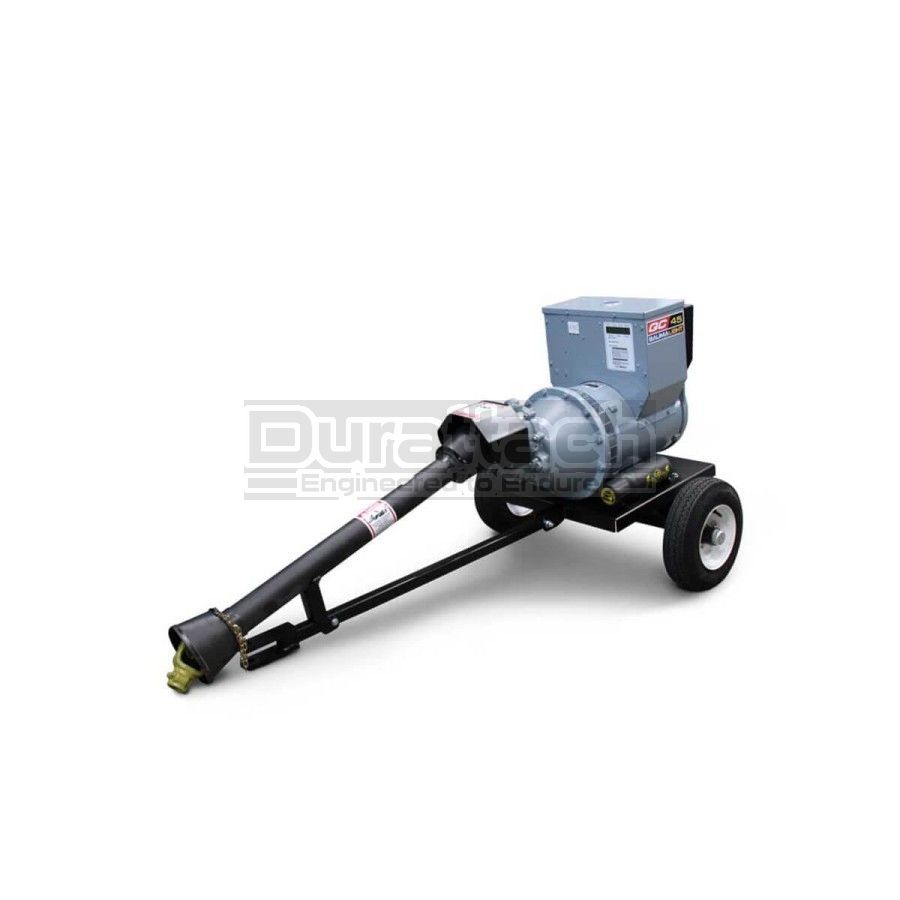

45KW (45,000 Watts) Baumalight PTO Generator Model QC45-4

Designed for mobile or standby electrical power, the QC PTO generator for 120/240 single phase models are ideal for your farm or rural property. At 100% load, these QC PTO models offer 12 KW to 100 KW and momentary surge from 25 up to 300 KW. To determine exactly how much power you need, you can find specific information on our website by using our Power Calculator as well as our Principles Chart, which outlines which QC PTO generator model will best suit your property’s power requirements.

Model QC 45
▪ Connection: Dedicated
▪ KW: 45
▪ Momentary Surge KW: 120
▪ Welder Recept Voltage: 240
▪ Volts: 120/240
▪ Full Output Amps: 175

Model QC 45-2
▪ Connection: Parallel Parallel Low WYE
▪ KW: 45
▪ Momentary Surge KW: 120
▪ Welder Recept Voltage: 208
▪ Volts: 120/208
▪ Full Output Amps: 150

Model QC 45-3
▪ Connection: Series High DELTA
▪ KW: 45
▪ Momentary Surge KW: 120
▪ Welder Recept Voltage: 240
▪ Volts: 120/240
▪ Full Output Amps: 150

Model QC 45-4
▪ Connection: Series High WYE
▪ KW:50
▪ Momentary Surge KW: 150
▪ Welder Recept Voltage: N/A
▪ Volts: 277/480
▪ Full Output Amps: 80
