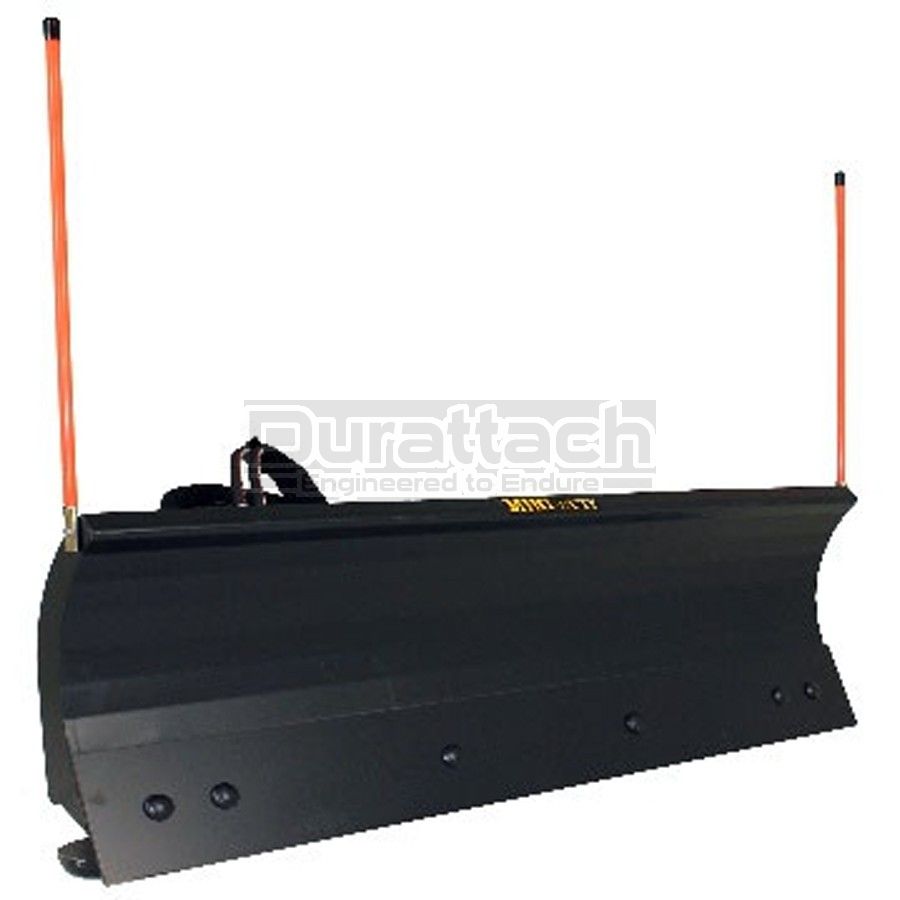

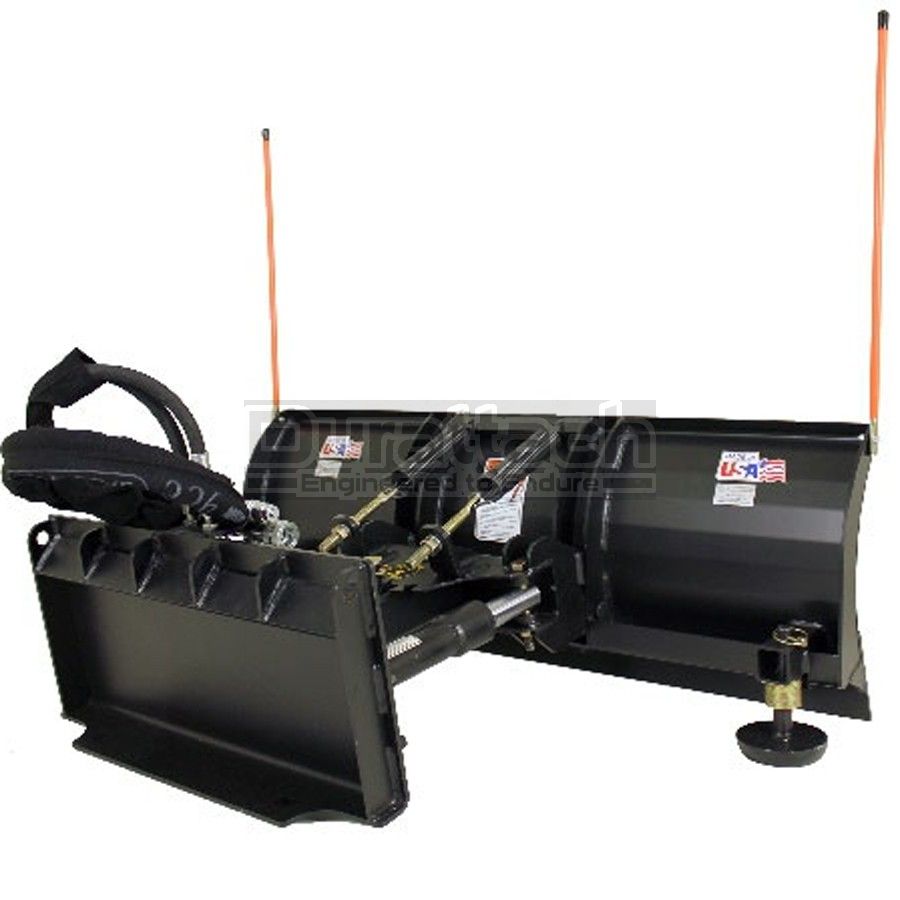

48" Construction Attachments Mini Snow Blade Model 1SNBMN48MS
| Compare at | : | $1,978.00 | |
|---|---|---|---|
| Our Price | : | $1,879.00 | |
| SKU | : | CON-1SNBMN48MS | |
| Identifier | : | CON-7637 | |
| Availability | : |
Ships in Approximately 2-3 Weeks. May be subject to unexpected delays. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features.
Made in USA.
The Perfect Blade...The Snow/Light Material Blade is the perfect way to remove snow from walks, driveways, or parking lots.
Features:
• Designed to fit ride‐on or walk‐behind mini skid steer and
track loaders
• Hydraulic models come standard with 2 single‐acting plow
cylinders
• An optional crossover relief valve to protect and extend
cylinder life may be factory installed or added at any time
using the standard hose assembly
• Four‐way blade with up to 30 degree angle left or right
• Available in manual angle or hydraulic angle operation
• Manual snow blade can be easily converted to hydraulic
by installing hose assembly and crossover relief, and by
adding hydraulic cylinders
• Requires no cutting or welding to convert
• Replaceable reversible bolt‐on cutting edge available in
steel
• Spring‐trip moldboard standard on all models (2 springs
come standard, additional springs may be purchased)
• Standard equipment includes high visibility snow guides
• Snow guides provide operator visibility and certainty of
edge position even in low light and poor visibility
conditions
• Adjustable skid shoes standard set blade at a preset height
to prevent gouging; prolongs blade life
• Multiple sizes available in widths from 36” to 54”
The Perfect Blade...The Snow/Light Material Blade is the perfect way to remove snow from walks, driveways, or parking lots.
Features:
• Designed to fit ride‐on or walk‐behind mini skid steer and
track loaders
• Hydraulic models come standard with 2 single‐acting plow
cylinders
• An optional crossover relief valve to protect and extend
cylinder life may be factory installed or added at any time
using the standard hose assembly
• Four‐way blade with up to 30 degree angle left or right
• Available in manual angle or hydraulic angle operation
• Manual snow blade can be easily converted to hydraulic
by installing hose assembly and crossover relief, and by
adding hydraulic cylinders
• Requires no cutting or welding to convert
• Replaceable reversible bolt‐on cutting edge available in
steel
• Spring‐trip moldboard standard on all models (2 springs
come standard, additional springs may be purchased)
• Standard equipment includes high visibility snow guides
• Snow guides provide operator visibility and certainty of
edge position even in low light and poor visibility
conditions
• Adjustable skid shoes standard set blade at a preset height
to prevent gouging; prolongs blade life
• Multiple sizes available in widths from 36” to 54”
| SKU | CON-1SNBMN48MS |
|---|---|
| Weight | 219 lbs |
| Identifier | CON-7637 |
| Model | 1SNBMN48MS |
| Width - Overall | 48" (4 Feet; 122 cm) |
| Width - Working | 48" (4 Feet; 122 cm) |
| Width - Fully Angled | 44" (112 cm) |
| Moldboard | 16" Tall (41 cm) |
| Spring Trip | Spring Trip Moldboard (Full Blade) |
| Angle | 30 Degree Manual Angle Left and Right Standard; Hydraulic Optional |
| Blade End Guide Markers | Included Standard |
| Hydraulic Cylinder(s) | Hydraulic Angle Cylinder Optional |
| Hydraulic Hoses/Couplers | Hoses Included (less couplers) with Hydraulic Angle Option |
| Skid Shoes | Adjustable and Replaceable, Included |
| Cutting Edge | Hardened Steel Bolt-On Standard |
| Hitch Connection Type | Mini Skid Steer Connection (Others Optional) |
| Color | Black |
| Manufacturer | Construction Attachments |
