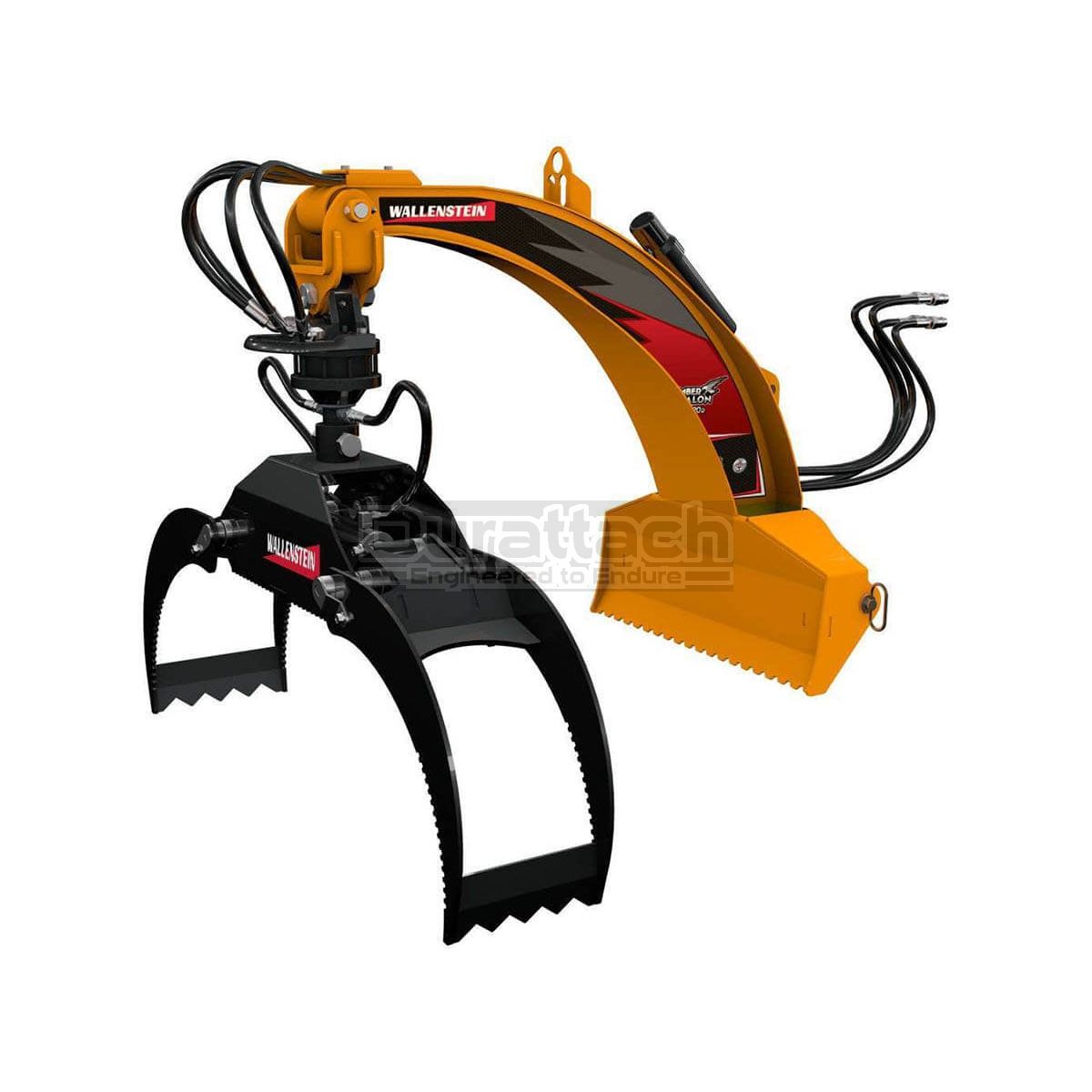

48" Wallenstein 3-Point Tractor Log Grapple Model LXG320R
In Stock
SKU
ELL-WAL-LXG320R
Compare at:
$5,307.00
Add to Cart for our Best Price
| Our Price | : |
$5,307.00
Add to Cart for our Best Price |
|
|---|---|---|---|
| Country Of Manufacture | : | Canada | |
| SKU | : | ELL-WAL-LXG320R | |
| Identifier | : | WAL-3307 | |
| Availability | : |
Ships in Approximately 6-8 Weeks; Built-to-Order. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features or colors.
Fast forward your logging productivity with Wallenstein’s Three-Point Hitch Log Grapple for compact tractors. Engineered to withstand the toughest forest conditions, these grapples are perfect partners for farmers, rural property owners, and logging contractors to forward logs out of the woods with confidence.
* Lift Capacity: 3000 lbs (1360 kg)
* Engine HP Range: 25 - 65
* Required Hydraulic Flow: 5 gpm (19 lpm)
* Grapple Opening: 3" - 48" (8 cm - 122 cm)
* Grapple Rotation: 360°
* Clamp Force: 9400 lbs (4264 kg)
* Rotator/Pivot Rating: 6750 lbs (3062 kg)
* Total Weight: 353 lbs (160 kg)
* Dimensions (LxWxH): 51" x 52" x 46" (130 cm x 132 cm x 117 cm)
* Mounting System: Cat I
IMPORTANT: Requires 3rd Function Hydraulic Valve for operation.
* Lift Capacity: 3000 lbs (1360 kg)
* Engine HP Range: 25 - 65
* Required Hydraulic Flow: 5 gpm (19 lpm)
* Grapple Opening: 3" - 48" (8 cm - 122 cm)
* Grapple Rotation: 360°
* Clamp Force: 9400 lbs (4264 kg)
* Rotator/Pivot Rating: 6750 lbs (3062 kg)
* Total Weight: 353 lbs (160 kg)
* Dimensions (LxWxH): 51" x 52" x 46" (130 cm x 132 cm x 117 cm)
* Mounting System: Cat I
IMPORTANT: Requires 3rd Function Hydraulic Valve for operation.
| SKU | ELL-WAL-LXG320R |
|---|---|
| Weight | 353 lbs |
| Identifier | WAL-3307 |
| Model | LXG320R |
| Product Video | https://www.youtube.com/watch?v=r3dkm_d7s94 |
| Horsepower Recommended | 25 - 65 HP (18.6 - 48.5 KW) |
| Maximum Opening | 48" (4 feet; 122 cm) |
| Cutting Edge | N/A |
| Tines / Rods | Bypassing Grapple Tines; 3" to 38" Clamping Capacity |
| Rods / Tines Spacing | N/A |
| Teeth | N/A |
| Hydraulic Cylinder(s) | One (1) @ 2-1/2" x 6" Clamping Cylinder |
| Hydraulic Hoses/Couplers | Hoses Included, Less Couplers |
| 3rd Function Hydraulic Valve | Required |
| Hitch Connection Type | Category 1, 3-Point Hitch |
| Color | Yellow (Other Colors Available/Optional) |
| Manufacturer | Wallenstein |
