54" Construction Attachments Mini 4-in-1 Multi-Purpose Compact Bucket Model 1MPMN54
| Compare at | : | $3,972.00 | |
|---|---|---|---|
| Our Price | : | $3,773.00 | |
| SKU | : | CON-1MPMN54 | |
| Identifier | : | CON-7131 | |
| Availability | : |
Ships in Approximately 2-3 Weeks. May be subject to unexpected delays. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features.

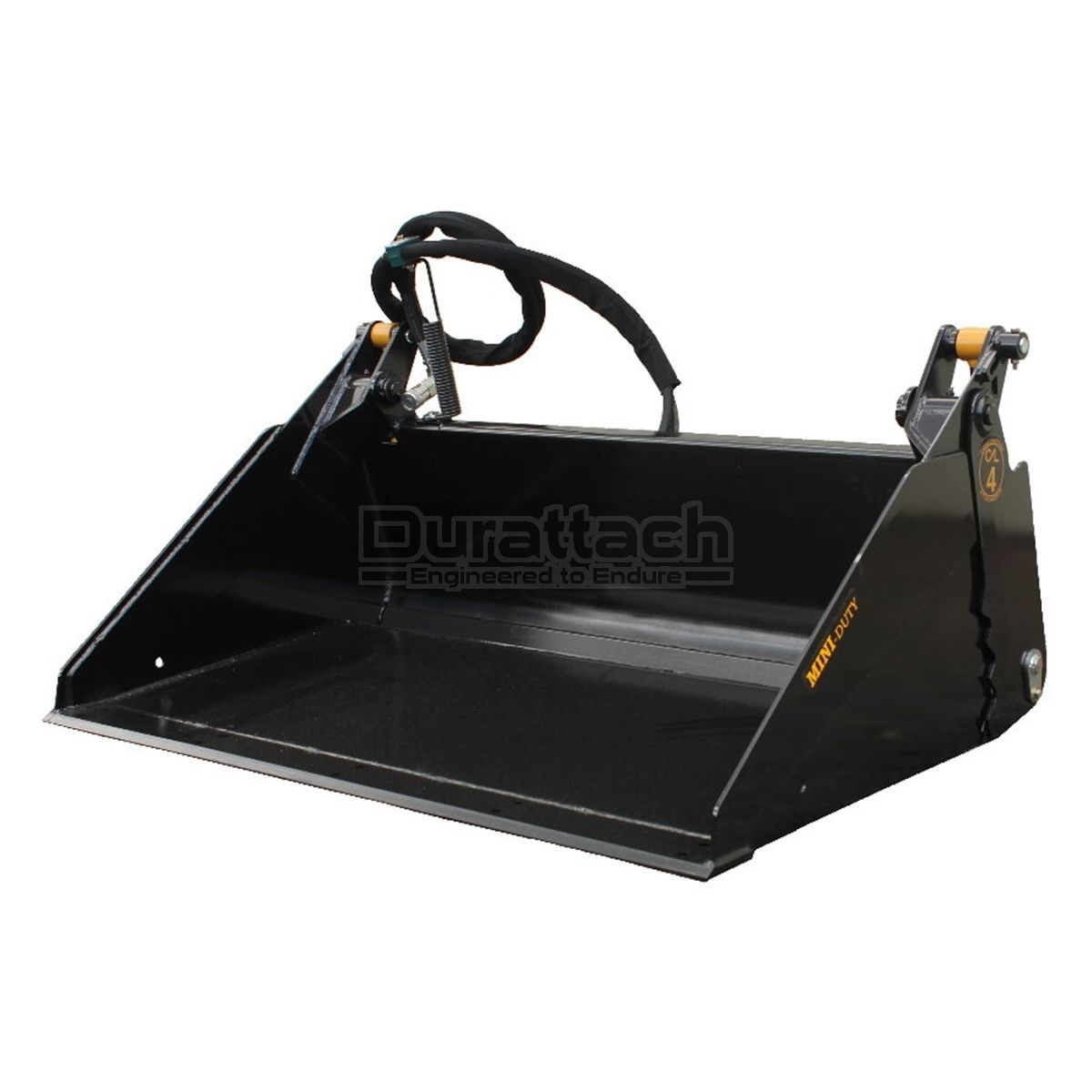

54" Construction Attachments Mini 4-in-1 Multi-Purpose Compact Bucket Model 1MPMN54
This bucket is specifically designed to fit ride-on, walk behind, subcompact tractors, mini skid steers and track loaders, giving you the functionality you need without sacrificing lift capacity as you would when using too large of an attachment for your machine.
Features:
Radius moldboard for improved material loading and
unloading
• Pre‐drilled 4” x 1/2“ front cutting edge to accommodate
bolt‐on reversible cutting edge or bolt‐on teeth
• Maximum clamping force: 3,600 LBS @ 3,000 psi
Cylinder Bore: 2.25”
Cylinder Rod Diameter: 1.25”
Cylinder Stroke: 7.122”
This bucket is specifically designed to fit ride-on, walk behind, subcompact tractors, mini skid steers and track loaders, giving you the functionality you need without sacrificing lift capacity as you would when using too large of an attachment for your machine.
Features:
Radius moldboard for improved material loading and
unloading
• Pre‐drilled 4” x 1/2“ front cutting edge to accommodate
bolt‐on reversible cutting edge or bolt‐on teeth
• Maximum clamping force: 3,600 LBS @ 3,000 psi
Cylinder Bore: 2.25”
Cylinder Rod Diameter: 1.25”
Cylinder Stroke: 7.122”
| SKU | CON-1MPMN54 |
|---|---|
| Weight | 510 lbs |
| Identifier | CON-7131 |
| Model | 1MPMN54 |
| Width - Overall | 54" (137 cm) |
| Width - Working | 54" (137 cm) |
| Capacity, Heaped | 10 cubic feet (.28 cubic meters) |
| Maximum Opening | 26.75" (68 cm) |
| Hydraulic Hoses/Couplers | Hoses & Couplers Included |
| Cutting Edge | Hardened Steel Welded-On Standard, Bolt-On Optional |
| Teeth | Optional Bolt-On Bucket Teeth or Tooth Bar |
| Hitch Connection Type | Mini Skid Steer Connection (Others Optional) |
| Color | Black Standard (Other Colors Available/Optional) |
| Manufacturer | Construction Attachments |
