60" Construction Attachments Compact Tractor Snow Blade Model 1SNBCMP60MS

In Stock
SKU
CON-1SNBCMP60MS
Rating:
100 % of 100
Compare at: $3,125.00 Our Price: $2,969.00
Compare at : $3,125.00
Our Price : $2,969.00
SKU : CON-1SNBCMP60MS
Identifier : CON-1038
Availability :

Ships in Approximately 2-3 Weeks. May be subject to unexpected delays.

Maximum number of characters: 25

60" Construction Attachments Compact Tractor Snow Blade Model 1SNBCMP60MS
60" Construction Attachments Compact Tractor Snow Blade Model 1SNBCMP60MS 60" Construction Attachments Compact Tractor Snow Blade Model 1SNBCMP60MS 60" Construction Attachments Compact Tractor Snow Blade Model 1SNBCMP60MS 60" Construction Attachments Compact Tractor Snow Blade Model 1SNBCMP60MS 60" Construction Attachments Compact Tractor Snow Blade Model 1SNBCMP60MS 60" Construction Attachments Compact Tractor Snow Blade Model 1SNBCMP60MS 60" Construction Attachments Compact Tractor Snow Blade Model 1SNBCMP60MS

Images are representative but may vary from actual product and/or show optional features.

SAVE $156.00

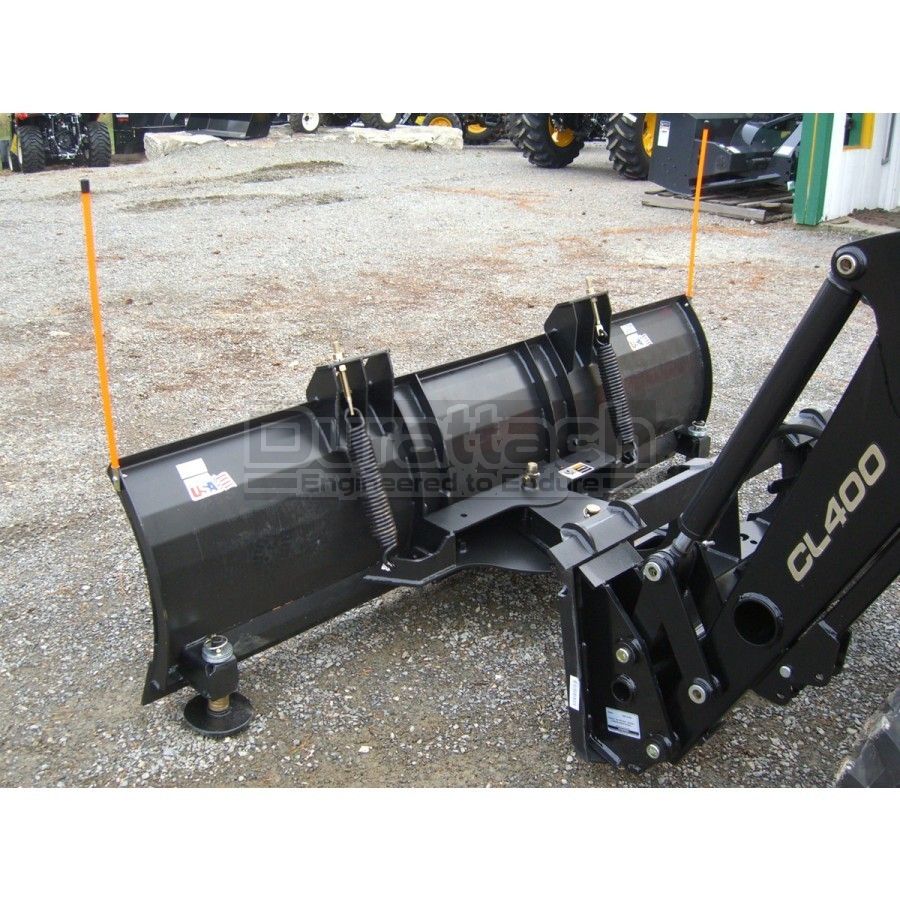

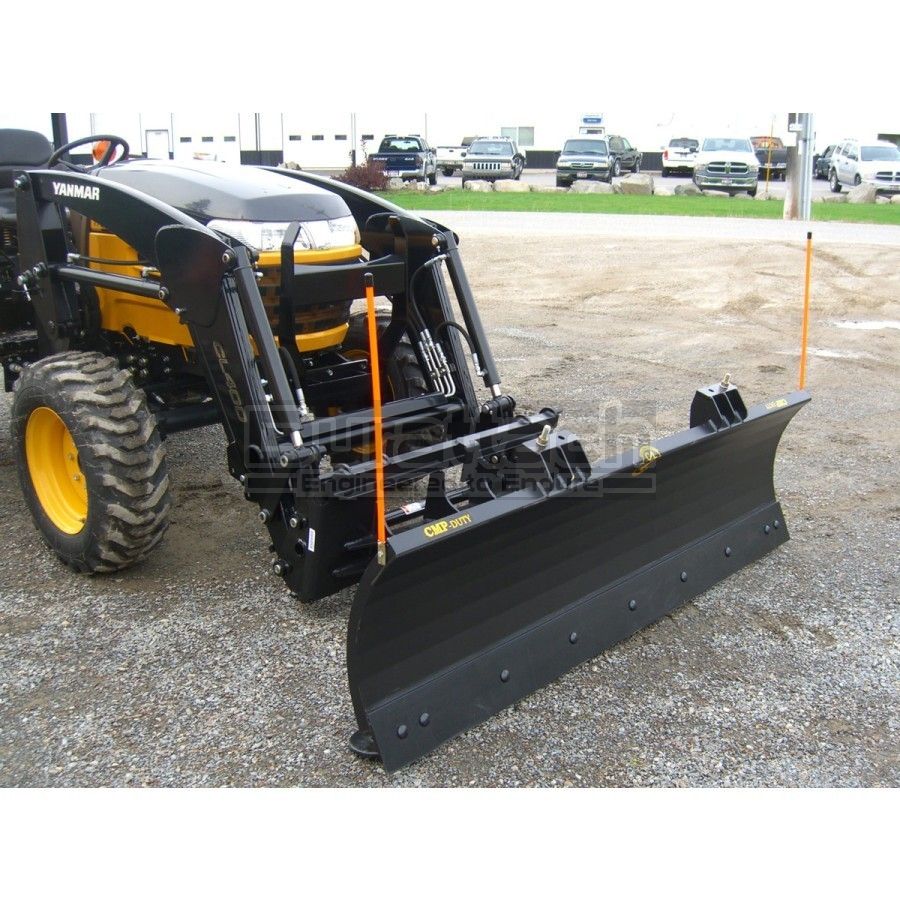

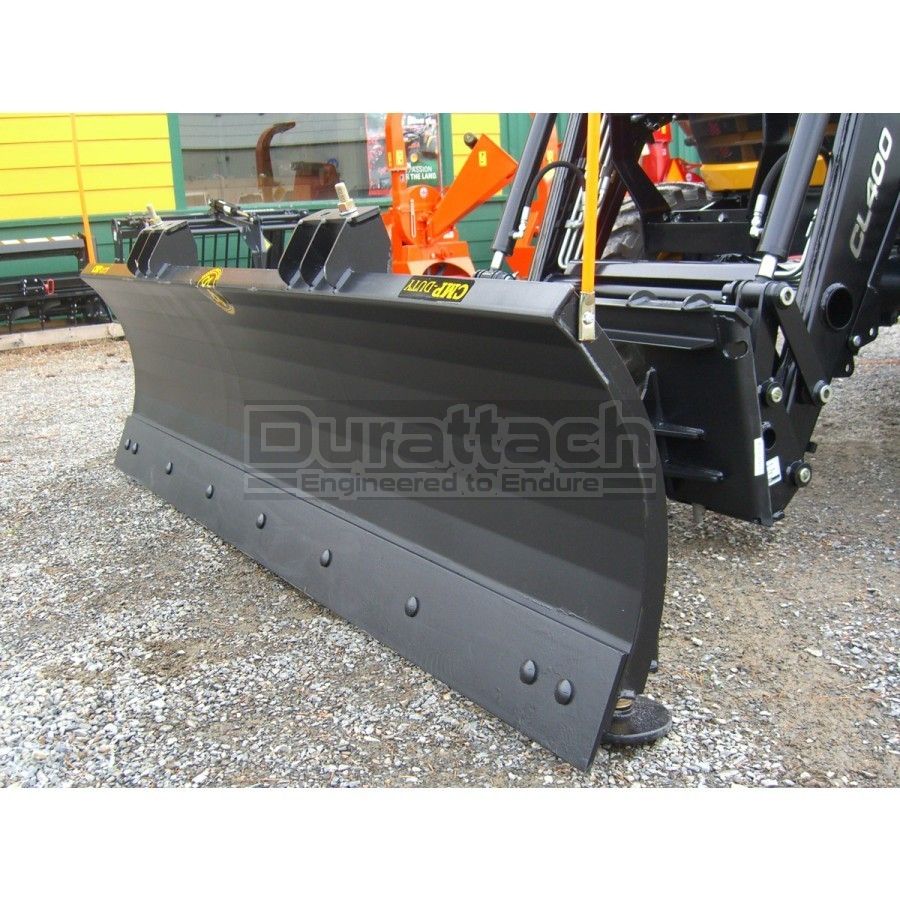

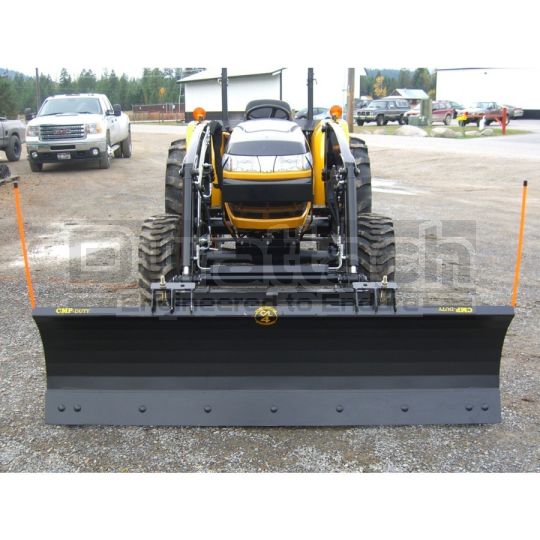

Designed for Tractors and Skid Steer Loaders up to 50 horsepower. This is a well-built, standard duty blade that will handle most general purpose snow plowing applications.

Features:
* Four-Way blade with up to 30 degree angle left or right
* Available in manual or hydraulic angle option
* Manual snow blade can be easily converted to hydraulic by installing hose assembly and crossover relieve, and by adding hydraulic cylinders
* Requires no cutting or welding to convert
* Replaceable reversible bolt-on cutting edge available in rubber or steel
* Spring-trip moldboard standard on all models
* Standard equipment includes high-visibility snow guides
* Snow guides provide operator visibility and certainty of edge position even in low light and poor visibility conditions
* Adjustable skid shoes standard. Set blade at a preset height to prevent gouging and prolongs life blade
* Optional crossover relief valve to protect and extend cylinder life may be factory installed or added at any time using the standard hose assembly

IMPORTANT: If equipped with Hydraulic Angle a
3rd Function Hydraulic Valve is Required for operation.


SKID STEER COMPATIBLE MOUNTING BRACKETS ARE STANDARD, but this snow blade can be equipped with brackets to match any loader style. Call 208-717-9671 to discuss your needs.
More Information
SKU CON-1SNBCMP60MS
Weight 382 lbs
Identifier CON-1038
Model 1SNBCMP60MS
Horsepower Recommended 20 - 50 HP (14.9 - 37 KW)
Width - Overall 60" (5 Feet; 152 cm)
Width - Working 60" (5 Feet; 152 cm)
Width - Fully Angled 52" (132 cm)
Moldboard 22-1/2" Tall (57 cm)
Spring Trip Spring Trip Moldboard (Full Blade)
Angle Manual Angle Adjustment Standard; Hydraulic Optional
Tilt N/A
Blade End Guide Markers Included Standard
Hydraulic Cylinder(s) Two (2) Hydraulic Angle Cylinders, Optional
3rd Function Hydraulic Valve Required for Hydraulic Angle
Skid Shoes Adjustable and Replaceable, Included
Cutting Edge Bolt-On, Reversible, Replaceable, Included
Hitch Connection Type Skid Steer Quick-Attach Standard (Others Optional)
Color Black
Manufacturer Construction Attachments
