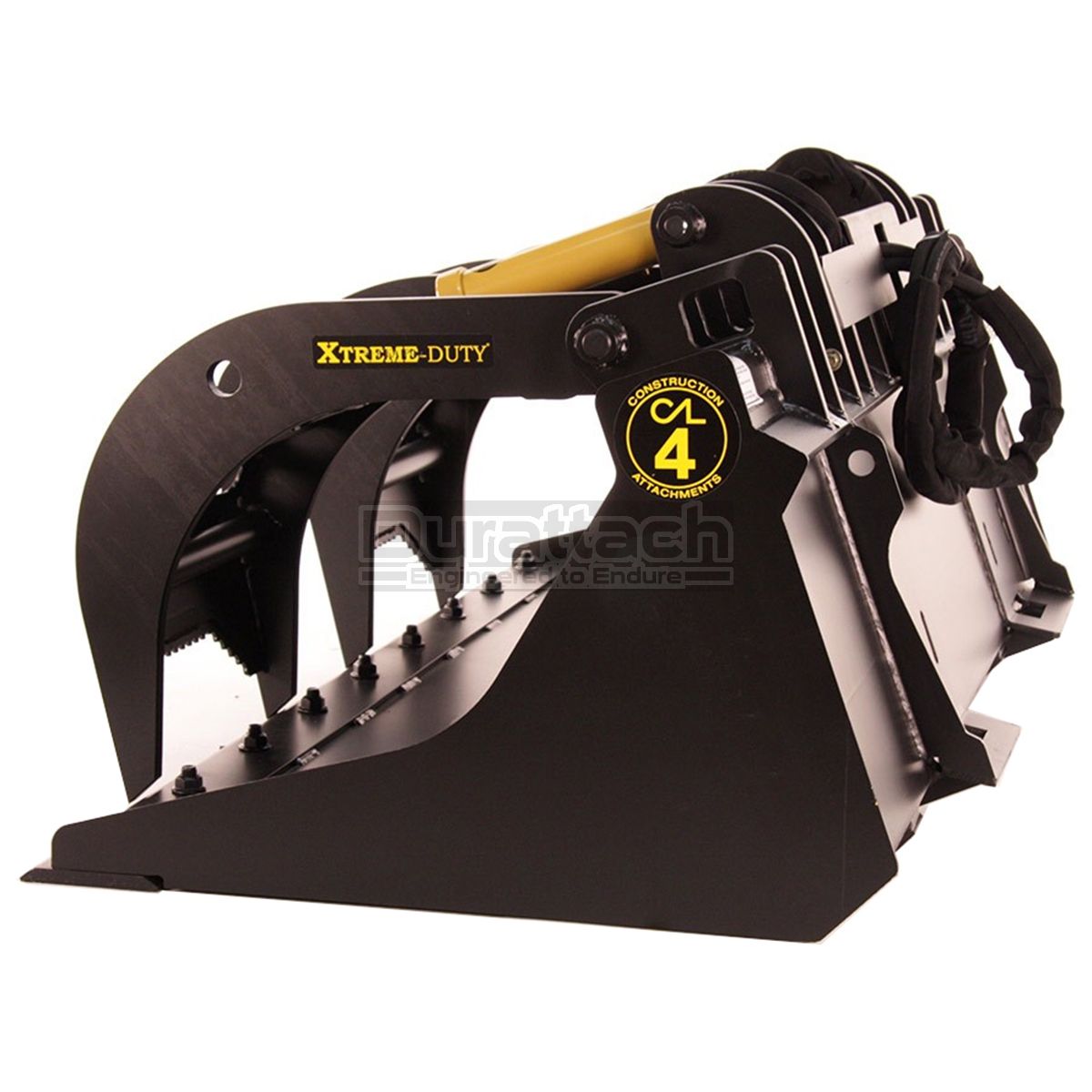

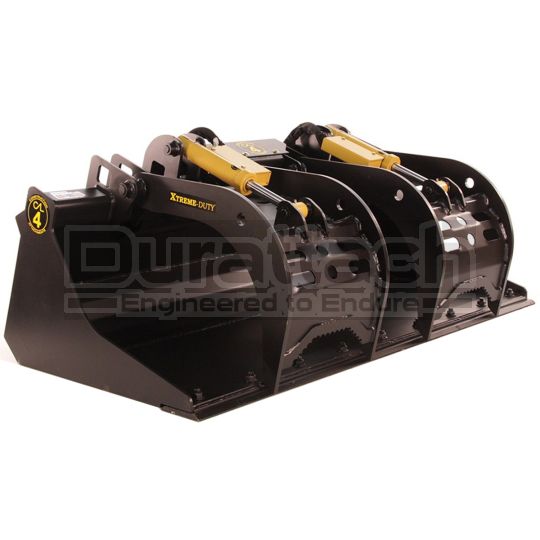

60" Construction Attachments "Worx Duty" Grapple Bucket Model 1GBWX60
| Compare at | : | $4,971.00 | |
|---|---|---|---|
| Our Price | : | $4,421.00 | |
| SKU | : | CON-1GBWX60 | |
| Identifier | : | CON-1547 | |
| Availability | : |
Ships in Approximately 10-15 Business Days. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features or colors.
Made in USA.
This Worx Duty Grapple Bucket is a heavy duty attachment designed for skid steer loaders and compact track loaders up to 100 horsepower. This attachment enables you to move hard-to-handle materials, brush and other awkward debris quickly and easily. Grapple has up to 44" of fully usable opening. This grapple bucket is available in 60", 67", 73" and 82" models.
Features:
* Grapple opening of 44" fully usable
* Standard 5/8" x 6" bolt-on reversible cutting edge
* Maximum clamping force of 3,600 lbs @ 3,000 psi
* A pair of 3/16" load transfer plates eliminates flex between the moldboard and hinge frame
* Radius moldboard for strength and easy unloading
*1/2" lid tines on 1-1/4" pivot pins with robust broken-out lid decks for strength
* Covered hoses for full protection in harsh environments
* Includes hydraulic hoses and flat-faced couplers
This Worx Duty Grapple Bucket is a heavy duty attachment designed for skid steer loaders and compact track loaders up to 100 horsepower. This attachment enables you to move hard-to-handle materials, brush and other awkward debris quickly and easily. Grapple has up to 44" of fully usable opening. This grapple bucket is available in 60", 67", 73" and 82" models.
Features:
* Grapple opening of 44" fully usable
* Standard 5/8" x 6" bolt-on reversible cutting edge
* Maximum clamping force of 3,600 lbs @ 3,000 psi
* A pair of 3/16" load transfer plates eliminates flex between the moldboard and hinge frame
* Radius moldboard for strength and easy unloading
*1/2" lid tines on 1-1/4" pivot pins with robust broken-out lid decks for strength
* Covered hoses for full protection in harsh environments
* Includes hydraulic hoses and flat-faced couplers
| SKU | CON-1GBWX60 |
|---|---|
| Weight | 915 lbs |
| Identifier | CON-1547 |
| Model | 1GBWX60 |
| Horsepower Recommended | Up to 100 HP (74.6 KW) Rubber Tire Host Machines; 80HP (59.7 KW) Rubber Track Host Machines |
| Width - Overall | 60" (5 Feet; 152 cm) Non-Hydraulic; 62 Inches (157 cm) Hydraulic |
| Width - Working | 60" (5 Feet; 152 cm) |

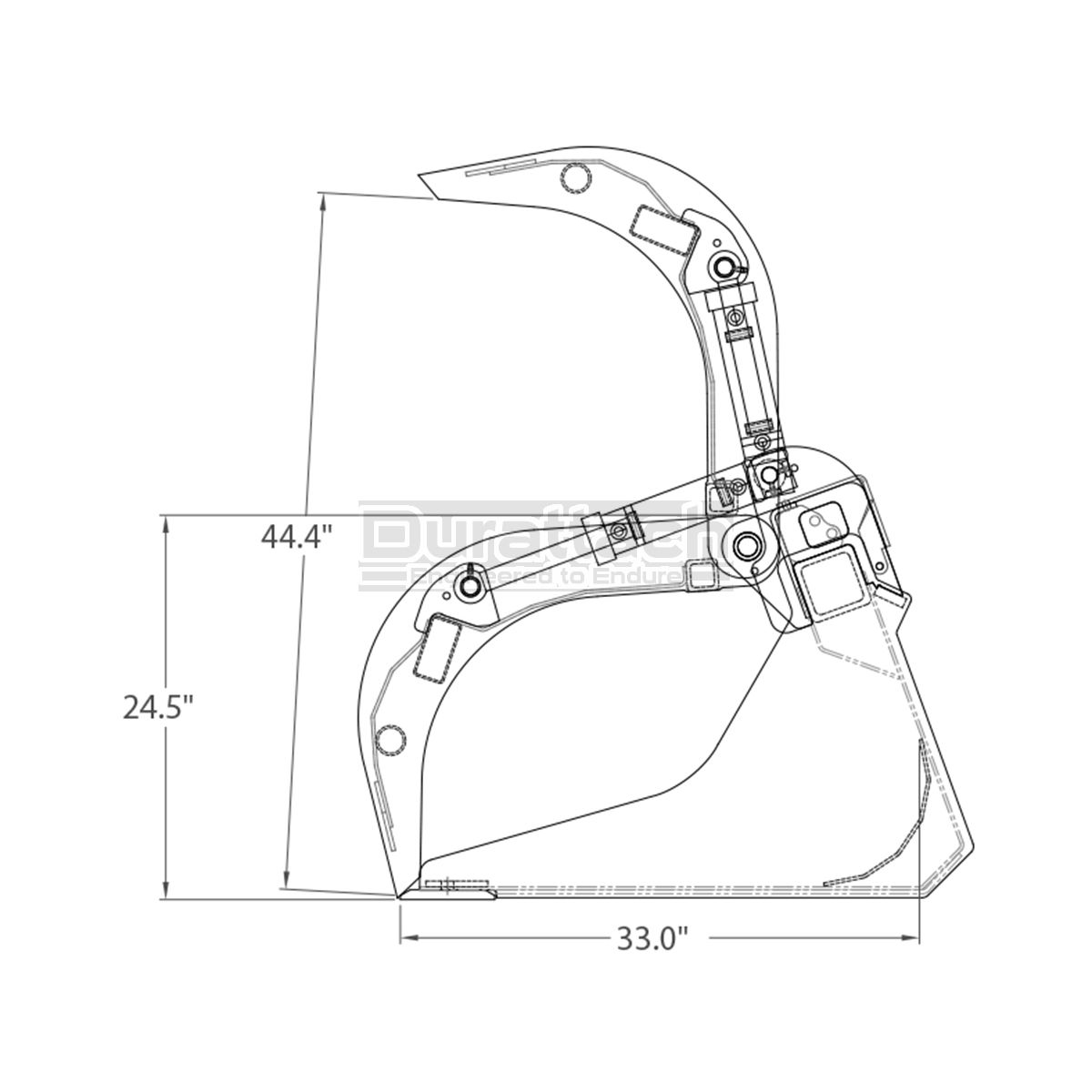

| Maximum Opening | 44" (112 cm) |
| Cutting Edge | 5/8" x 6" Bolt-On / Reversible / Replaceable, Included |
| Tines / Rods | N/A |
| Teeth | N/A |
| Hydraulic Cylinder(s) | Two (2) Hydraulic Cylinders, Included; 3,600 lbs. @ 3,000 psi |
| Hydraulic Hoses/Couplers | Hydraulic Hoses & Flat-Faced Couplers Included |
| Hitch Connection Type | Skid Steer Quick-Attach Standard (Others Optional) |
| Color | Black (Other Colors Available/Optional) |
| Manufacturer | Construction Attachments |
