60" Phoenix 3-Point Tractor Reverse Rotary Tiller Model T5R-60
| Compare at | : | $3,233.00 | |
|---|---|---|---|
| Our Price | : | $3,071.00 | |
| SKU | : | UNI-PHO-T5R-60 | |
| Identifier | : | PHO-2955 | |
| Availability | : |
Back Ordered. Please contact us or call 208-717-9671 to confirm availability. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features.

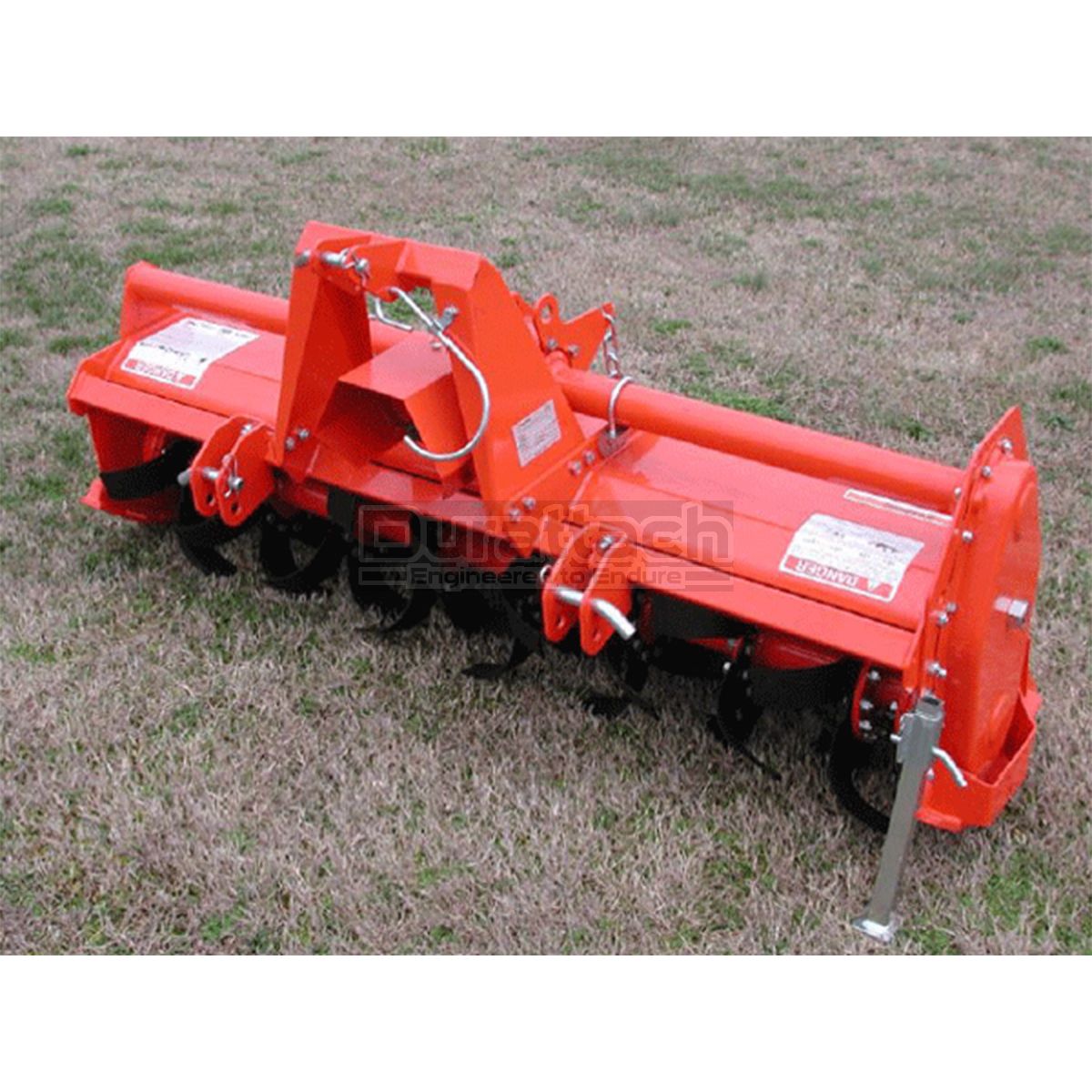

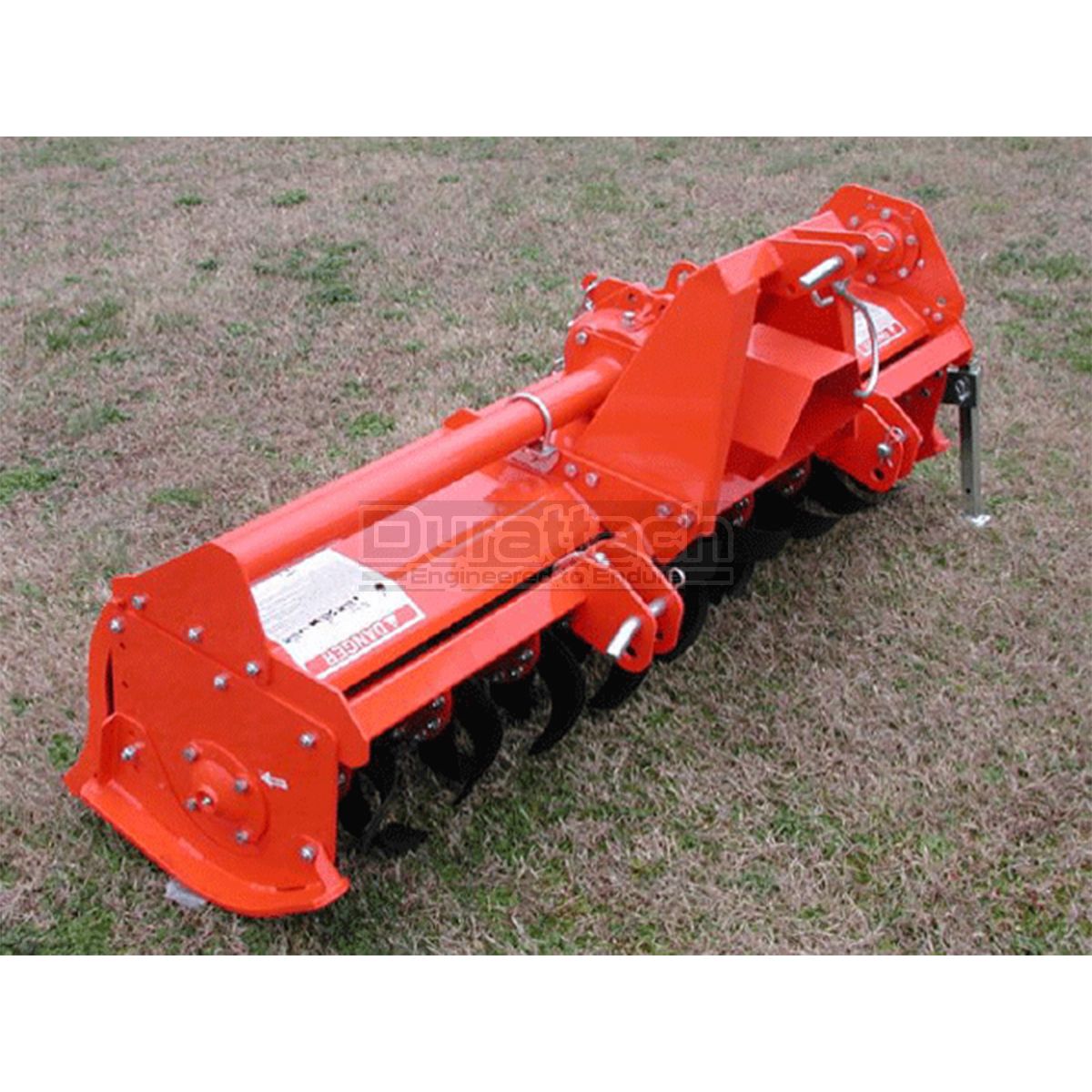

60" Phoenix 3-Point Tractor Reverse Rotary Tiller Model T5R-60
The 10-Series rotary tillers from Phoenix are made to fit tractors from 30-50 HP. Equipped with heavy duty gear drive transmissions, these units guarantee years of trouble free operation under the most demanding applications. Adjustable upper and lower links allow for easy adjustment and proper fitment to your tractor. Of course a high-quality Series 5 PTO friction disc slip clutch is included standard. 6 tines per flange to ensure superior tilling quality. Automotive quality powder coat finish will maintain its new look years after our competitors have faded and rusted.
Features:
* Reverse Tillage Operation
* Six Tines Per Flange
* Includes Front Shield
* Adjustable Lower Links
* Drive Housing Oil Level Site Glass
* Multi-position Heavy Duty Zinc Plated Jack Stand
* Powder Coat Paint Finish Available in Orange
* Heavy Duty Adjustable Drag Board W/Zinc Plated Check Chain
* Standard Eurocardan Series 5 PTO With Slip Clutch
* Heavy Duty Construction with Double Torque Tube and Single Piece Welded Center Hitch
* Shipped with gear oil in center gear box and rotor drive
* Some assembly required
The 10-Series rotary tillers from Phoenix are made to fit tractors from 30-50 HP. Equipped with heavy duty gear drive transmissions, these units guarantee years of trouble free operation under the most demanding applications. Adjustable upper and lower links allow for easy adjustment and proper fitment to your tractor. Of course a high-quality Series 5 PTO friction disc slip clutch is included standard. 6 tines per flange to ensure superior tilling quality. Automotive quality powder coat finish will maintain its new look years after our competitors have faded and rusted.
Features:
* Reverse Tillage Operation
* Six Tines Per Flange
* Includes Front Shield
* Adjustable Lower Links
* Drive Housing Oil Level Site Glass
* Multi-position Heavy Duty Zinc Plated Jack Stand
* Powder Coat Paint Finish Available in Orange
* Heavy Duty Adjustable Drag Board W/Zinc Plated Check Chain
* Standard Eurocardan Series 5 PTO With Slip Clutch
* Heavy Duty Construction with Double Torque Tube and Single Piece Welded Center Hitch
* Shipped with gear oil in center gear box and rotor drive
* Some assembly required
| SKU | UNI-PHO-T5R-60 |
|---|---|
| Weight | 442 lbs |
| Identifier | PHO-2955 |
| Model | T5R-60 |
| Horsepower Recommended | 20 - 35 HP (14.9 - 26.1 KW) |
| Width - Overall | 60" (5 Feet; 152 cm) |
| Width - Working | 60" (5 Feet; 152 cm) |
| Side Shift | N/A |
| Tines / Rods | 42 Total - 6 Blades per Flange; 7 Flanges |
| Tilling Depth | Up to 7" (18 cm) |
| Unit Drive Type | 540 RPM Rear Tractor PTO |
| PTO Shaft | Included, with Heavy Duty Slip Clutch Protection |
| Rotor Shaft Drive Type | Gear Driven |
| Skid Shoes | Adjustable and Replaceable, Included |
| Parking Stand | Included Standard |
| Hitch Connection Type | Category 1, 3-Point Hitch |
| Color | Orange |
| Manufacturer | Phoenix |
