67" Construction Attachments "Worx Duty" Grapple Bucket Model 1GBWX67

Availability: Ships in approximately 7-10 Business Days.

SKU:CON-1GBWX67

Compare at: $2,819.00

Our Price: $2,621.67

Compare at: $2,819.00

Our Price: $2,621.67

Description

Details



Made in USA.

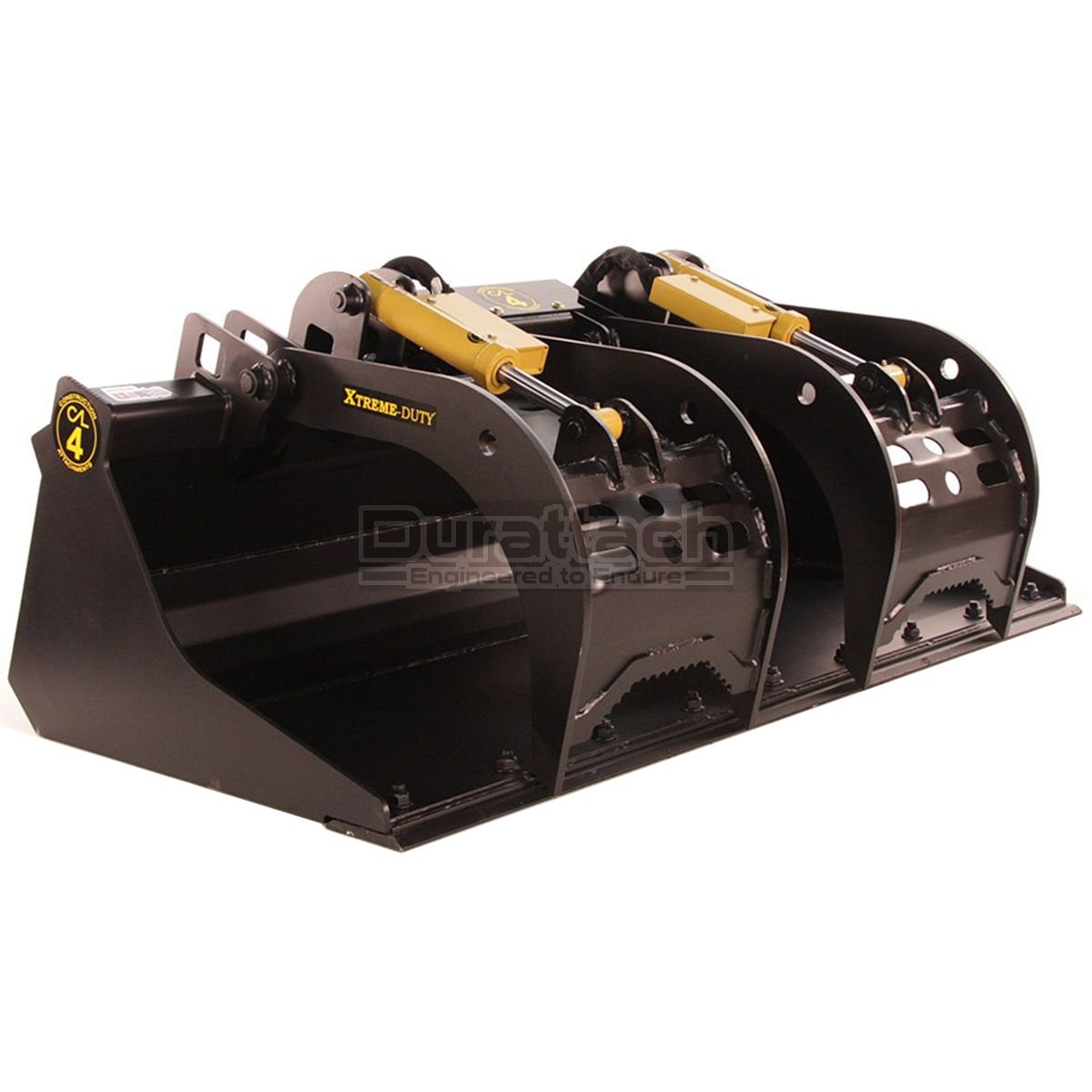

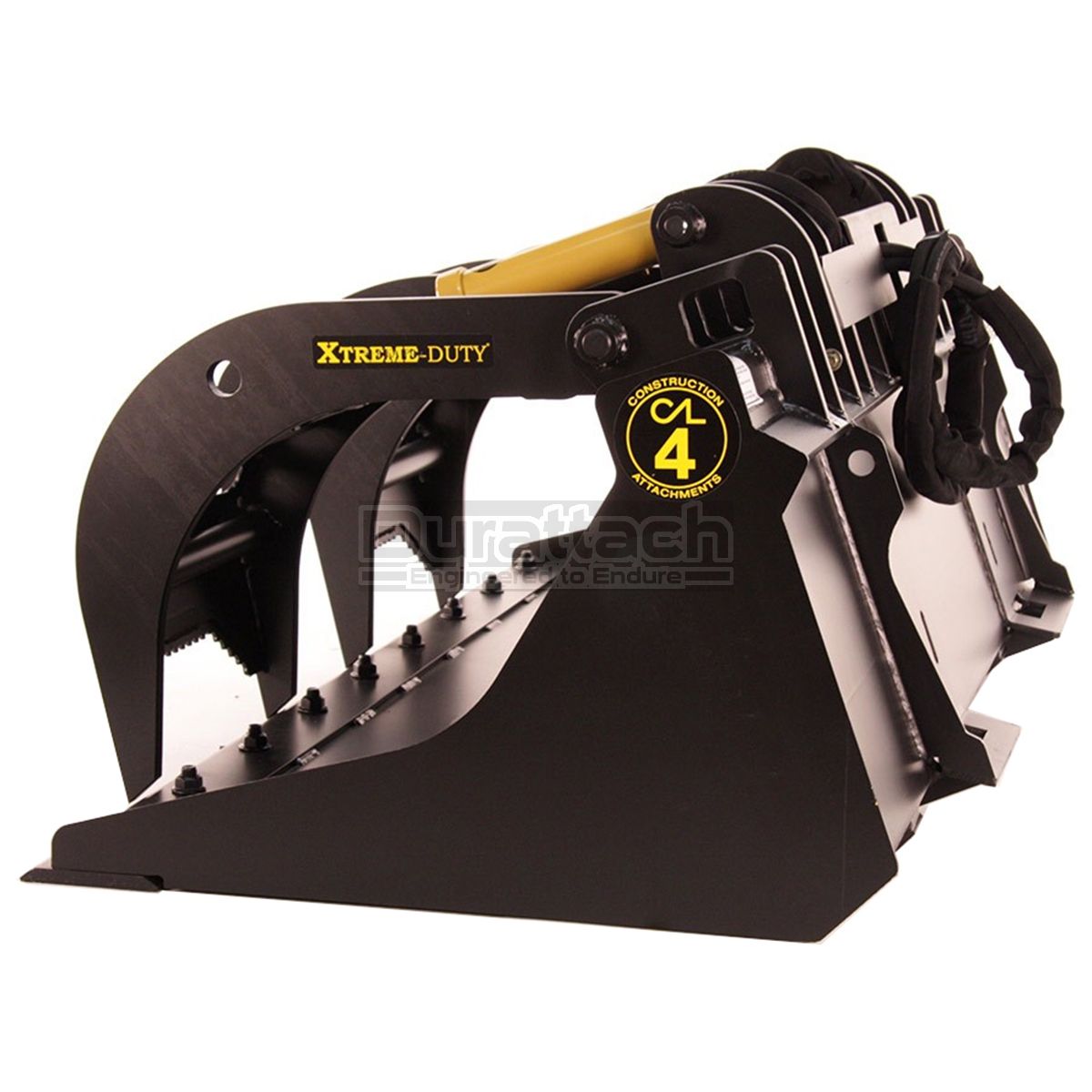

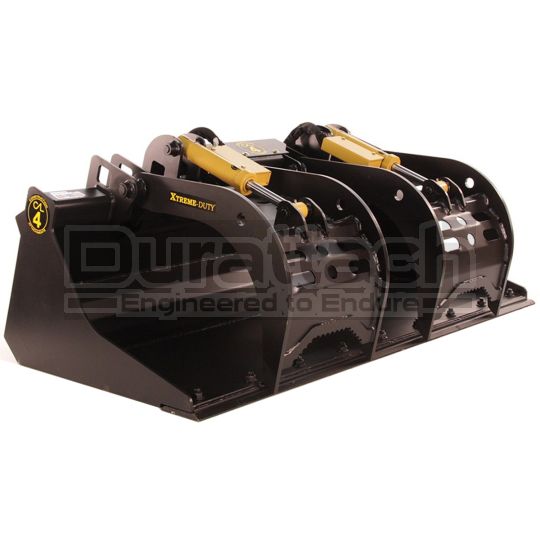

This Worx Duty Grapple Bucket is a heavy duty attachment designed for skid steer loaders and compact track loaders up to 100 horsepower. This attachment enables you to move hard-to-handle materials, brush and other awkward debris quickly and easily. Grapple has up to 44" of fully usable opening. This grapple bucket is available in 60", 67", 73" and 82" models.

Features:
* Grapple opening of 44" fully usable
* Standard 5/8" x 6" bolt-on reversible cutting edge
* Maximum clamping force of 3,600 lbs @ 3,000 psi
* A pair of 3/16" load transfer plates eliminates flex between the moldboard and hinge frame
* Radius moldboard for strength and easy unloading
*1/2" lid tines on 1-1/4" pivot pins with robust broken-out lid decks for strength
* Covered hoses for full protection in harsh environments
* Includes hydraulic hoses and flat-faced couplers

Additional Information

Additional Information

Model1GBWX67
ManufacturerConstruction Attachments
Warranty/media/Construction_Attachments/Construction_Attachments.pdf
Weight1094.0000
Horsepower RecommendedUp to 100 HP (74.6 KW) Rubber Tire Host Machines; 80HP (59.7 KW) Rubber Track Host Machines
Width - Overall67" (170 cm)
Width - Working67" (170 cm)

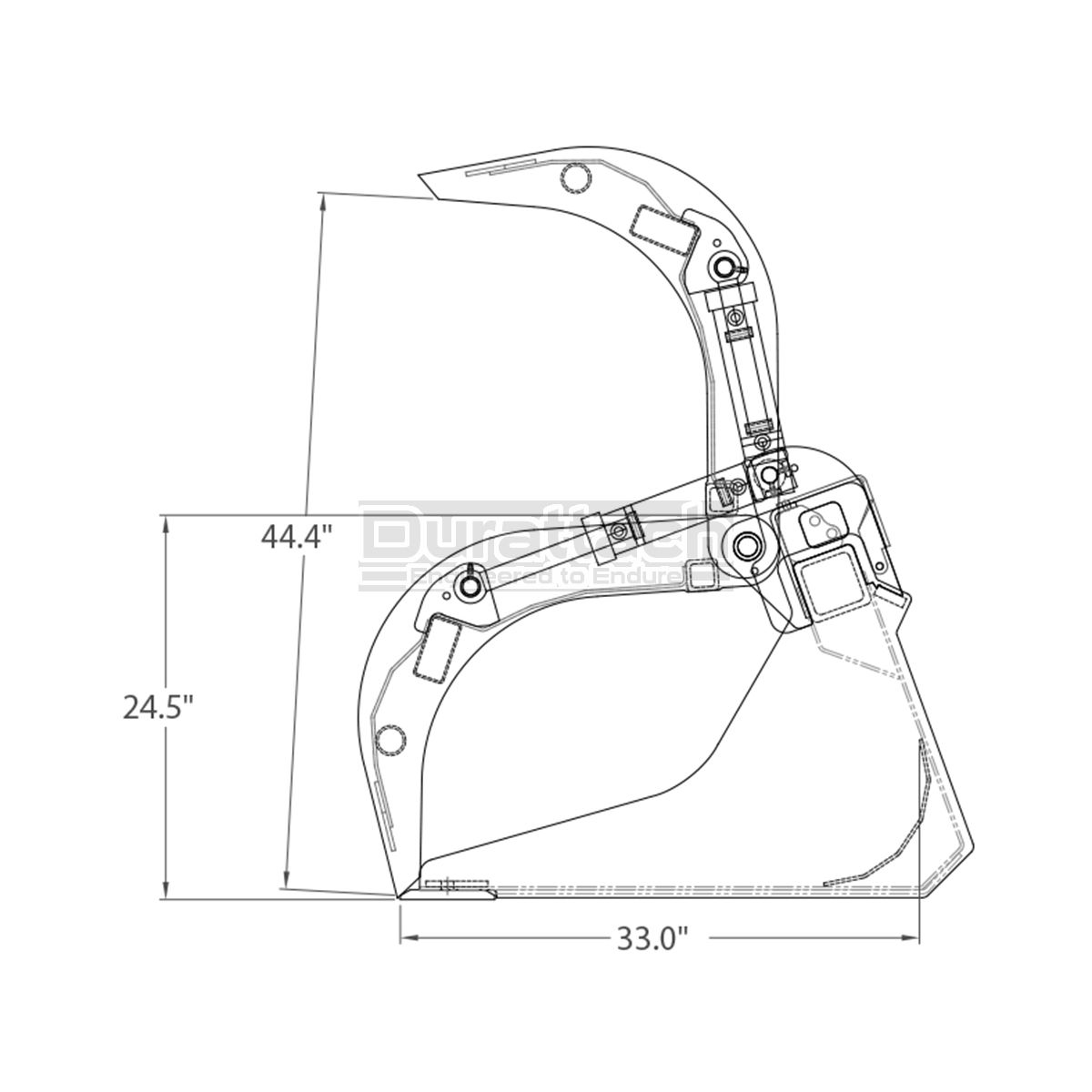

Maximum Opening44" (112 cm)
Cutting Edge5/8" x 6" Bolt-On / Reversible / Replaceable, Included
Tines / RodsN/A
TeethN/A
Hydraulic Cylinder(s)Two (2) Hydraulic Cylinders, Included; 3,600 lbs. @ 3,000 psi
Hydraulic Hoses/CouplersHydraulic Hoses & Flat-Faced Couplers Included
Hitch Connection TypeSkid Steer Quick-Attach Standard (Others Optional)
ColorBlack (Other Colors Available/Optional)
