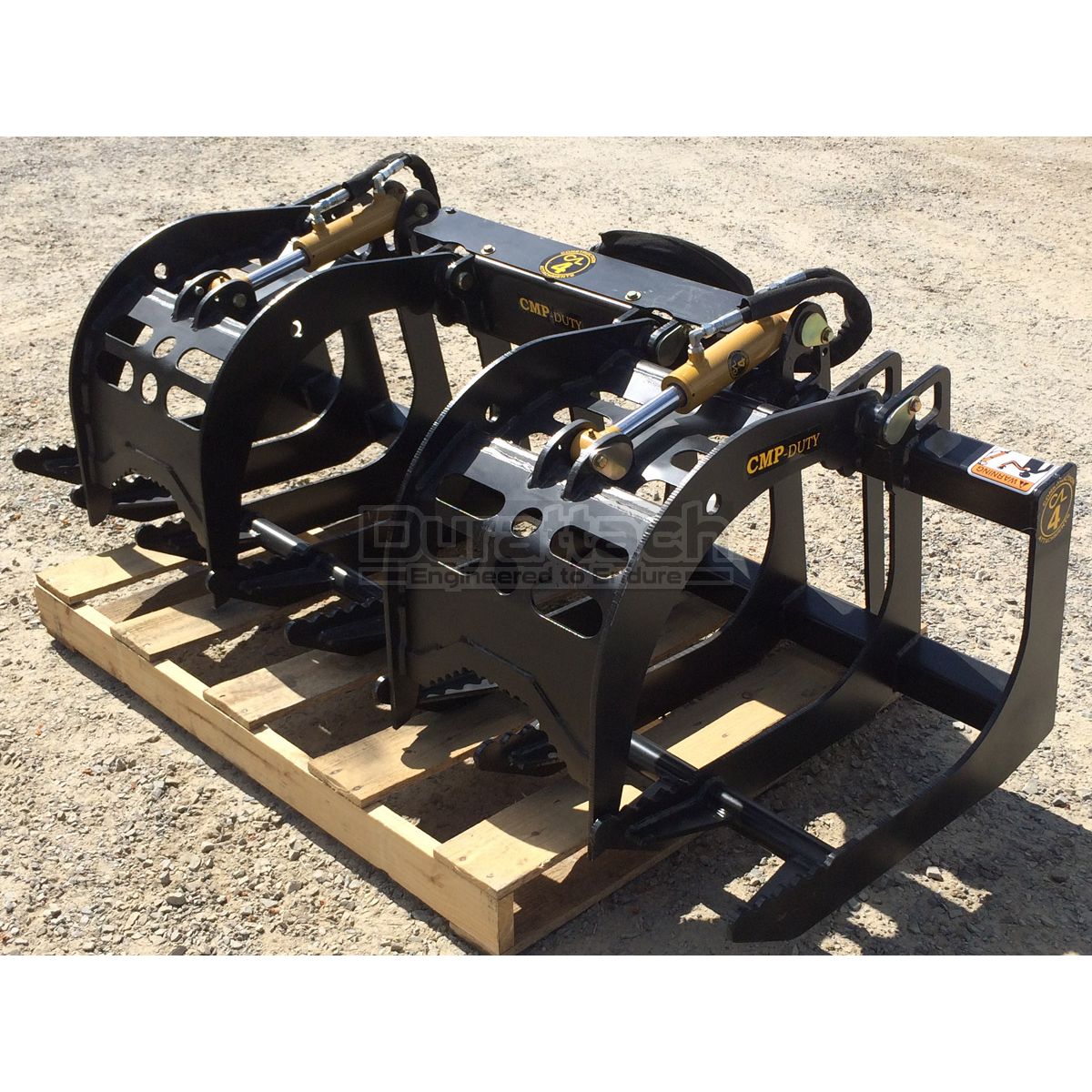

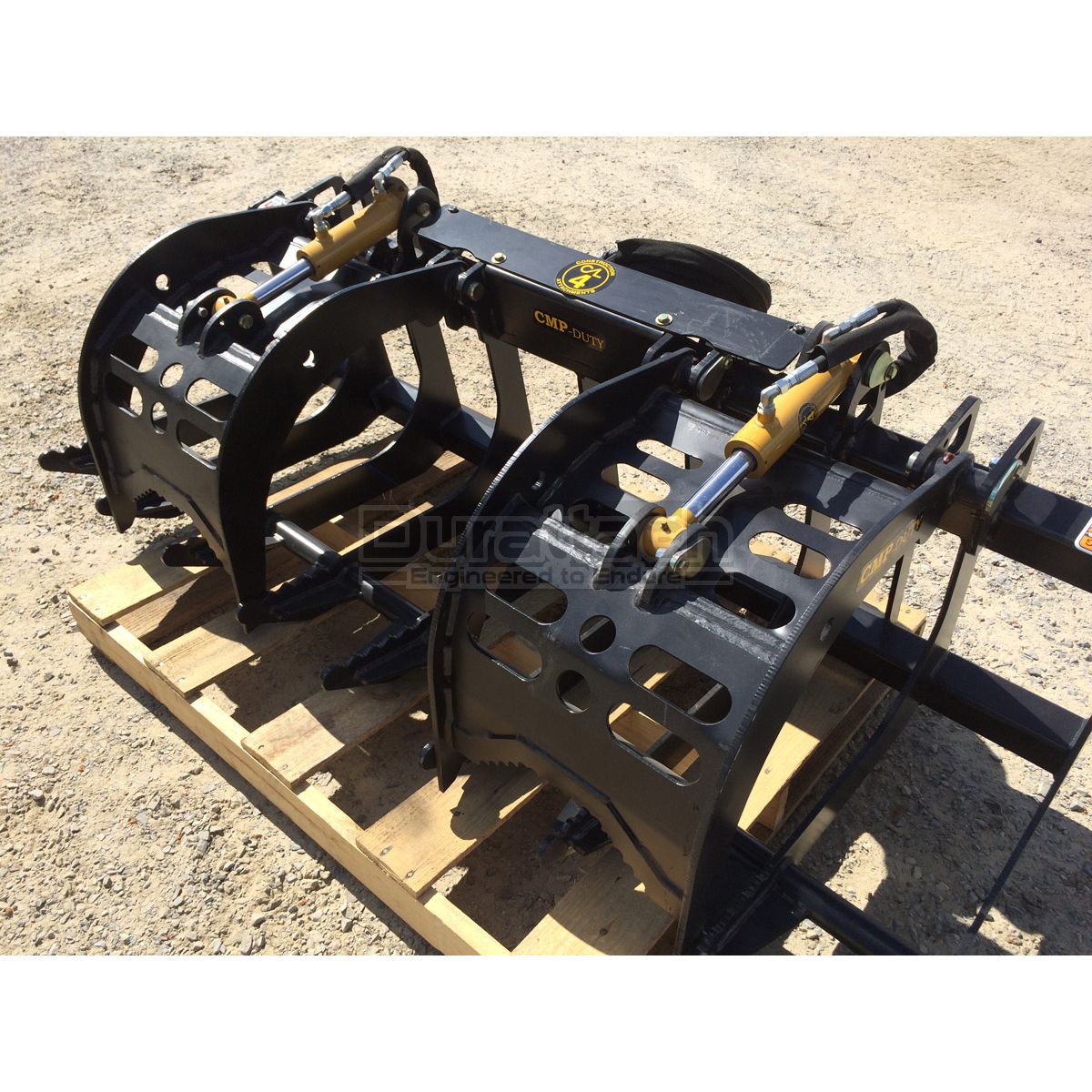

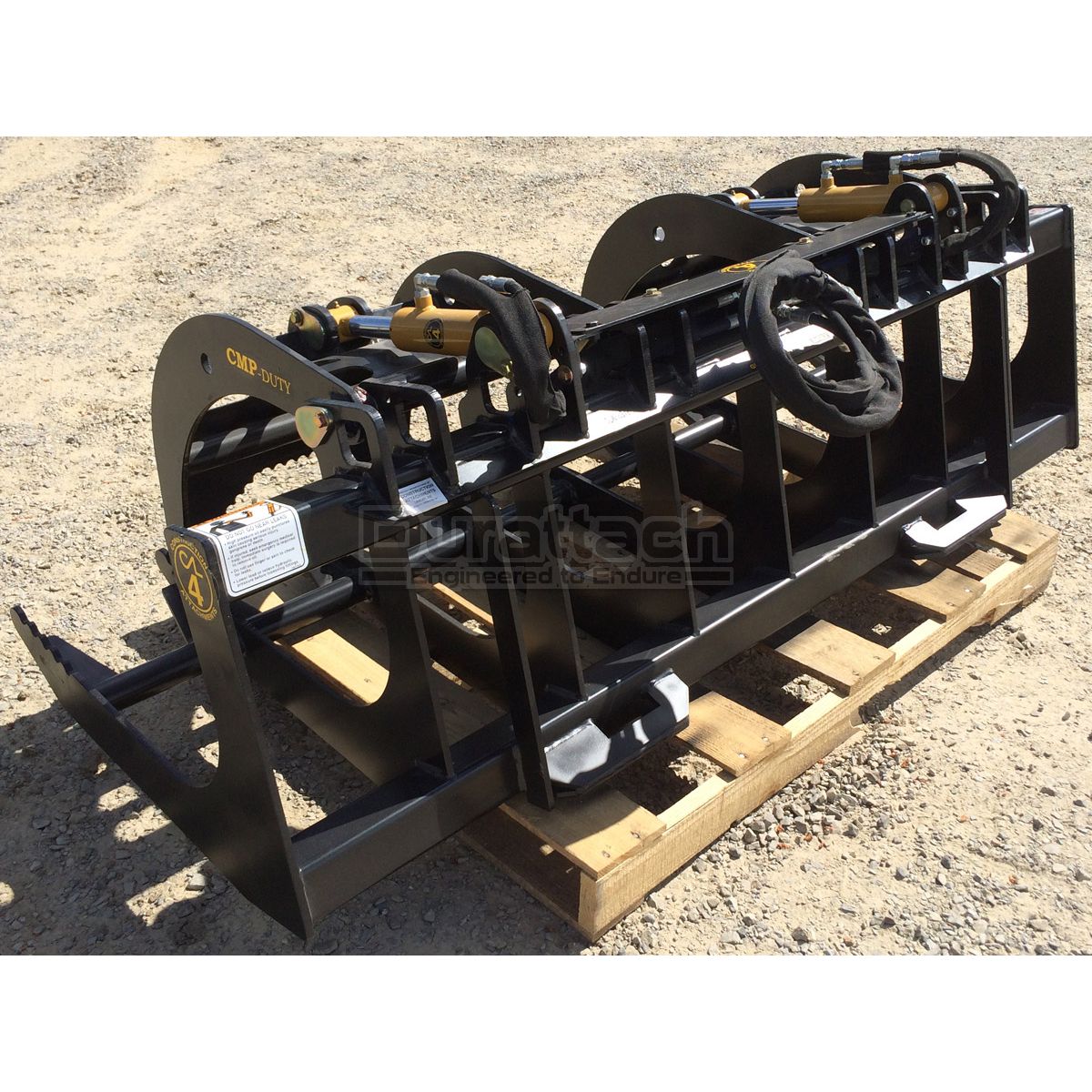

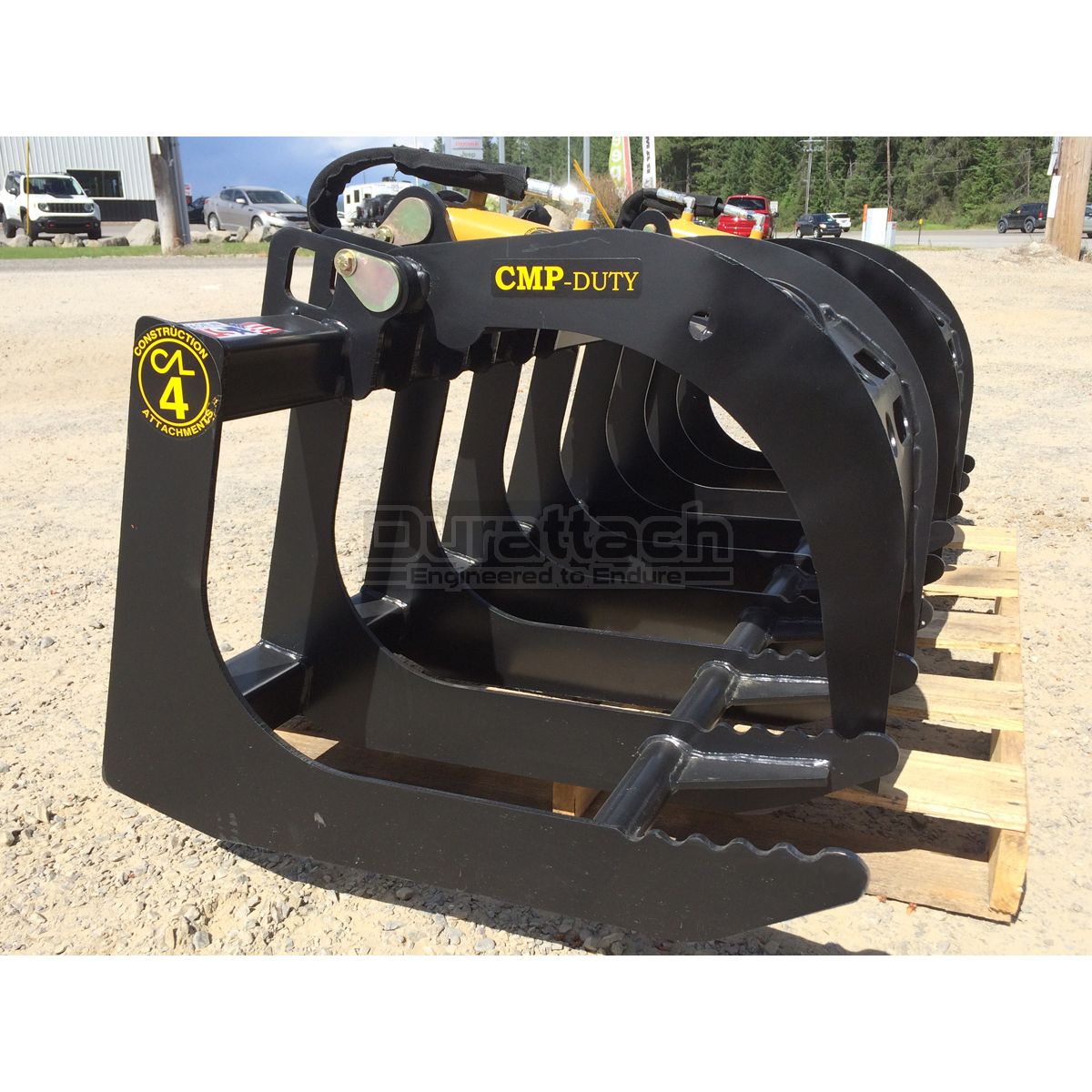

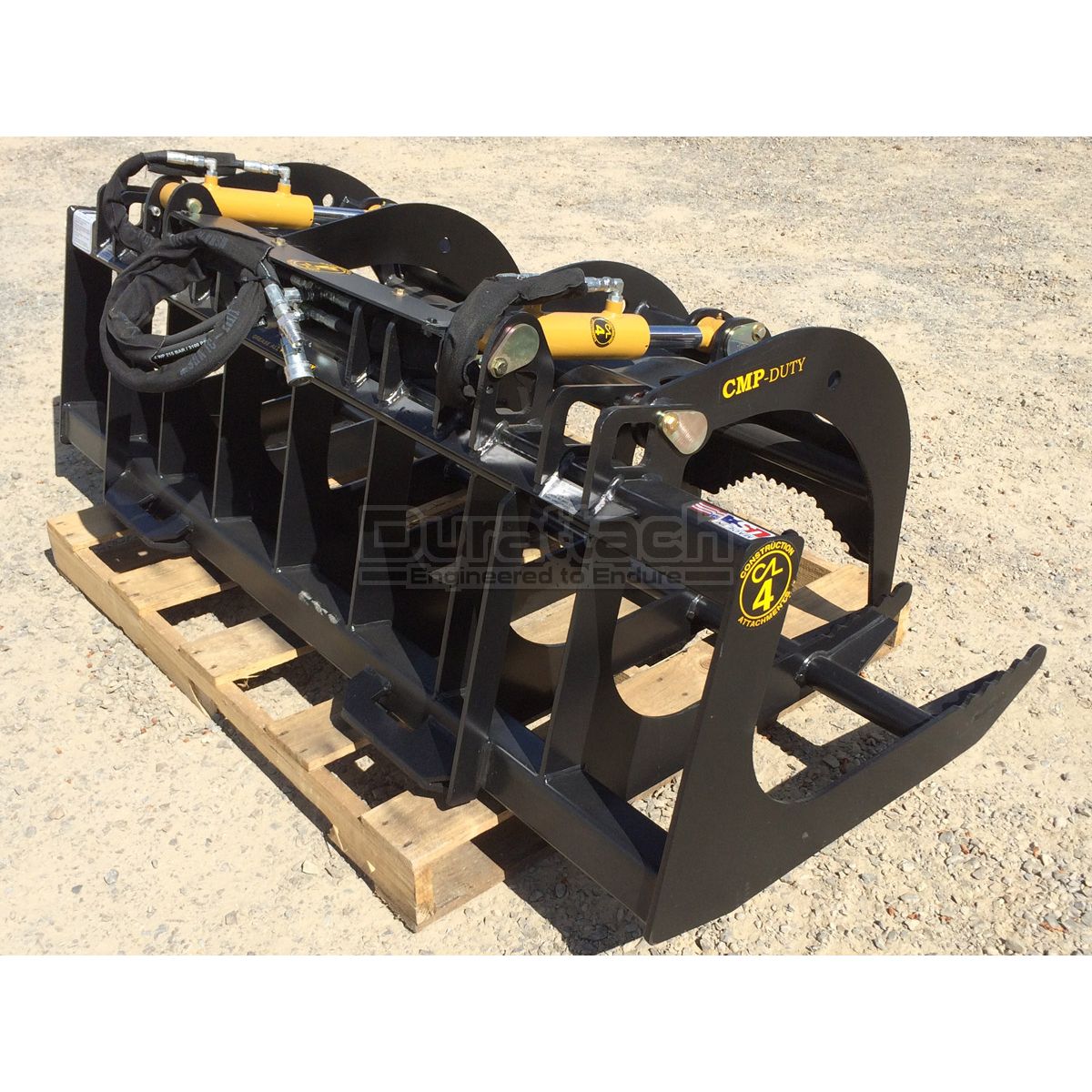

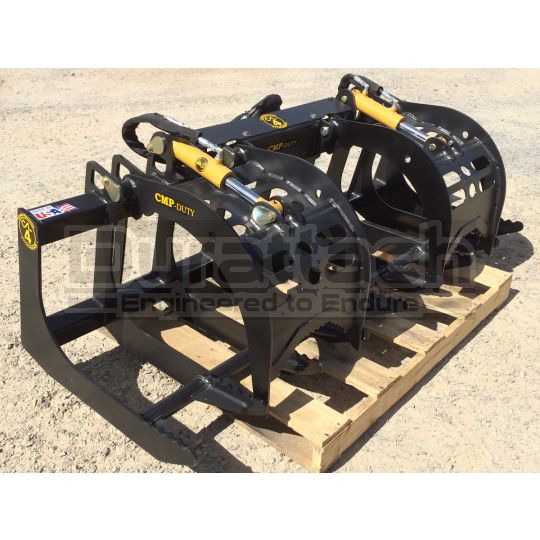

72" Construction Attachments Compact Root & Brush Grapple Model 1RGCMP72
| Compare at | : | $3,618.00 | |
|---|---|---|---|
| Our Price | : | $3,217.00 | |
| SKU | : | CON-1RGCMP72 | |
| Identifier | : | CON-560 | |
| Availability | : |
Ships in Approximately 10-15 Business Days. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features or colors.
Made in USA.
This is an ideal attachment for removal of debris such as rocks and roots, as well as general site clean-up while leaving the soil behind at the job site. Designed specifically for compact tractors. This unit will give you the functionality you need without adding unnecessary additional weight and costing you lift capacity.
Features:
* Designed for compact tractor loaders up to 50 HP.
* Grapple made of high-strength steel for long life and durability.
* Low profile for improved operator visibility.
* Connection hitch designed to match host machine.
* Maximum grapple clamping force: 1,500 lbs @ 2000 psi.
* Large (31") grapple opening to accommodate the most demanding jobs.
* Unique angle of the bulkhead allows perfect access to hydraulic connections when cover is removed and excellent protection for your connections with cover in place.
This is an ideal attachment for removal of debris such as rocks and roots, as well as general site clean-up while leaving the soil behind at the job site. Designed specifically for compact tractors. This unit will give you the functionality you need without adding unnecessary additional weight and costing you lift capacity.
Features:
* Designed for compact tractor loaders up to 50 HP.
* Grapple made of high-strength steel for long life and durability.
* Low profile for improved operator visibility.
* Connection hitch designed to match host machine.
* Maximum grapple clamping force: 1,500 lbs @ 2000 psi.
* Large (31") grapple opening to accommodate the most demanding jobs.
* Unique angle of the bulkhead allows perfect access to hydraulic connections when cover is removed and excellent protection for your connections with cover in place.
| SKU | CON-1RGCMP72 |
|---|---|
| Weight | 582 lbs |
| Identifier | CON-560 |
| Model | 1RGCMP72 |
| Horsepower Recommended | Up to 50 HP (37.3 KW) |
| Width - Overall | 72" (6 Feet; 183 cm) |
| Width - Working | 72" (6 Feet; 183 cm) |
| Maximum Opening | 29-1/2" (75 cm) |
| Cutting Edge | N/A |
| Tines / Rods | 9 Bottom Tines, 3/8" Width |
| Rods / Tines Spacing | 9" (23 cm) (approximate) |
| Teeth | N/A |
| Hydraulic Cylinder(s) | Two (2) Hydraulic Cylinders, Included; 2,500 lbs. @ 2,800 psi |
| Hydraulic Hoses/Couplers | Hoses & Couplers Included |
| Hitch Connection Type | Universal-Style Skid Steer Quick-Attach (Others Optional) |
| Color | Black (Other Colors Available/Optional) |
| Manufacturer | Construction Attachments |
