72" Wallenstein 3-Point Tractor Spring Return Log Grapple Model LXG330S
| Our Price | : |
$9,510.00
Add to Cart for our Best Price |
|
|---|---|---|---|
| SKU | : | ELL-WAL-LXG330S | |
| Identifier | : | WAL-3308 | |
| Availability | : |
Back Ordered. Please contact us or call 208-717-9671 to confirm availability. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features.

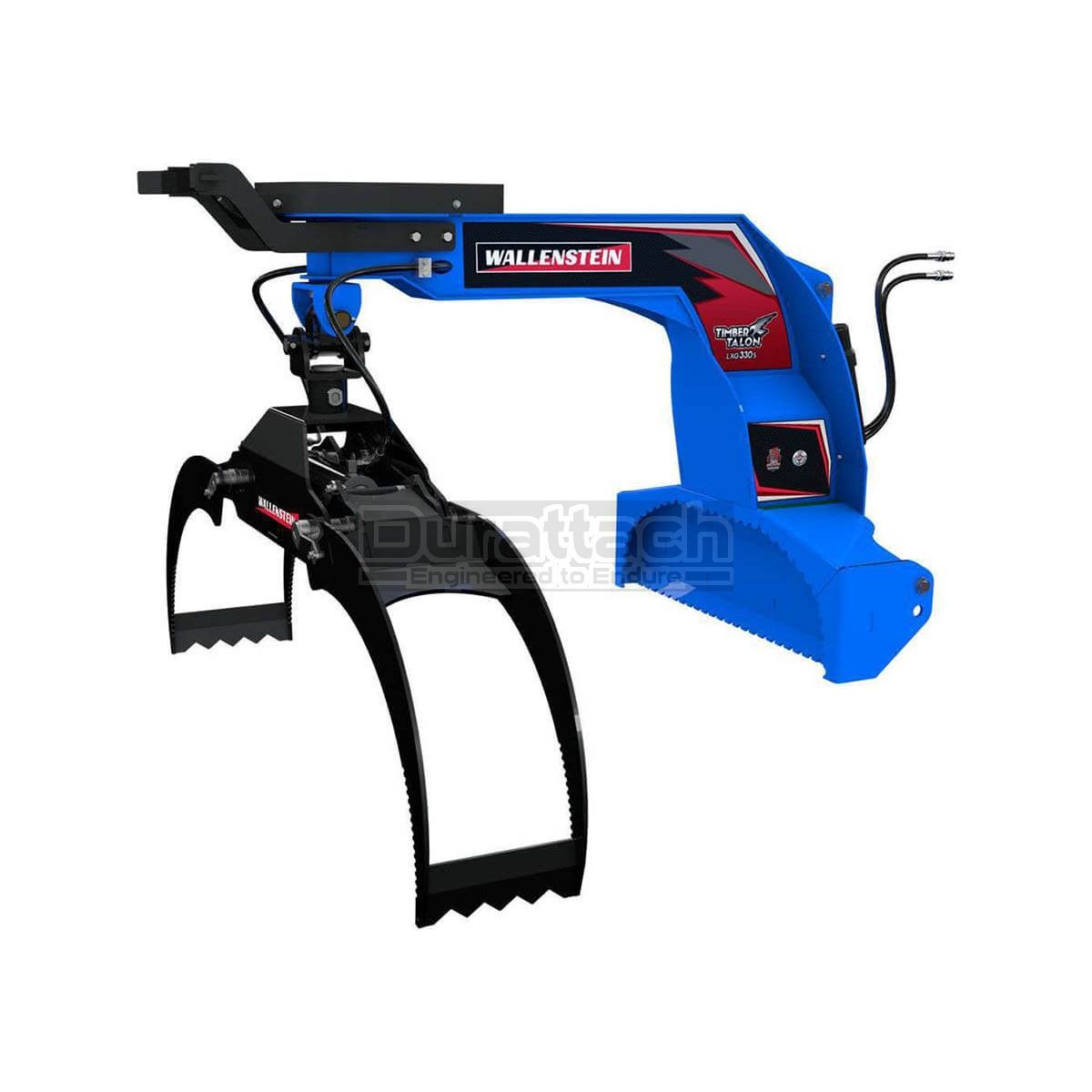

72" Wallenstein 3-Point Tractor Spring Return Log Grapple Model LXG330S
Fast forward your logging productivity with Wallenstein’s Three-Point Hitch Log Grapple for compact tractors. Engineered to withstand the toughest forest conditions, these grapples are perfect partners for farmers, rural property owners, and logging contractors to forward logs out of the woods with confidence.
* Lift Capacity: 4500 lbs (2041 kg)
* Engine HP Range: 55 - 120
* Required Hydraulic Flow: 5 gpm (19 lpm)
* Grapple Opening: 3" - 72" (8 cm - 182 cm)
* Grapple Rotation: 180°
* Clamp Force: 21000 lbs (9525 kg)
* Push Bar Width: 19" (48 cm)
* Rotator/Pivot Rating: 9000 lbs (4082 kg)
* Total Weight: 836 lbs (380 kg)
* Dimensions (LxWxH): 70" x 76" x 56" (178 cm x 193 cm x 143 cm)
* Mounting System: Cat II & III
IMPORTANT: Requires 3rd Function Hydraulic Valve for operation.
Fast forward your logging productivity with Wallenstein’s Three-Point Hitch Log Grapple for compact tractors. Engineered to withstand the toughest forest conditions, these grapples are perfect partners for farmers, rural property owners, and logging contractors to forward logs out of the woods with confidence.
* Lift Capacity: 4500 lbs (2041 kg)
* Engine HP Range: 55 - 120
* Required Hydraulic Flow: 5 gpm (19 lpm)
* Grapple Opening: 3" - 72" (8 cm - 182 cm)
* Grapple Rotation: 180°
* Clamp Force: 21000 lbs (9525 kg)
* Push Bar Width: 19" (48 cm)
* Rotator/Pivot Rating: 9000 lbs (4082 kg)
* Total Weight: 836 lbs (380 kg)
* Dimensions (LxWxH): 70" x 76" x 56" (178 cm x 193 cm x 143 cm)
* Mounting System: Cat II & III
IMPORTANT: Requires 3rd Function Hydraulic Valve for operation.
| SKU | ELL-WAL-LXG330S |
|---|---|
| Weight | 836 lbs |
| Identifier | WAL-3308 |
| Model | LXG330S |
| Product Video | https://www.youtube.com/watch?v=r3dkm_d7s94 |
| Horsepower Recommended | 55 - 120 HP |
| Maximum Opening | 72" (183 cm) |
| Tines / Rods | Heavy Duty Grapple Clamping Tines |
| Hydraulic Cylinder(s) | Single Heavy Duty Hydraulic Clamping Cylinder, Included |
| Hydraulic Hoses/Couplers | Hoses Included, Less Couplers |
| 3rd Function Hydraulic Valve | Required |
| Hitch Connection Type | Category 2/3, 3-Point Hitch |
| Color | Blue (Other Colors Available/Optional) |
| Manufacturer | Wallenstein |
