84" CID Heavy Duty Grapple Rake Model HDGR84

Grapple Rake Attachment

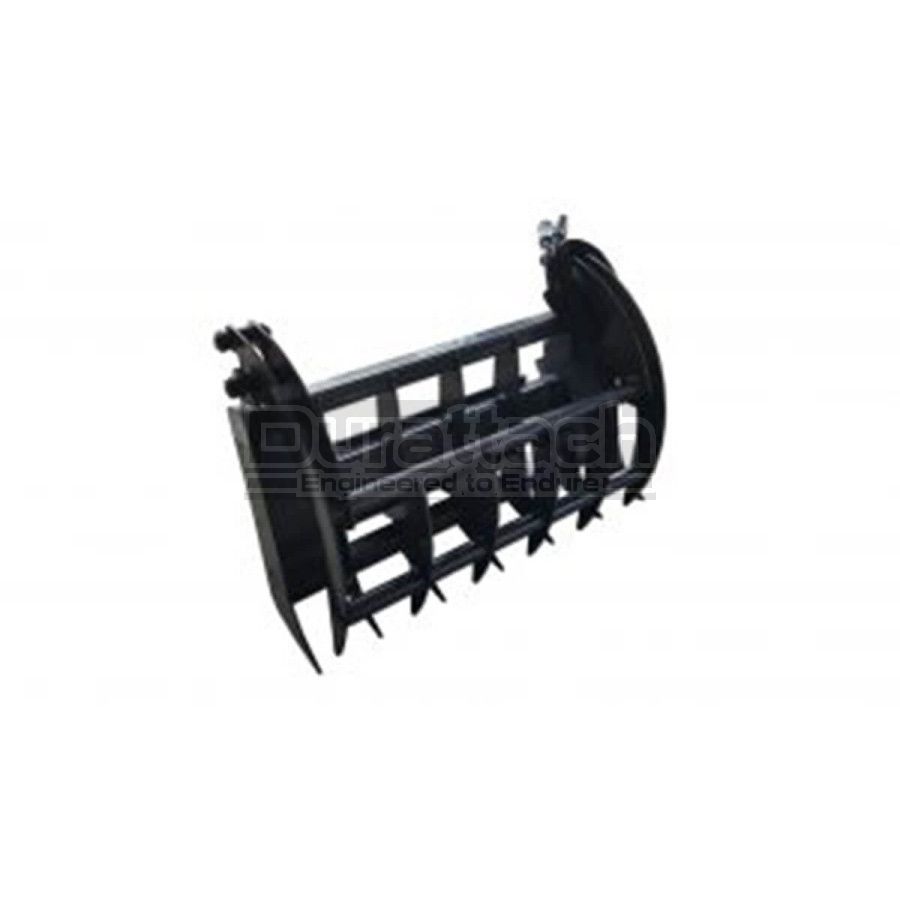

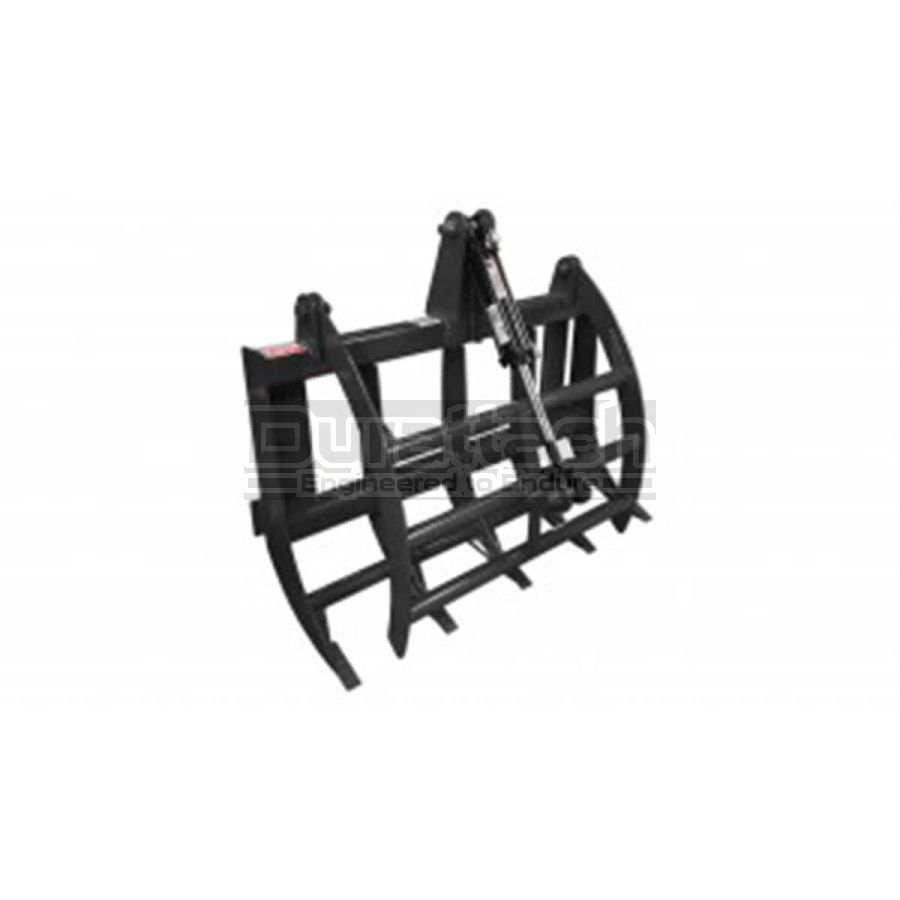

Our Grapple Rake Attachment are one of the best attachments for raking up all kinds of material and debris. The grapple rake attachment is great to use on land clearing jobs and construction job sites. These grapples can be used to load the debris into a dump truck or trailer. The compact tractor grapple rakes have the option of the single cylinder or dual cylinder version.

The shape of the grapple rake also makes it easy to roll debris into tight piles if you are planning to burn it. We also carry a X-treme Duty Grapple Rake that can be viewed here.

X-treme Duty GrappleRake Attachment Compact, Standard and Heavy Duty Skid Steer Grapple Rake Attachment Specs

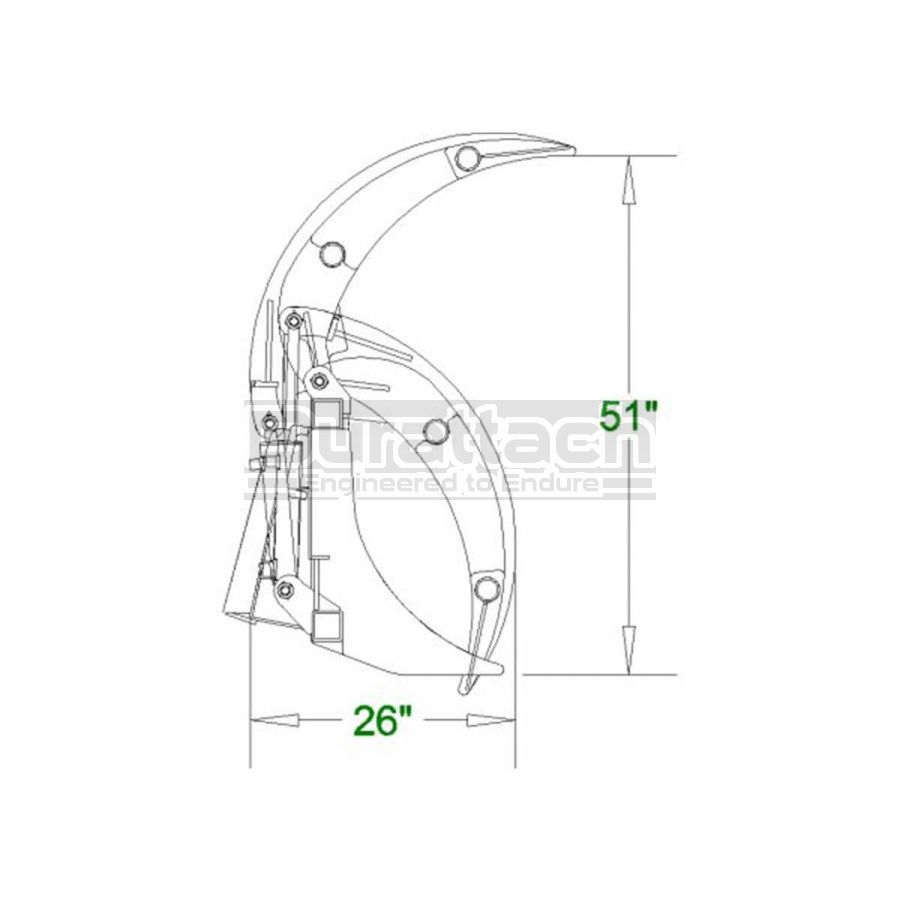

Two independent grapples. We use twin 2” bore by 10” stroke cylinders, rated at 4000 psi to handle the toughest jobs. Our compact tractor grapple rake is for use on tractors less than 40 hp. This Grapple fully opens to 33 inches. Our Standard Duty Grapple Rake are built with 3/8" top quality steel and rated for 35 to 50 hp. Our
Heavy Duty Grapple Rake are built with 1/2" top quality steel and rated for 45 to 65 hp. Both of these Grapples fully opens to 51 inches.

• Available as a single grapple or two independent grapples.
• Unique design makes it easy to roll debris into tight piles.
• Compact Tractor sizes: 48", 54", 60".
• Standard Duty sizes: 63”, 66", 72”.
• Heavy Duty sizes: 63", 72", 81", 84", 96".

Compact, Standard and Heavy Duty Skid Steer Grapple Rake Attachment Extra Protection

Our Compact, Standard and Heavy Duty Skid Steer Grapple Rake Attachment are powder coated and all hoses come with protective sleeves to give the attachment the best protection. All attachments are warranted to be free from defects in materials and workmanship for a period of 12 months.
