84" to 144" Martatch Snow Wing Blade Model MEWSB84X30
In Stock
SKU
ELL-MAR-MEWSB84X30
Compare at:
$13,068.00
Our Price:
$12,415.00
| Compare at | : | $13,068.00 | |
|---|---|---|---|
| Our Price | : | $12,415.00 | |
| SKU | : | ELL-MAR-MEWSB84X30 | |
| Identifier | : | MAR-1386 | |
| Availability | : |
Back Ordered. Please contact us or call 208-717-9671 to confirm availability. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features.

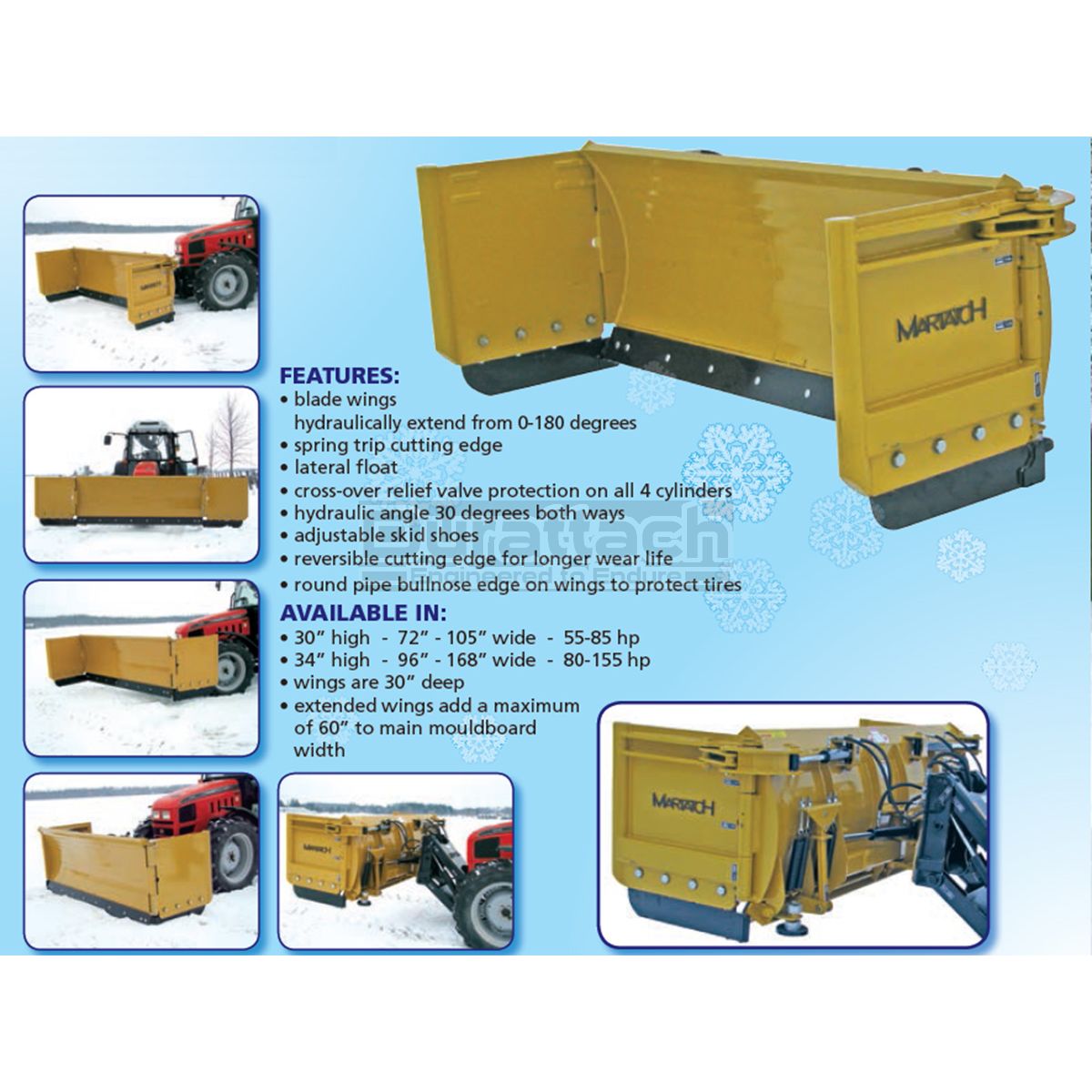

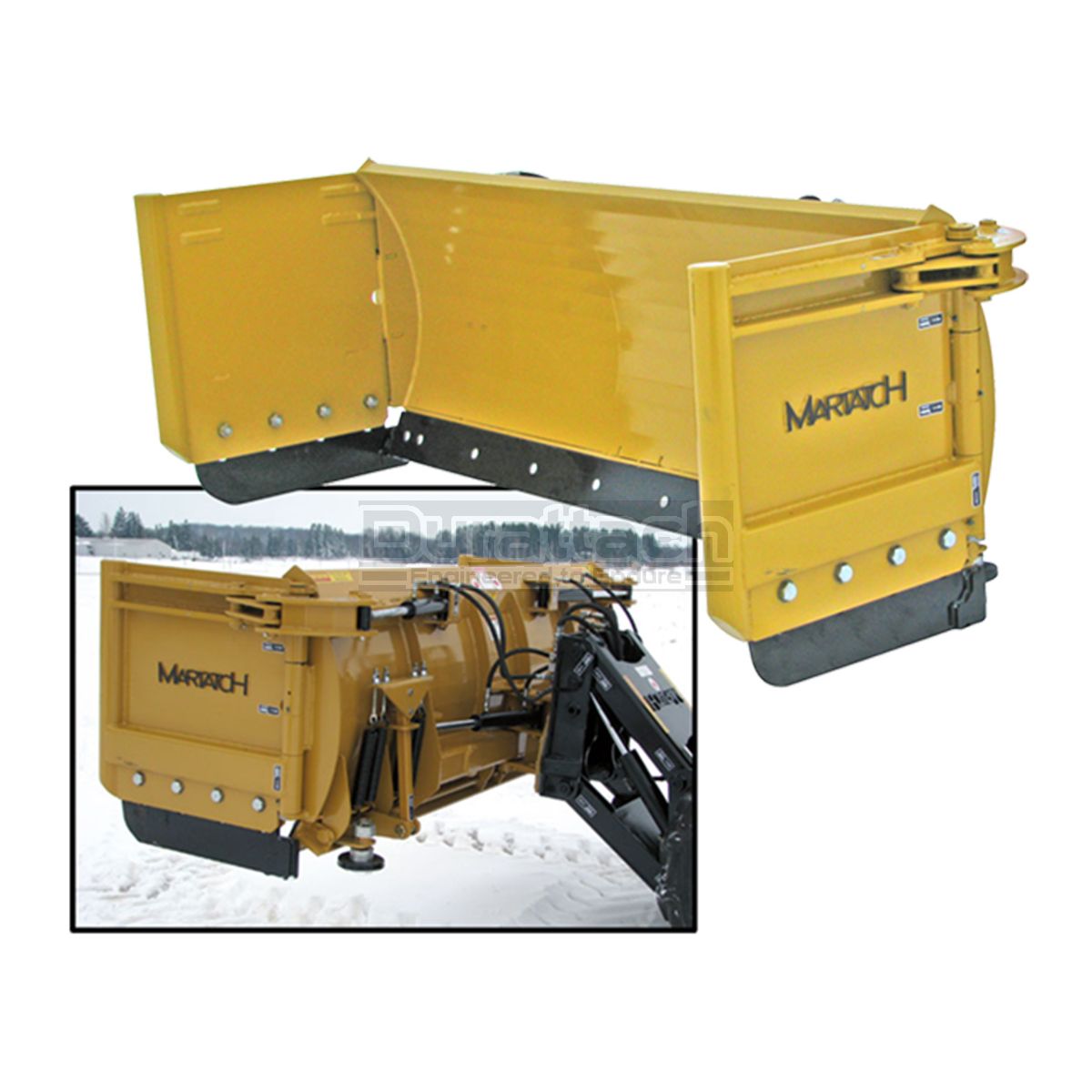

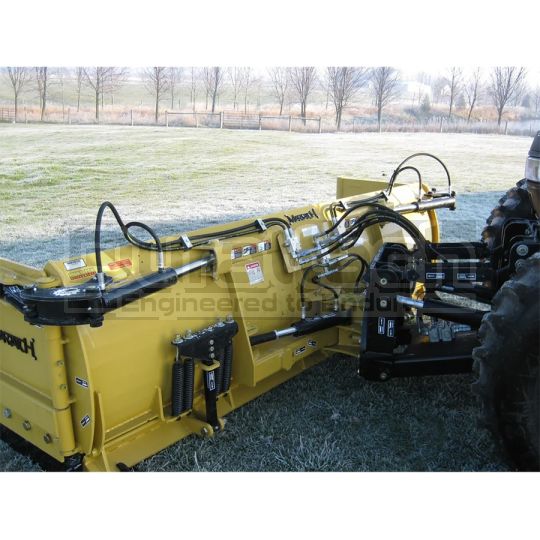

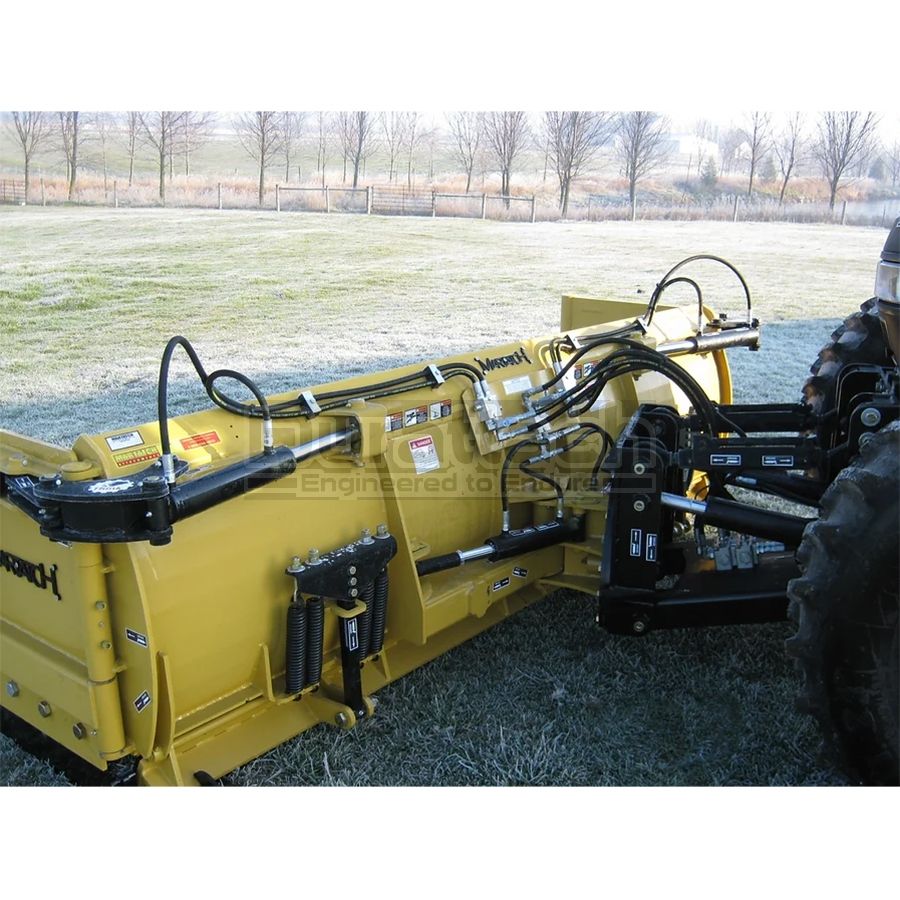

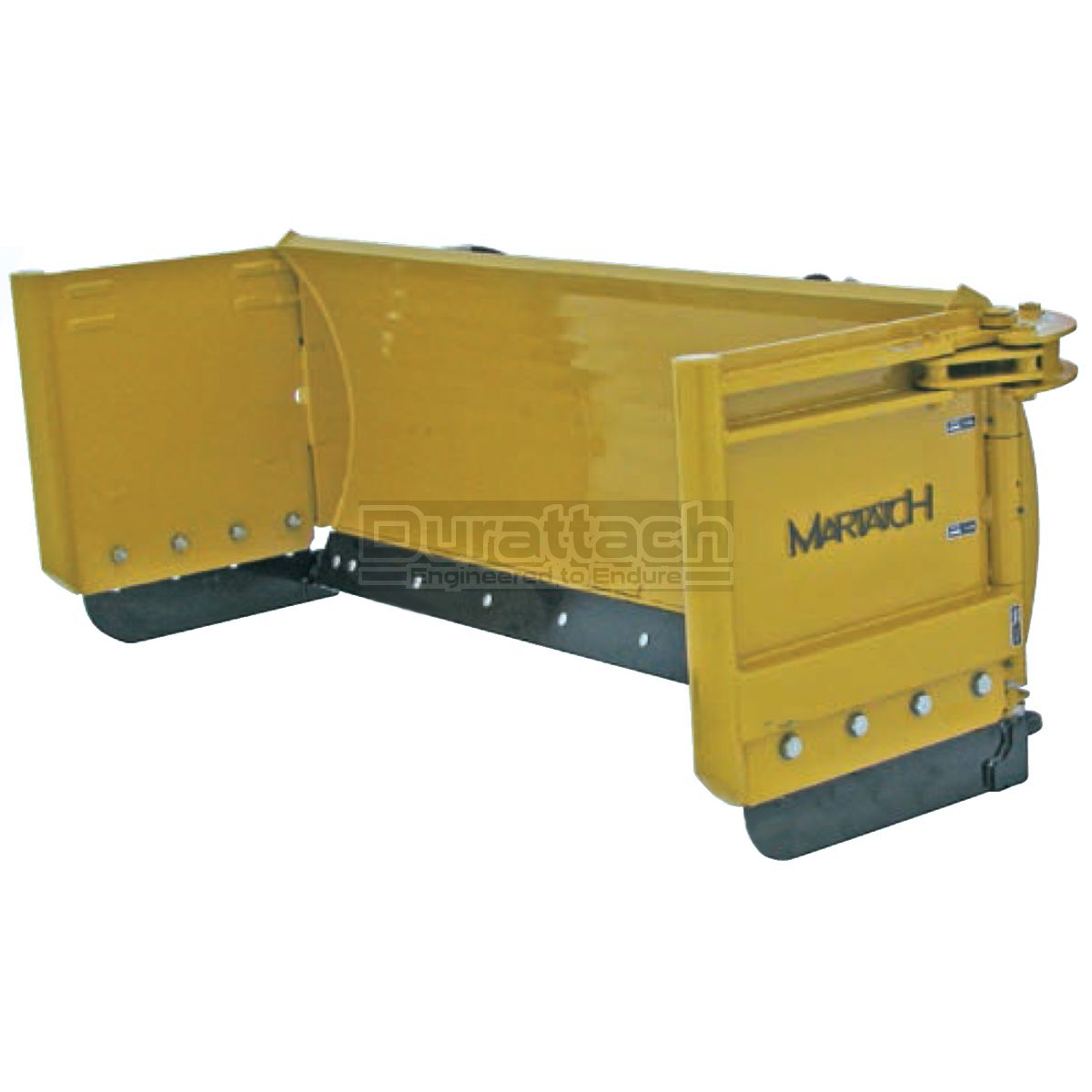

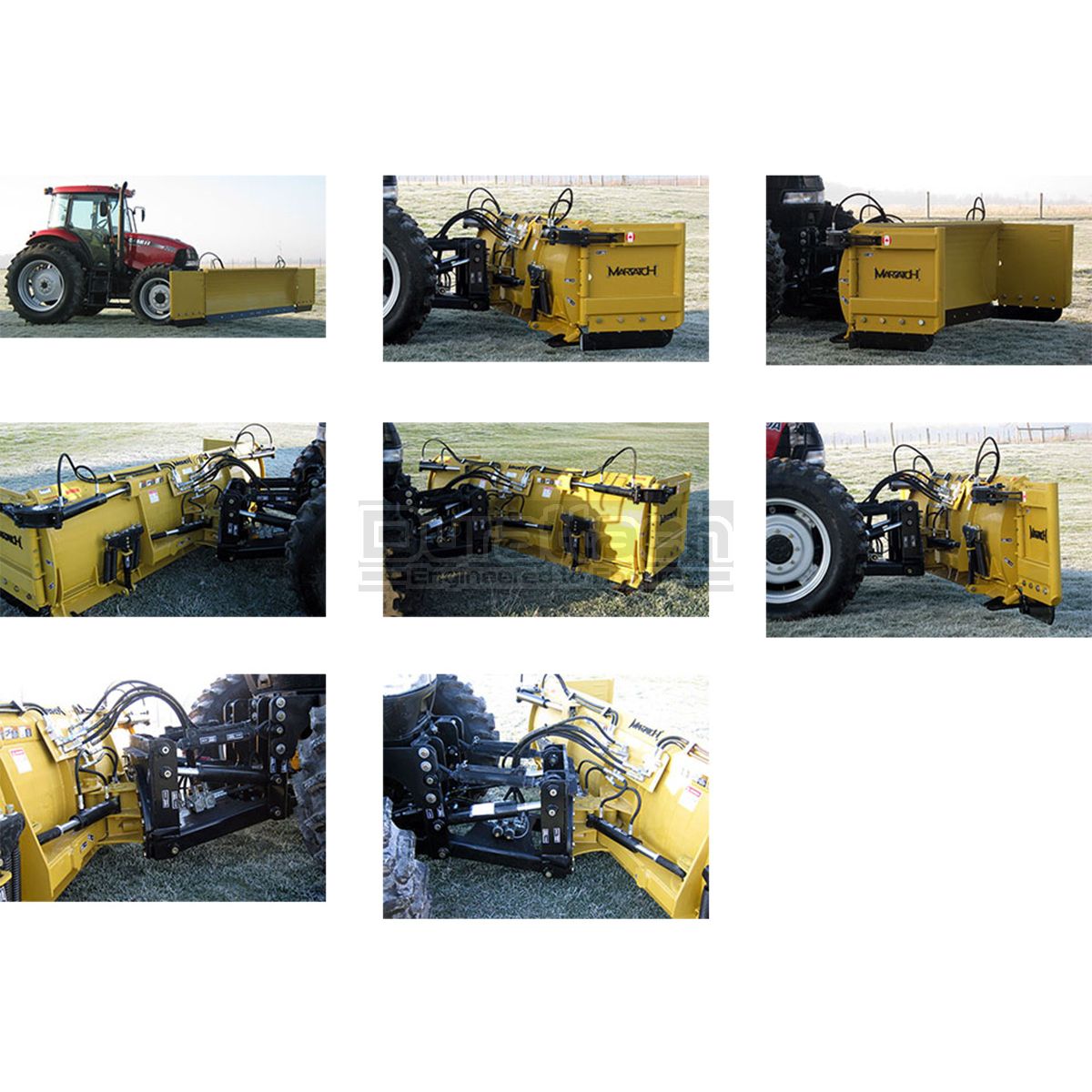

84" to 144" Martatch Snow Wing Blade Model MEWSB84X30
Martatch products are built to last a lifetime.
We have really been impressed with the Martatch snow blades, and Martatch equipment in general. These guys aren't messing around--they build good quality equipment the way it should be built. It starts with a good design and continues through the build process with care and attention to detail. You get what you pay for with Martatch Attachments.
SKID STEER UNIVERSAL STYLE QUICK-ATTACH MOUNTING BRACKET INCLUDED STANDARD. Optional custom mounting brackets available to match any loader. Direct-to-Frame mounts also available. Call 208-717-9671 with any questions.
Features:
* heavy duty construction
* hydraulic end plate snow wings extend from 0 - 180 degrees
* spring trip moldboard
* lateral float - allows blade to follow ground contours for better clearing performance
* cross-over relief valve protection on all 4 hydraulic cylinders
* hydraulic angle 30 degrees both ways
* adjustable skid shoes
* reversible cutting edge for longer wear life
* round pipe bullnose edge on wings to protect tires
* wings are 30" wide each; extended wings add 60" to main moldboard width
Martatch products are built to last a lifetime.
We have really been impressed with the Martatch snow blades, and Martatch equipment in general. These guys aren't messing around--they build good quality equipment the way it should be built. It starts with a good design and continues through the build process with care and attention to detail. You get what you pay for with Martatch Attachments.
SKID STEER UNIVERSAL STYLE QUICK-ATTACH MOUNTING BRACKET INCLUDED STANDARD. Optional custom mounting brackets available to match any loader. Direct-to-Frame mounts also available. Call 208-717-9671 with any questions.
Features:
* heavy duty construction
* hydraulic end plate snow wings extend from 0 - 180 degrees
* spring trip moldboard
* lateral float - allows blade to follow ground contours for better clearing performance
* cross-over relief valve protection on all 4 hydraulic cylinders
* hydraulic angle 30 degrees both ways
* adjustable skid shoes
* reversible cutting edge for longer wear life
* round pipe bullnose edge on wings to protect tires
* wings are 30" wide each; extended wings add 60" to main moldboard width
| SKU | ELL-MAR-MEWSB84X30 |
|---|---|
| Weight | 1835 lbs |
| Identifier | MAR-1386 |
| Model | MEWSB84X30 |
| Horsepower Recommended | 55 - 85 HP (41 - 63.4 KW) |
| Width - Overall | Wings Retracted: 84" (7 feet; 213 cm); Wings Extended: 144" (12 feet; 366 cm) |
| Width - Working | Wings Retracted: 84" (7 feet; 213 cm); Wings Extended: 144" (12 feet; 366 cm) |
| Width - Fully Angled | Not Specified |
| Moldboard | 30" Tall (76 cm) |
| Spring Trip | Spring Trip Cutting Edge |
| Angle | 30 Degree Hydraulic Angle Left and Right Standard |
| Tilt | Lateral Float Follows Ground Contours |
| Blade End Guide Markers | N/A |
| Hydraulic Cylinder(s) | Four (4) Hydraulic Cylinders, Included; each with Crossover Relief Valve |
| Hydraulic Hoses/Couplers | Hoses Included, Less Couplers |
| Skid Shoes | AR400 Steel Adjustable and Replaceable, Included |
| Cutting Edge | Bolt-On, Reversible, Replaceable, Included |
| Hitch Connection Type | Universal-Style Skid Steer Quick-Attach (Others Optional) |
| Color | Yellow |
| Manufacturer | Martatch |
