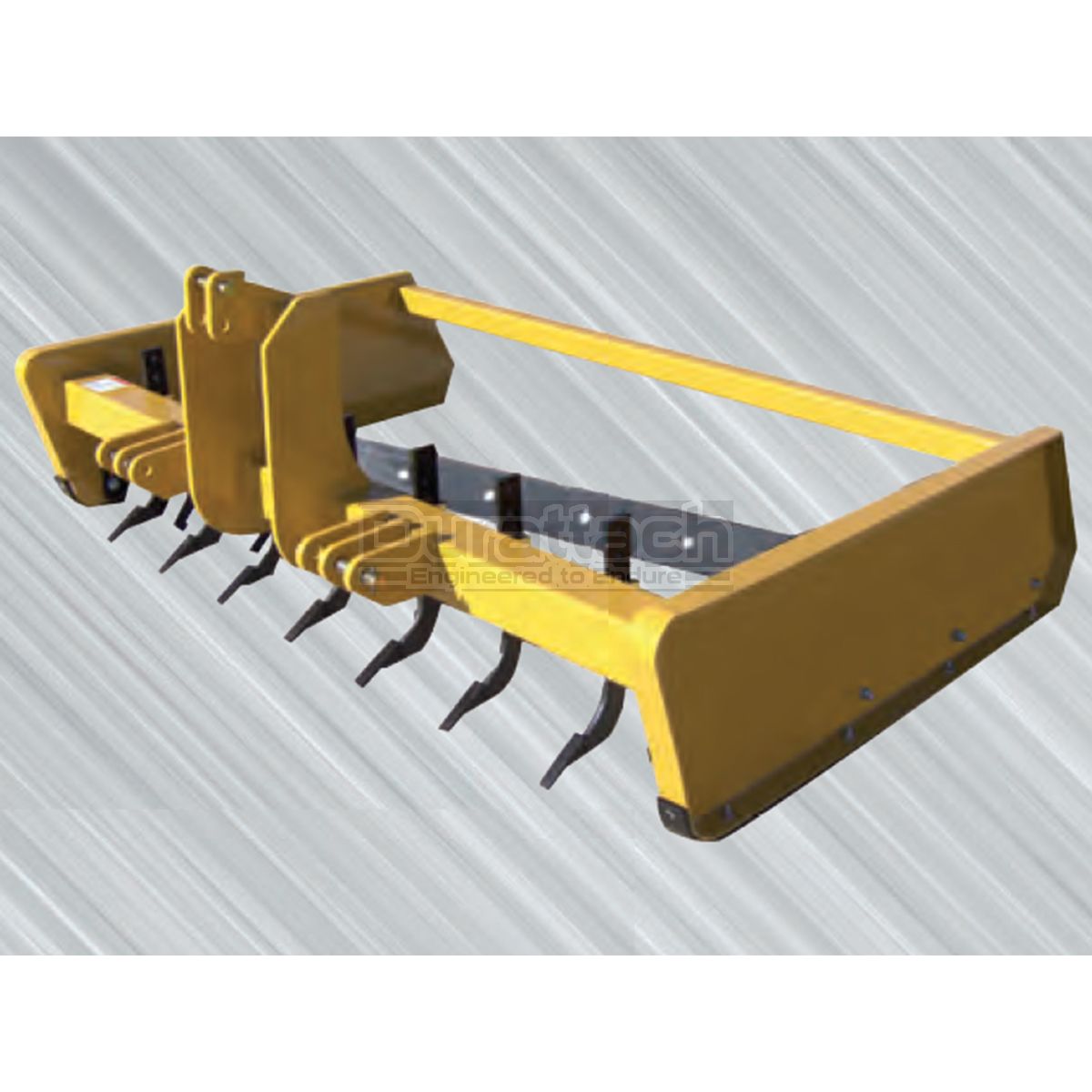

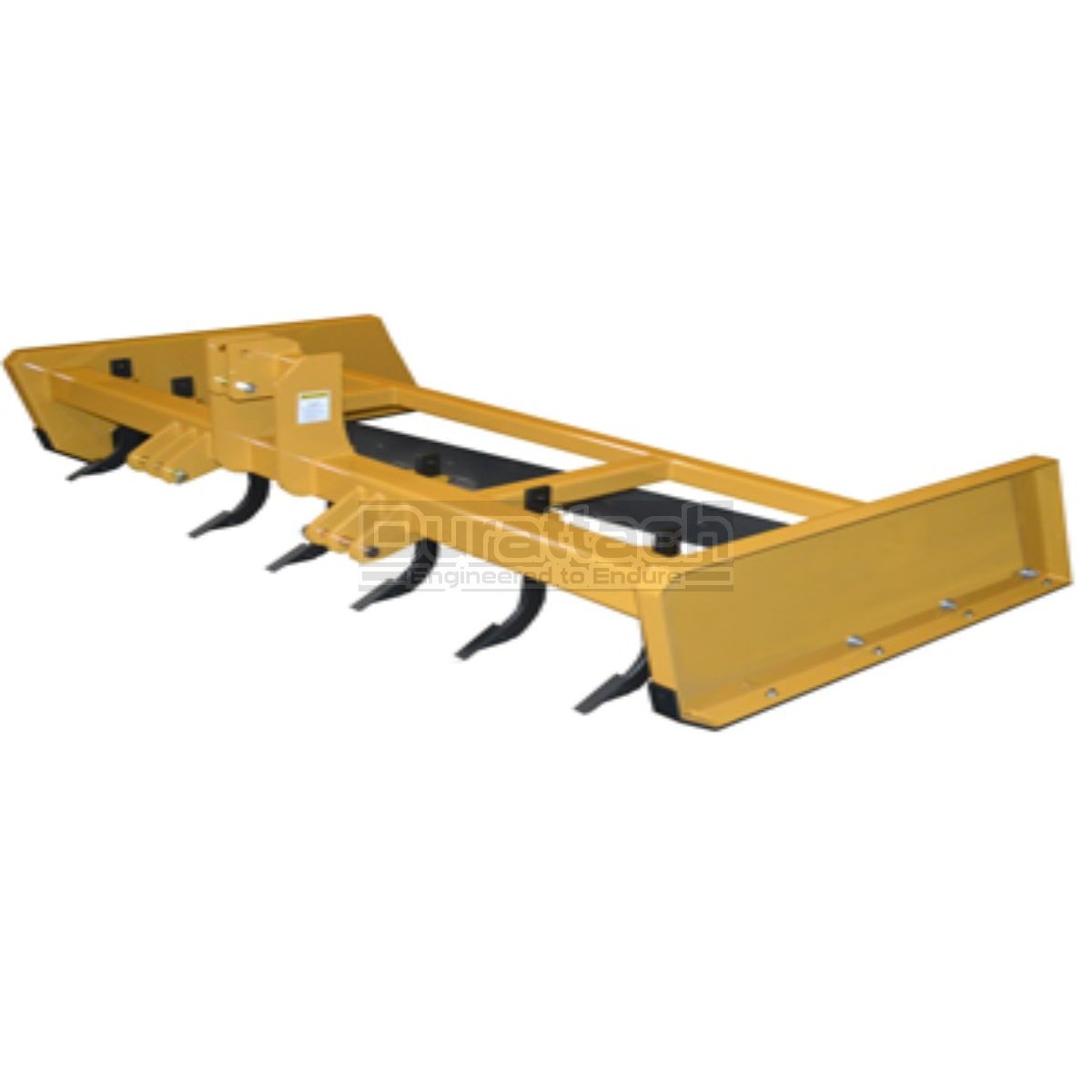

84" Rankin Industrial 3-Point Tractor Grading Scraper Model GSI7
| Compare at | : | $3,605.00 | |
|---|---|---|---|
| Our Price | : | $3,425.00 | |
| Country Of Manufacture | : | United States | |
| SKU | : | RAN-GSI7 | |
| Identifier | : | RAN-1924 | |
| Availability | : |
Ships in Approximately 3-5 Business Days. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features or colors.
In Stock
SAVE $180.00
Made in USA.
This is an industrial duty grading scraper from Rankin Equipment designed for heavy duty applications.
Features:
▪ Heavy 5" x 5" steel tubing with 1/4" wall main front beam
▪ 3" x 3" steel tubing near support beam
▪ Two 1/2" x 6" heat treated reversible beveled cutting edges
▪ Easy to adjust cutting edges with settings of 0 to 1-1/2” below side panels (preset at 1/2")
▪ Front cutting blade is designed to adjust lower than the rear blade to compensate for additional wear
▪ 20" spacing between cutting edges to produce maximum mixing action when rebuilding gravel roads
▪ 1/4" x 18" x 60" formed side panels capture and retain material
▪ 3/8" x 2-1/2" replaceable skid plates on side panels
▪ Some assembly required
This is an industrial duty grading scraper from Rankin Equipment designed for heavy duty applications.
Features:
▪ Heavy 5" x 5" steel tubing with 1/4" wall main front beam
▪ 3" x 3" steel tubing near support beam
▪ Two 1/2" x 6" heat treated reversible beveled cutting edges
▪ Easy to adjust cutting edges with settings of 0 to 1-1/2” below side panels (preset at 1/2")
▪ Front cutting blade is designed to adjust lower than the rear blade to compensate for additional wear
▪ 20" spacing between cutting edges to produce maximum mixing action when rebuilding gravel roads
▪ 1/4" x 18" x 60" formed side panels capture and retain material
▪ 3/8" x 2-1/2" replaceable skid plates on side panels
▪ Some assembly required
| SKU | RAN-GSI7 |
|---|---|
| Weight | 935 lbs |
| Identifier | RAN-1924 |
| Model | GSI7 |
| Horsepower Recommended | 45 HP Required |
| Width - Overall | 84" (7 Feet; 213 cm) |
| Width - Working | 84" (7 Feet; 213 cm) |
| Shanks / Scarifiers | 7 - Adjustable, Hardened Steel Ripping Shanks with Replaceable Tips |
| Grading Blade Adjustment | 0" to 1-1/2" (0 to 4 cm) Height Adjustment |
| Cutting Edge | 2 @ 1/2” x 6” Hardened Steel; Bolt-On / Reversible / Replaceable, Included |
| Skid Shoes | Adjustable and Replaceable, Included |
| Hitch Connection Type | Category 2, 3-Point Hitch, Quick-Hitch Compatible |
| Color | Yellow |
| Manufacturer | Rankin Equipment |
