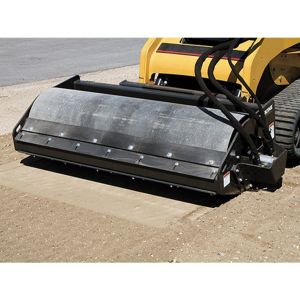

A skid steer loader vibratory roller/compactor attachment is a piece of heavy machinery used primarily for compacting soil, gravel, asphalt, and other materials during construction or landscaping projects. The skid steer loader itself is a small, agile piece of equipment that can maneuver easily in tight spaces and is powered by a wheeled or tracked drive system. When fitted with a vibratory roller or compactor attachment, it can effectively compact surfaces, ensuring a solid and stable base for further construction work.

Shop for Vibratory Roller / Compactor on Durattach.com


### How It Works:
1. **Vibratory Mechanism**: The attachment includes a roller drum that vibrates to help compress the material beneath it. The vibrations cause the particles in the soil or asphalt to move closer together, thus increasing density and stability.

2. **Weight and Pressure**: The weight of the attachment contributes to the compaction. As the roller rolls over the surface, it applies pressure, further aiding in compacting the material.

3. **Hydraulic Operation**: Most vibratory roller attachments operate via the hydraulic system of the skid steer. The operator can engage the vibratory feature and control the roller’s speed and direction through joystick controls.

### Using a Skid Steer Loader Vibratory Roller/Compactor:
Here’s a step-by-step guide on how to use one effectively:

1. **Preparation**:
– Ensure that the skid steer is compatible with the vibratory roller attachment and that the attachment is properly connected.
– Check the area for overhead hazards and ensure it is clear of obstacles or personnel.

2. **Adjust Settings**:
– Set the skid steer’s hydraulic controls to allow for proper operation of the vibratory roller.
– Engage the vibration feature, if applicable.

3. **Application**:
– Start the skid steer and drive to the area where compaction is needed.
– Position the roller over the first section to be compacted and lower it to the ground.
– Move the skid steer forward slowly, allowing the roller to make contact with the surface. The speed typically ranges from 1 to 3 mph, depending on the material and compaction requirements.

4. **Overlapping Passes**:
– Use overlapping passes to ensure complete coverage of the area. Typically, each pass should overlap the previous one by 50% to ensure even compaction.

5. **Monitoring**:
– Monitor the material being compacted. Adjust your speed and the vibration settings as necessary to achieve the desired compaction density.

6. **Finishing**:
– Once the entire area has been compacted, lift the roller and move the skid steer to the next section if needed.
– Turn off the vibratory function and park the skid steer in a safe location when you’re done.

### Safety Considerations:
– Always wear appropriate personal protective equipment (PPE), including hard hats, gloves, and steel-toed boots.
– Be aware of your surroundings and know the location of other workers on the job site.
– Operate the machine within its weight and capacity limits.

Using a skid steer loader with a vibratory roller/compactor attachment can significantly improve efficiency and effectiveness in ensuring proper compaction during construction and landscaping tasks.
