Erskine Skid Steer Grapple Stump Bucket Model 900560
| Our Price | : | $3,675.00 | |
|---|---|---|---|
| SKU | : | ERS-900560 | |
| Identifier | : | ERS-4695 | |
| Availability | : |
Ships in Approximately 8-10 Weeks; Built-to-Order. May be subject to unexpected delays. |
|
Questions? Call 208-717-9671
Made in USA.

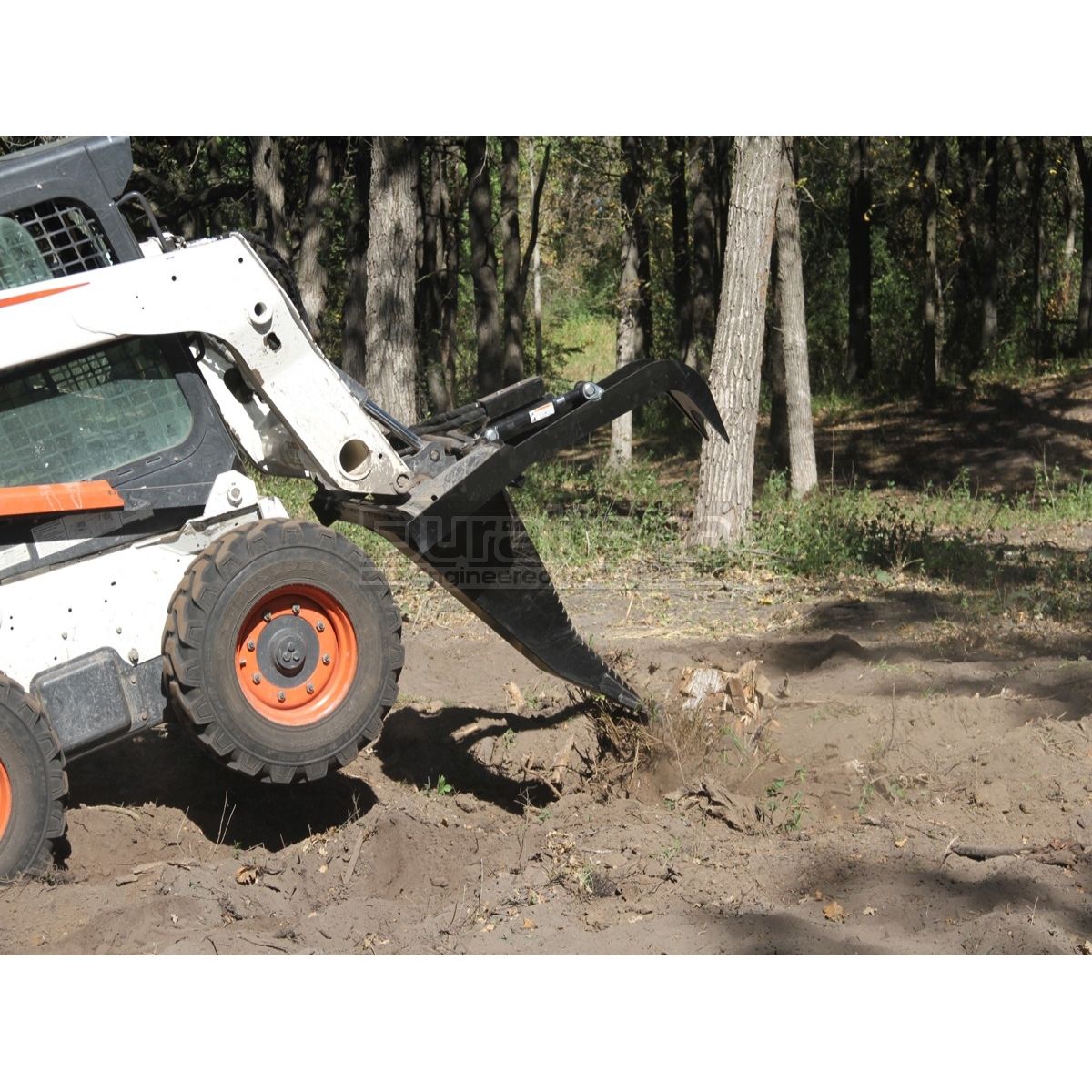

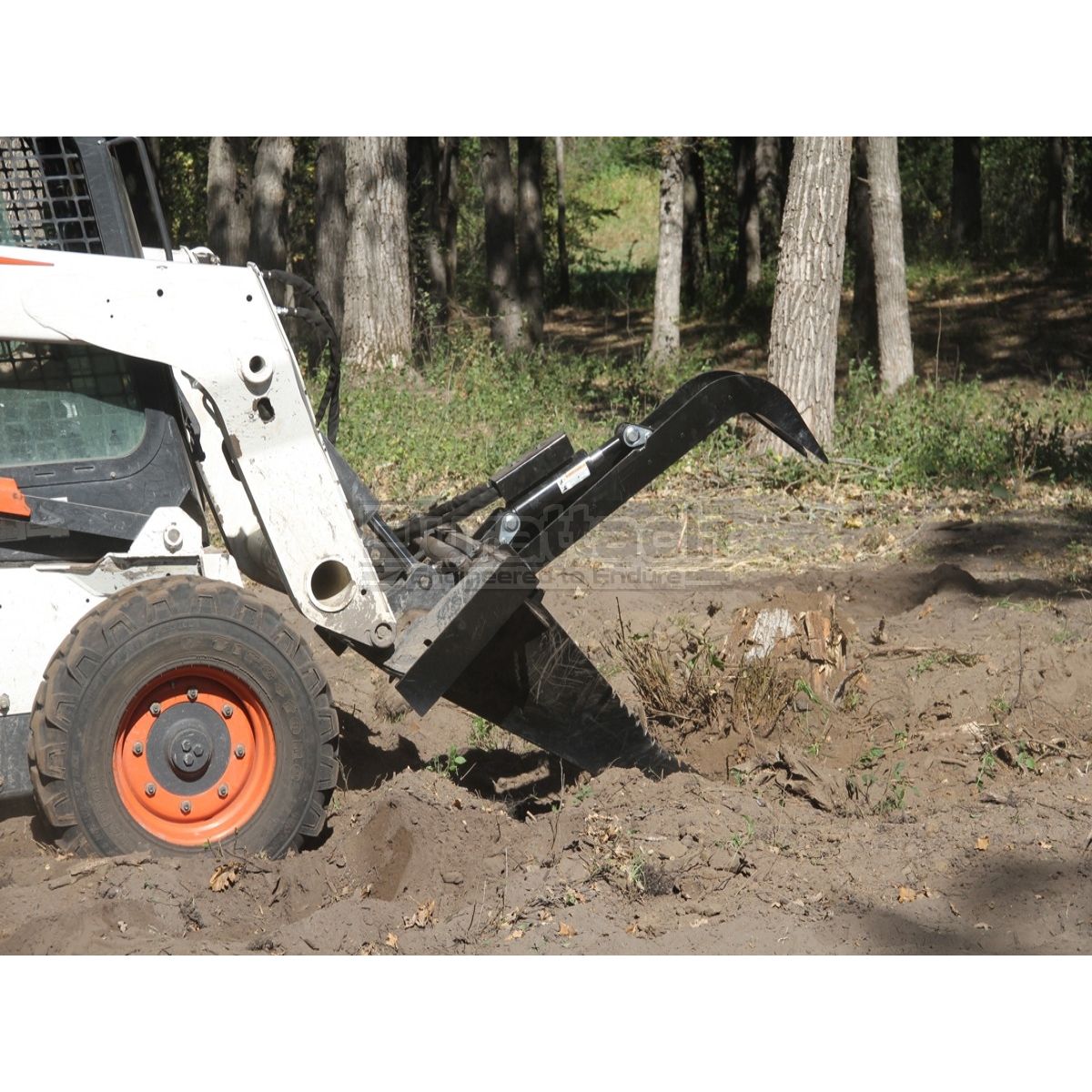

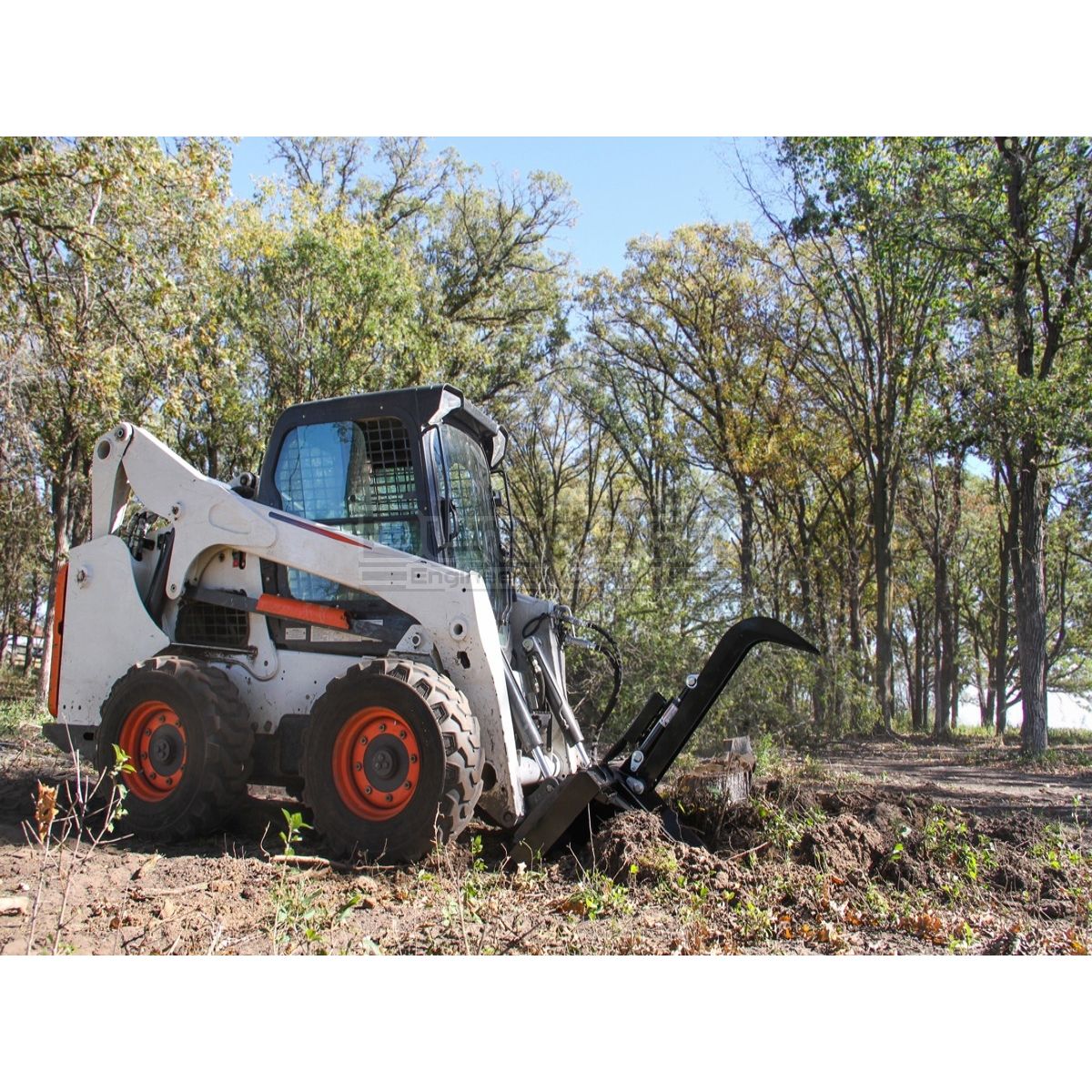

The Grapple Stump Bucket adds a full featured grapple to our Stump Bucket design. This unit boasts a large grapple cylinder for optimal holding power as you extract and transport stumps of all shapes and sizes. Other engineering benefits include the optimal leverage fulcrum point, reinforced mounting plate, and serrated side edges. Serrated sides provide cutting action to work through stubborn roots.
Features:
* Heavy-duty grapple with greasable pins
* 50.3” grapple opening
* 3” x 6” cylinder @ 3,000 psi
* Heavy-duty 1” by 6” cutting edge
* 1/2” steel on sides, bottom, and back of the bucket
* Fulcrum point for prying out stumps and rocks with added leverage
The Grapple Stump Bucket adds a full featured grapple to our Stump Bucket design. This unit boasts a large grapple cylinder for optimal holding power as you extract and transport stumps of all shapes and sizes. Other engineering benefits include the optimal leverage fulcrum point, reinforced mounting plate, and serrated side edges. Serrated sides provide cutting action to work through stubborn roots.
Features:
* Heavy-duty grapple with greasable pins
* 50.3” grapple opening
* 3” x 6” cylinder @ 3,000 psi
* Heavy-duty 1” by 6” cutting edge
* 1/2” steel on sides, bottom, and back of the bucket
* Fulcrum point for prying out stumps and rocks with added leverage
| SKU | ERS-900560 |
|---|---|
| Weight | 557 lbs |
| Identifier | ERS-4695 |
| Model | 900560 |
| Horsepower Recommended | 60 HP Minimum (44.7 KW) |
| Width - Overall | 45-1/2" (114 cm) Frame Width |
| Width - Working | 45" (114.3 cm) |
| Maximum Opening | 50.3" (127.76 cm) |
| Cutting Edge | 1" x 6" rubber cutting edge (reversible) |
| Tines / Rods | 7 @ 3/4" Wide T1 Steel Bottom Tines |
| Rods / Tines Spacing | 12" (30 cm) (approximate) |
| Teeth | N/A |
| Hydraulic Cylinder(s) | 3" x 6" @ 3,000 psi Hydraulic Cylinders, Included |
| Hydraulic Hoses/Couplers | Hydraulic Hoses Included; Couplers Optional |
| Hitch Connection Type | Universal-Style Skid Steer Quick-Attach |
| Color | Black |
| Manufacturer | Erskine Attachments |
