Fasse Rexroth Third Function Hydraulic Diverter Valve Kit Model EH200KL

Ships in Approximately 3-5 Business Days. May be delayed due to Covid-19.


Compare at: $884.00

Our Price: $549.95




Model EH200KL
Weight 12.0000
Required Hydraulic Flow Up to 24 gpm (90.8 lpm) max.
Operating Pressure 4,200 psi max.
This is a simple and straightforward way to add 3rd function hydraulics to your tractor or other equipment.

Other suppliers are selling virtually identical kits for $850.

This is a top-quality "Third Function" Hydraulic Kit that utilizes an electric diverter valve to operate hydraulic attachments on your tractor or other equipment. Easy to use push button switch to control the function. Can be used to control hydraulic functions up to 24 GPM at a maximum pressure of 4,200 psi.

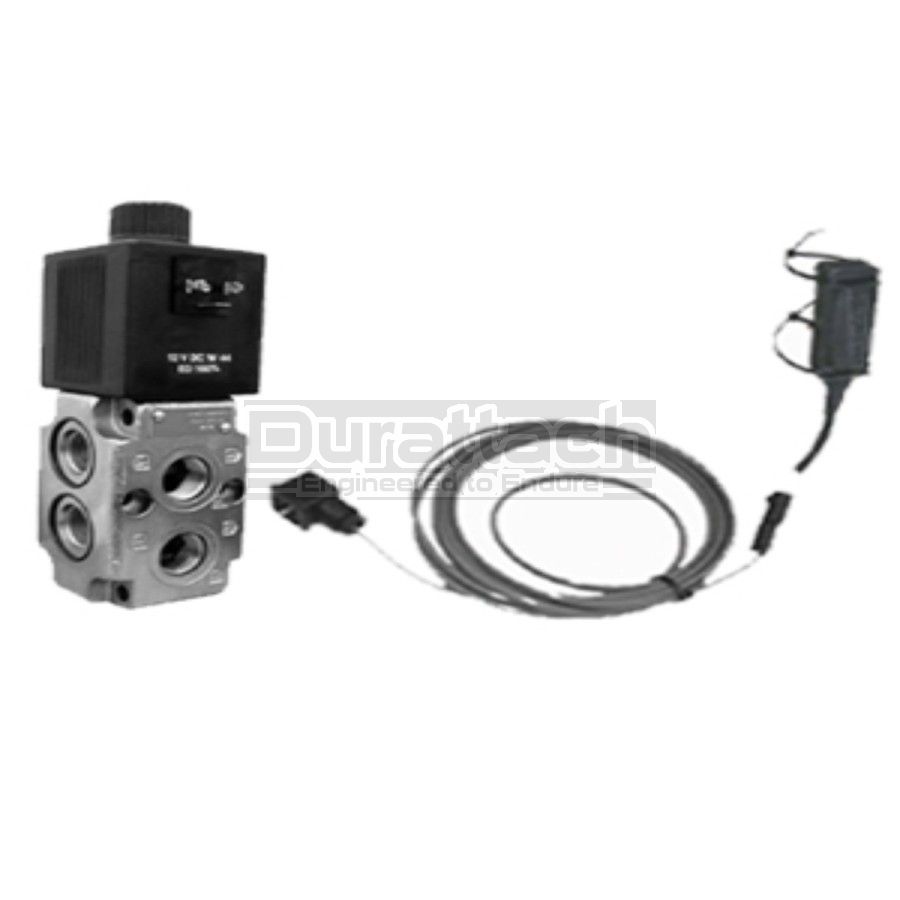

Kit consists of:

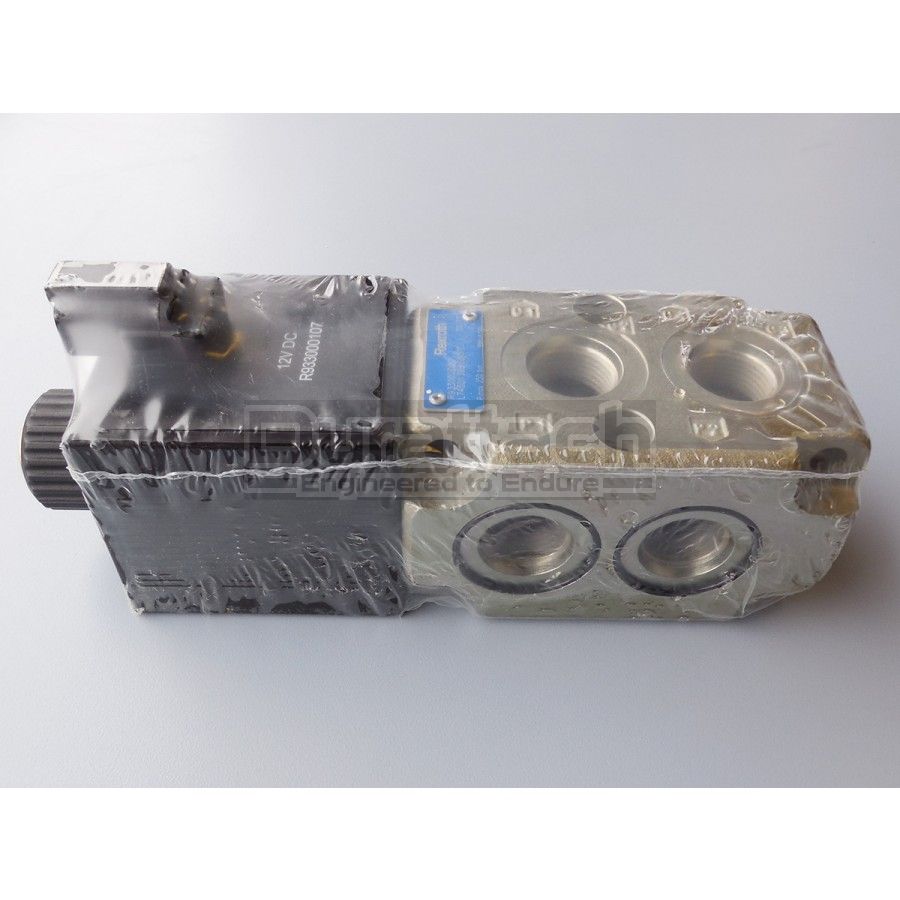

* Top Quality Bosch Rexroth Valve Body

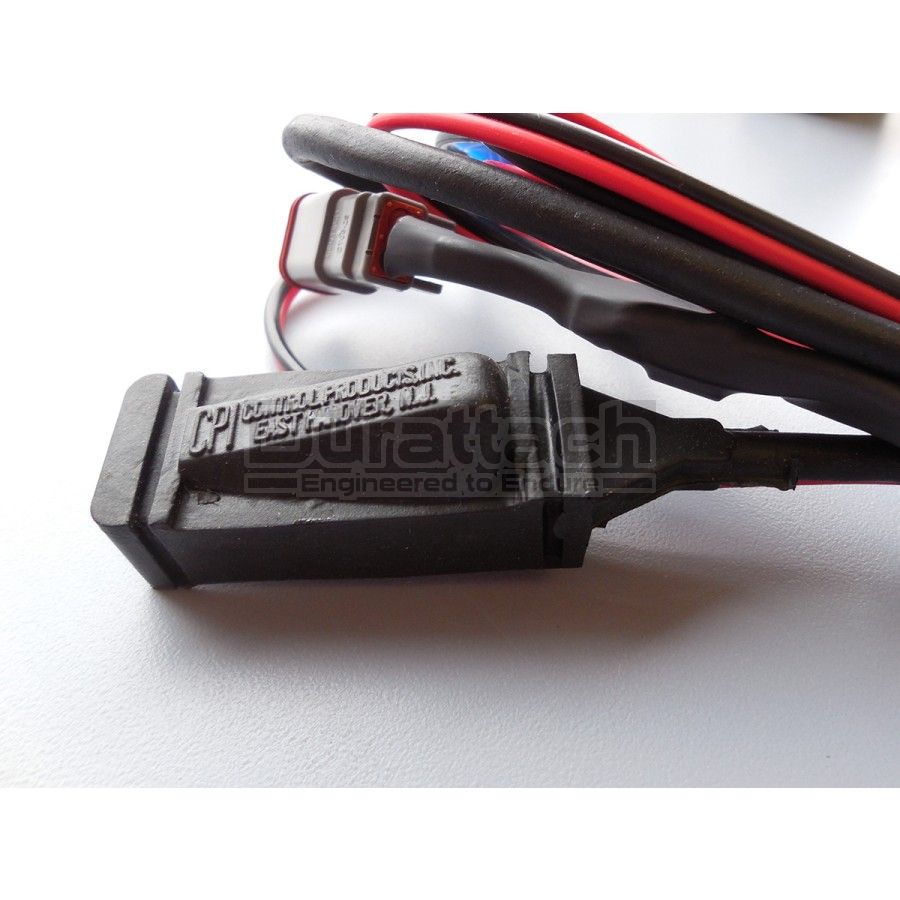

* Connector Harness
* V-Back Momentary Push Button Switch
* Fuse Kit with Terminals
* Installation Guide
* Adapter Fittings (see Note below)

User/Installer must supply:
* Mounting Hardware
* Hydraulic Hoses
* Fittings/Couplers
* Assembly/Installation required

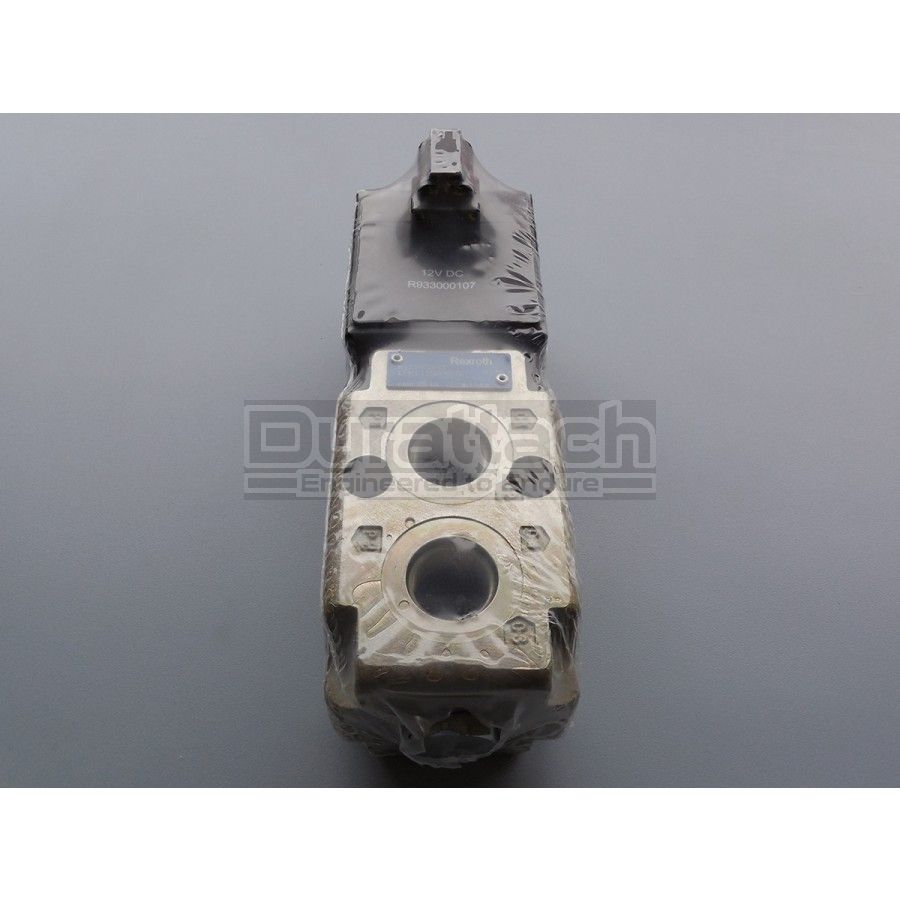

Note: All ports in the valve are Female -10 SAE O-ring, 7/8-14. The kit also includes six (6) adapter fittings that connect to the valve ports and provide a #8 JIC Male connection, if needed/wanted for your application.
