Haugen Telehandler Fork Mounted Spreader Bar Model MASPR 812
| Compare at | : | $3,595.00 | |
|---|---|---|---|
| Our Price | : | $3,415.00 | |
| Country Of Manufacture | : | United States | |
| SKU | : | HAU-MASPR 812 | |
| Identifier | : | HAU-3131 | |
| Availability | : |
Ships in Approximately 2-3 Weeks. |
|
| Best Price Promise | : | Found a lower TOTAL DELIVERED PRICE elsewhere? Let us know and we will do our best to beat it! | |
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features or colors.
Made in USA.

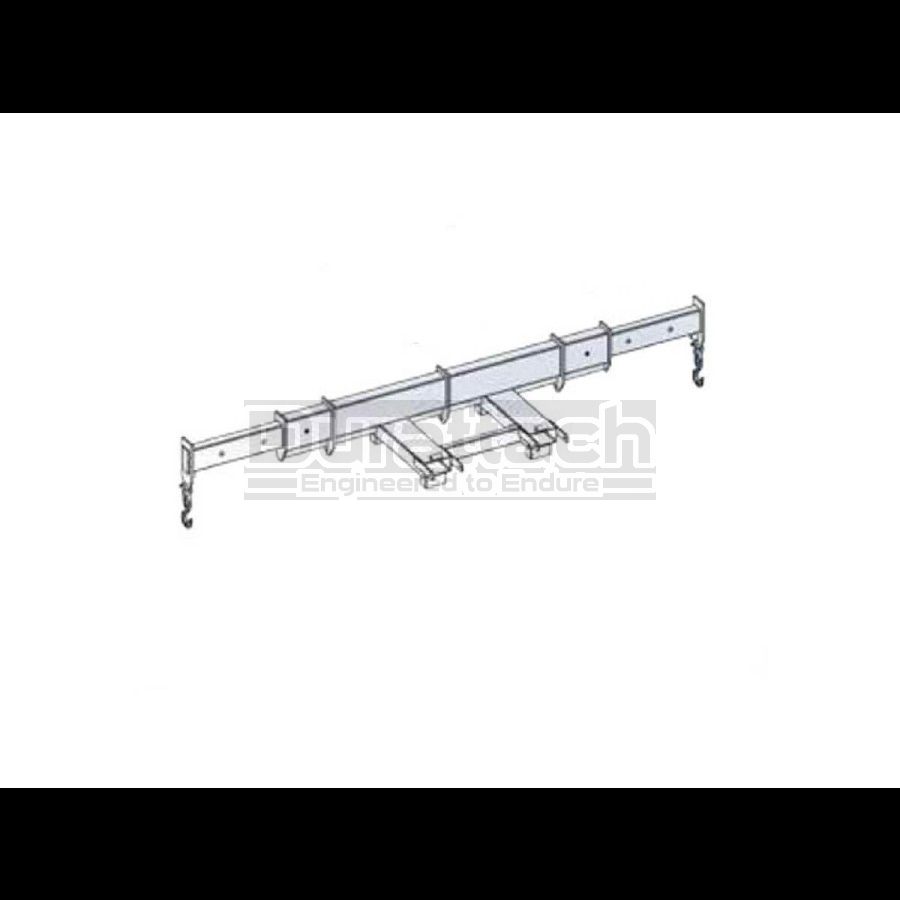

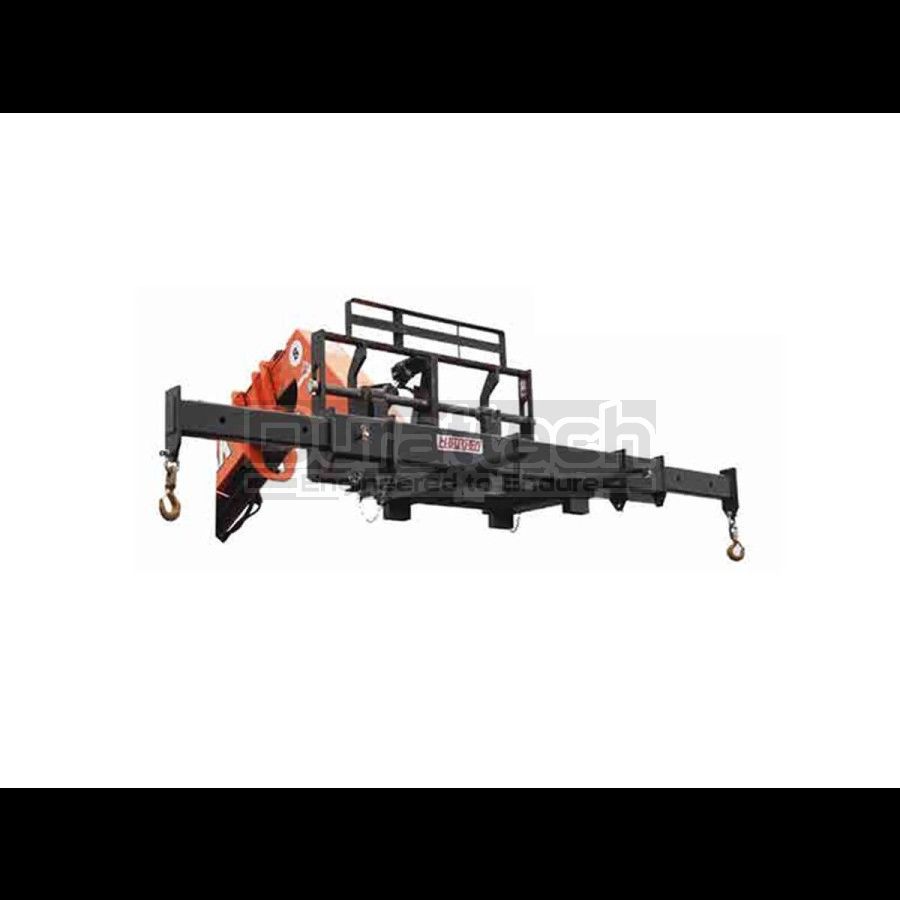

Haugen Telehandler Fork Mounted Spreader Bar
The Spreader Bars are Engineer Certified and come complete with a load chart.
Features:
* The fork pockets hold the Spreader Bar at 24” on center
* Fork Pockets fit tines up to 3.50” thick x 7.50” wide.
* Secures to your Fork Tines with a pin.
* Comes standard with Two 5 ton swivel hooks
* Available sizes, 8’ to 12’ , 10’ to 15’, and 13’ to 20’
* Optional reinforced top plate with two shackles
Lift Capacity:
Center Position - Single Point Load = 10000 lbs
2 Point Loads @ 65.375” spread position, 5000 lbs each = 10000 lbs total
2 Point Loads @ 97.88” spread position, 4000 lbs each = 8000 lbs total
2 Point Loads @ 121.88” spread position, 3500 lbs each = 7000 lbs total
2 Point Loads @ 145.88” spread position, 3000 lbs each = 6000 lbs total
Haugen Telehandler Fork Mounted Spreader Bar
The Spreader Bars are Engineer Certified and come complete with a load chart.
Features:
* The fork pockets hold the Spreader Bar at 24” on center
* Fork Pockets fit tines up to 3.50” thick x 7.50” wide.
* Secures to your Fork Tines with a pin.
* Comes standard with Two 5 ton swivel hooks
* Available sizes, 8’ to 12’ , 10’ to 15’, and 13’ to 20’
* Optional reinforced top plate with two shackles
Lift Capacity:
Center Position - Single Point Load = 10000 lbs
2 Point Loads @ 65.375” spread position, 5000 lbs each = 10000 lbs total
2 Point Loads @ 97.88” spread position, 4000 lbs each = 8000 lbs total
2 Point Loads @ 121.88” spread position, 3500 lbs each = 7000 lbs total
2 Point Loads @ 145.88” spread position, 3000 lbs each = 6000 lbs total
| SKU | HAU-MASPR 812 |
|---|---|
| Weight | 580 lbs |
| Identifier | HAU-3131 |
| Model | MASPR 812 |
| Capacity, Maximum | 10,000 lbs. (4,536 Kg) |
| Tines / Rods | 3 1/2” x 7 1/2” |
| Hitch Connection Type | Telehandler Fork Slots |
| Color | Black |
| Manufacturer | Haugen Attachments - Casselton |
