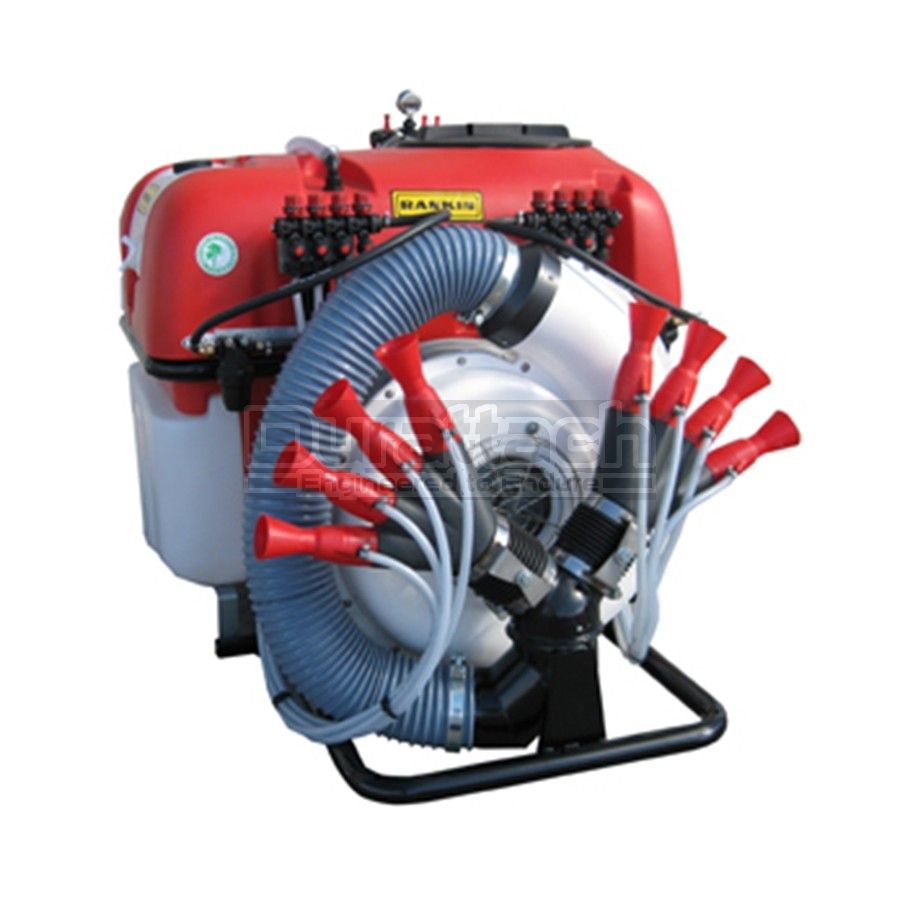

Rankin 3-Point Tractor Venturi Sprayer Model NPV300

VENTURI SPRAYERS: NPV SERIES:

Features:

▪ Tanks are made of reinforced polyethylene with smooth lines that are gentle on plants
▪ Low maintenance 35 GPM centrifugal pump
▪ One speed gearbox with neutral
▪ High performance 15" aluminum turbine fan
▪ Pressure regulator valve with manual controls
▪ Hot galvanized steel fan housing for long life
▪ High pressure jet agitation
▪ Large suction filter with shut-off valve
▪ 8 nozzle Venturi distribution head
▪ Application rates of 20 to 200 gallons per acre
▪ Clean water tank for hand washing
▪ Clean water tank for flushing chemical residue


Our COMPACT VENTURI SPRAYERS feature the latest technology in low volume spraying. This method results in
considerable savings in time due to the reduction in the quantity of water required, which results in fewer fill ups and
will spray 2 to 4 times longer than air blast sprayers of the same tank size. Venturi distribution heads produce 50
micron fog size droplets which adhere to the plant surface and deposit the chemical on the foliage instead of dripping
and running off on the ground. Nozzles adjust to direct spray only on the crop which results in less chemical waste
and soil or water contamination.
