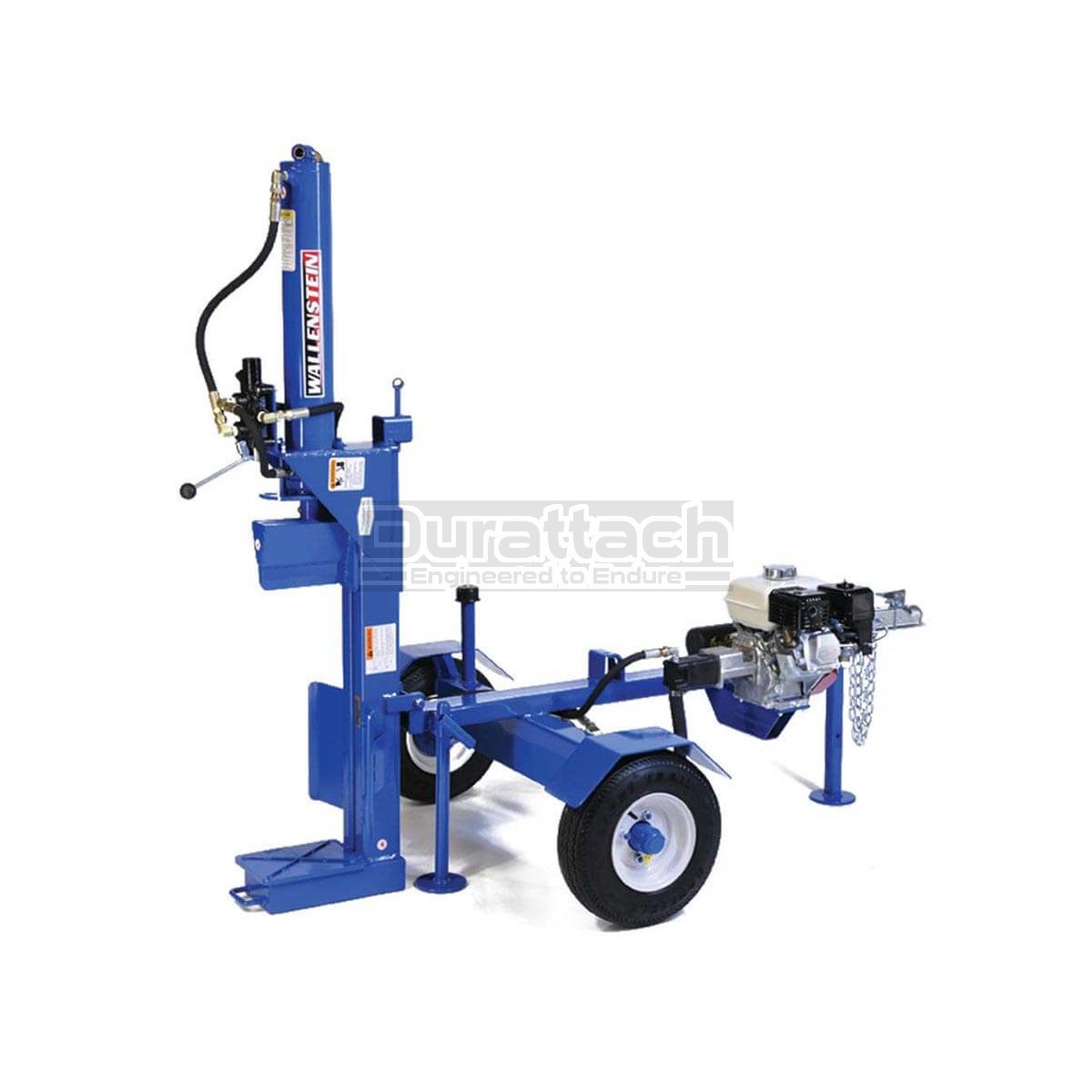

Wallenstein 20-Ton Tractor Log Splitter / Wood Splitter Model WX540
In Stock
SKU
ELL-WAL-WX540
Compare at:
$3,649.00
Add to Cart for our Best Price
| Our Price | : |
$3,649.00
Add to Cart for our Best Price |
|
|---|---|---|---|
| Country Of Manufacture | : | Canada | |
| SKU | : | ELL-WAL-WX540 | |
| Identifier | : | WAL-3347 | |
| Availability | : |
Back Ordered. Please contact us or call 208-717-9671 to confirm availability. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features or colors.
Wallenstein builds only top-quality products, which is why we feature them in our product line.
Powerful & versatile, the WX 500 Series provide dependable splitting force and fast, efficient workflow for wood up to 24” long. With your choice of Honda engine, the WX 500 Series is perfect for everyday rental use or seasonal use at home.
Features:
*Split Force: 20 Ton
* Engine: 196 CC Honda GX200
* Split Opening: 24" (61 cm)
* Orientation: Horizontal / Vertical
* Average Splitter Cycle Time: 6.62 Seconds
* Full Cycle: 13.24 Seconds
* Cylinder Diameter: 4" (10cm)
* Wedge Height: 9" (23 cm)
* Bed Height: 24" (61 cm)
* Tires: 4.80 x 8
* Hitch: 2" Ball
* Total Weight: 470 lbs (213 kg)
* Dimensions (LxWxH): 80" x 48" x 40" (203 cm x 122 cm x 102 cm)
* Hydraulic Capacity: 3.5 US gal (13 l)
Powerful & versatile, the WX 500 Series provide dependable splitting force and fast, efficient workflow for wood up to 24” long. With your choice of Honda engine, the WX 500 Series is perfect for everyday rental use or seasonal use at home.
Features:
*Split Force: 20 Ton
* Engine: 196 CC Honda GX200
* Split Opening: 24" (61 cm)
* Orientation: Horizontal / Vertical
* Average Splitter Cycle Time: 6.62 Seconds
* Full Cycle: 13.24 Seconds
* Cylinder Diameter: 4" (10cm)
* Wedge Height: 9" (23 cm)
* Bed Height: 24" (61 cm)
* Tires: 4.80 x 8
* Hitch: 2" Ball
* Total Weight: 470 lbs (213 kg)
* Dimensions (LxWxH): 80" x 48" x 40" (203 cm x 122 cm x 102 cm)
* Hydraulic Capacity: 3.5 US gal (13 l)
| SKU | ELL-WAL-WX540 |
|---|---|
| Weight | 470 lbs |
| Identifier | WAL-3347 |
| Model | WX540 |
| Product Video | https://www.youtube.com/watch?v=ut9u_IwEve4 |
| Log Length | Up to 24" |
| Orientation | Horizontal and Vertical |
| Cylinder(s) | 1 cylinder - 4" x 24" |
| Tonnage Rating | 20 Tons |
| Valve | Auto Return |
| Cycle Time Average Splitting Stroke - The amount of time it takes for the splitting wedge to fully split a log, setup the next piece and begin splitting again. | 7 Seconds (approx.) |
| Cycle Time Full Stroke | 14 Seconds (approx.) |
| Hydraulic Hoses/Couplers | Hoses & Couplers Included |
| Wedge | 9" Height |
| Hitch Connection Type | 2" Rear Ball Hitch |
| Color | Blue (Other Colors Available/Optional) |
| Manufacturer | Wallenstein |
