Wallenstein Mini Excavator Hydraulic Rotation Log Grapple Model LXG520R

In Stock
SKU
ELL-WAL-LXG520R
Rating:
100 % of 100
Compare at: $6,880.00 Our Price: $6,536.00
Our Price : $6,880.00

Add to Cart for our Best Price

SKU : ELL-WAL-LXG520R
Identifier : WAL-4816
Availability :

Back Ordered. Please contact us or call 208-717-9671 to confirm availability.

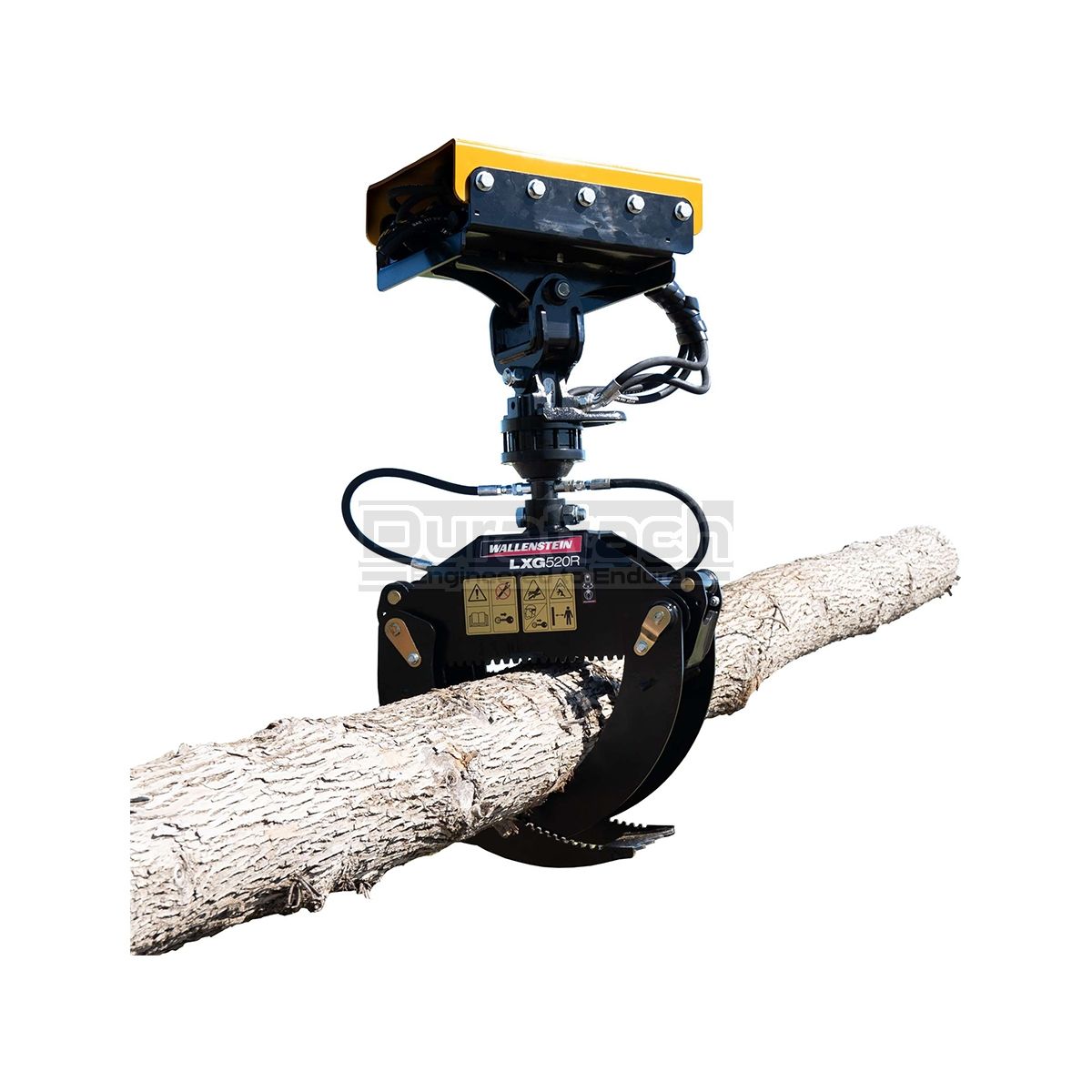

Wallenstein Mini Excavator Hydraulic Rotation Log Grapple Model LXG520R
Wallenstein Mini Excavator Hydraulic Rotation Log Grapple Model LXG520R

Images are representative but may vary from actual product and/or show optional features.

SAVE $344.00
Wallenstein Mini Excavator Hydraulic Rotation Log Grapple Model LXG520R

When lifting and handling is required, trust the strength and agility of the Wallenstein LXG520R Mini Excavator Log Grapple. Load, unload and transport timbers up to 6,750 lbs. out of the woods and onto the sawmill quickly and easily. Built specifically for mini excavators, the LXG520R is ideal for sawmill operators that need precision handling and controlled movement of heavy, awkward logs.

Features:
* Lift Capacity: 6750 lbs (3062 kg)
* Recommended Hydraulic Flow: 5 gpm (19 lpm)
* Grapple Opening: 3" - 48" (8 cm - 122 cm)
* Grapple Rotation: 360°
* Clamp Force: 9400 lbs (4264 kg)
* Rotator/Pivot Rating: 6750 lbs (3062 kg)
* Total Weight: 345 lbs (156 kg)
* Dimensions (LxWxH): 51" x 52" x 20" (130 cm x 132 cm x 51 cm)
* Mounting System: Blank Ear Plate
* Hydraulic Requirements: 2 Pressure, 2 Return or G100 Accessory (Hosing not included)
* Tonnage Range: 2.5 - 6

IMPORTANT: The grapple is equipped with a blank mounting plate. You will need to provide the correct mount for your mini excavator and weld it to the supplied blank plate.
More Information
SKU ELL-WAL-LXG520R
Weight 345 lbs
Identifier WAL-4816
Model LXG520R
Product Video https://www.youtube.com/watch?v=r3dkm_d7s94
Horsepower Recommended 60 - 125 HP (44.7 - 93.2 KW)
Required Hydraulic Flow 5 gpm (18.9 lpm)
Capacity 6,750 lbs (3,062 kg)
Rotation 360-Degree Continuous Hydraulic
Maximum Opening 3" - 48" (8 cm - 122 cm)
Hydraulic Cylinder(s) Single Heavy Duty Hydraulic Clamping Cylinder, Included
Hydraulic Hoses/Couplers Hydraulic Hoses & Flat-Faced Couplers Included
Hitch Connection Type Blank Plate (No Mounting Bracket)
Color Black
Manufacturer Wallenstein
