Wallenstein Mini-Skid Steer Log Grapple Model LXG210S
| Our Price | : |
$4,710.00
Add to Cart for our Best Price |
|
|---|---|---|---|
| SKU | : | ELL-WAL-LXG210S | |
| Identifier | : | WAL-3313 | |
| Availability | : |
Back Ordered. Please contact us or call 208-717-9671 to confirm availability. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features.

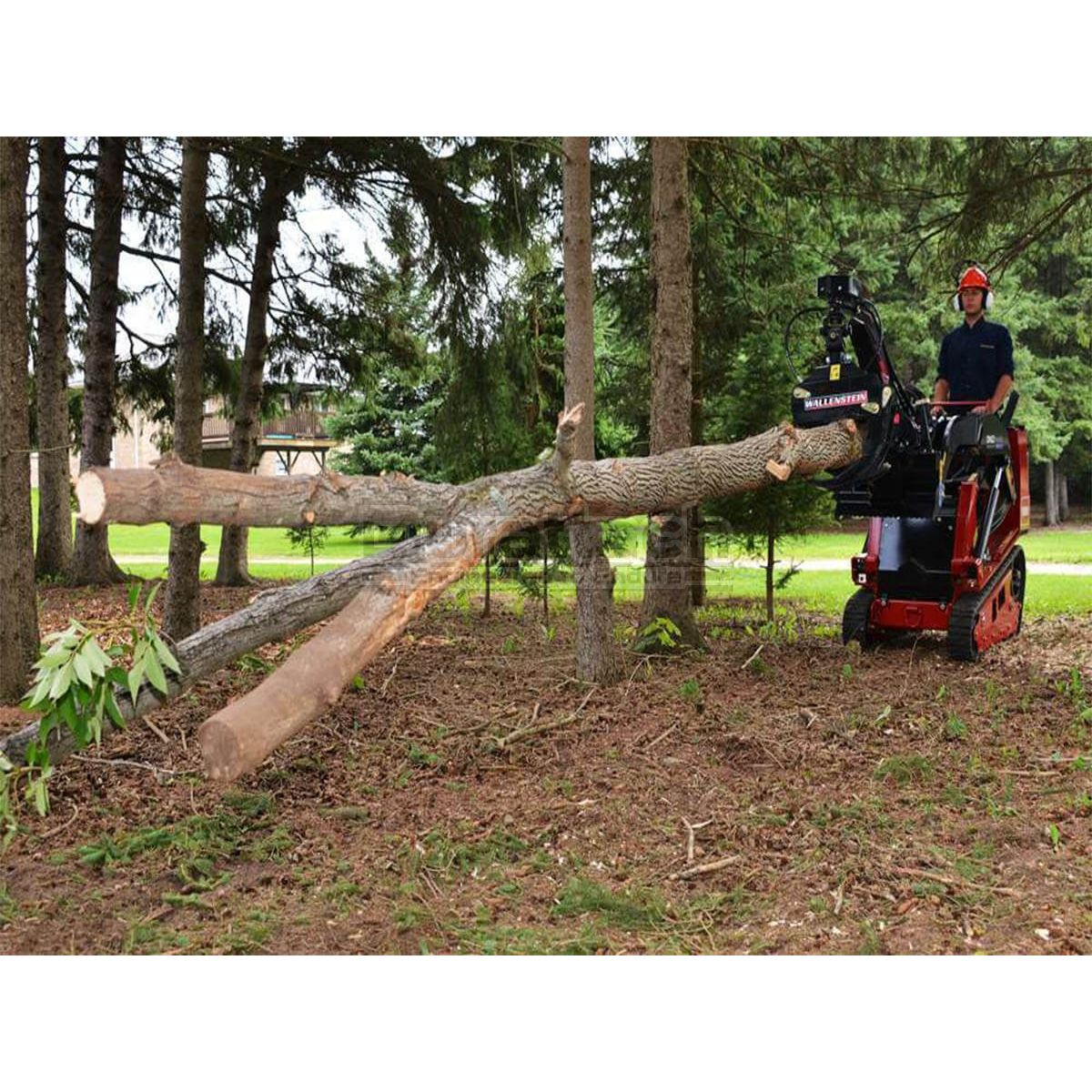

Squeeze into tight spaces and get the job done efficiently with Wallenstein’s new Mini Skidsteer Log Grapple, the ideal attachment for landscapers and tree service contractors who need hauling strength through narrow passages. The LXG210S features a spring-centered return that twists when turning corners but stays straight when grabbing logs, a tight grapple closure for small branches, and lateral or in-line grapple positioning for smooth log handling.
LXG210S is designed to fit the universal attachment plate of the following make of Mini Skidsteers only: Toro, Vermeer, Ramrod, Boxer and Ditch Witch. If you have any questions concerning a particular model fit, please contact your Dealer or Wallenstein.
Features:
* Lift Capacity: 1000 lbs (454 kg)
* Engine HP Range: 12 - 50
* Required Hydraulic Flow: 3 gpm (11 lpm)
* Grapple Opening: 3" - 40" (8 cm - 102 cm)
* Grapple Rotation: 180°
* Clamp Force: 9400 lbs (4264 kg)
* Rotator/Pivot Rating: 6750 lbs (3062 kg)
* Total Weight: 285 lbs (130 kg)
* Dimensions (LxWxH): 47" x 44" x 40" (120 cm x 112 cm x 102 cm)
* Mounting System: Universal Mini Skidsteer Plate
LXG210S is designed to fit the universal attachment plate of the following make of Mini Skidsteers only: Toro, Vermeer, Ramrod, Boxer and Ditch Witch. If you have any questions concerning a particular model fit, please contact your Dealer or Wallenstein.
Features:
* Lift Capacity: 1000 lbs (454 kg)
* Engine HP Range: 12 - 50
* Required Hydraulic Flow: 3 gpm (11 lpm)
* Grapple Opening: 3" - 40" (8 cm - 102 cm)
* Grapple Rotation: 180°
* Clamp Force: 9400 lbs (4264 kg)
* Rotator/Pivot Rating: 6750 lbs (3062 kg)
* Total Weight: 285 lbs (130 kg)
* Dimensions (LxWxH): 47" x 44" x 40" (120 cm x 112 cm x 102 cm)
* Mounting System: Universal Mini Skidsteer Plate
| SKU | ELL-WAL-LXG210S |
|---|---|
| Weight | 285 lbs |
| Identifier | WAL-3313 |
| Model | LXG210S |
| Product Video | https://www.youtube.com/watch?v=r3dkm_d7s94 |
| Unit Length - Overall | 47" (119 cm) |
| Width - Overall | 44" (112 cm) |
| Height - Overall | 40" (102 cm) |
| Horsepower Recommended | 12 - 50 HP |
| Required Hydraulic Flow | 3 gpm (12 lpm) |
| Capacity, Maximum | 1,000 lbs. (453.6 Kg) |
| Rotation | 180-Degree Spring-Centered (non-hydraulic) |
| Maximum Opening | 40" (102 cm) |
| Hydraulic Cylinder(s) | Single Heavy Duty Hydraulic Clamping Cylinder, Included |
| Hydraulic Hoses/Couplers | Hydraulic Hoses & Flat-Faced Couplers Included |
| Hitch Connection Type | Mini Skid Steer |
| Color | Black (Other Colors Available/Optional) |
| Manufacturer | Wallenstein |
