Wallenstein Mini-Skid Steer Log Grapple Model LXG210SB
In Stock
SKU
ELL-WAL-LXG210SB
Compare at:
$4,157.00
Add to Cart for our Best Price
| Our Price | : |
$4,157.00
Add to Cart for our Best Price |
|
|---|---|---|---|
| Country Of Manufacture | : | Canada | |
| SKU | : | ELL-WAL-LXG210SB | |
| Identifier | : | WAL-3314 | |
| Availability | : |
Ships in Approximately 7-10 Business Days. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features or colors.

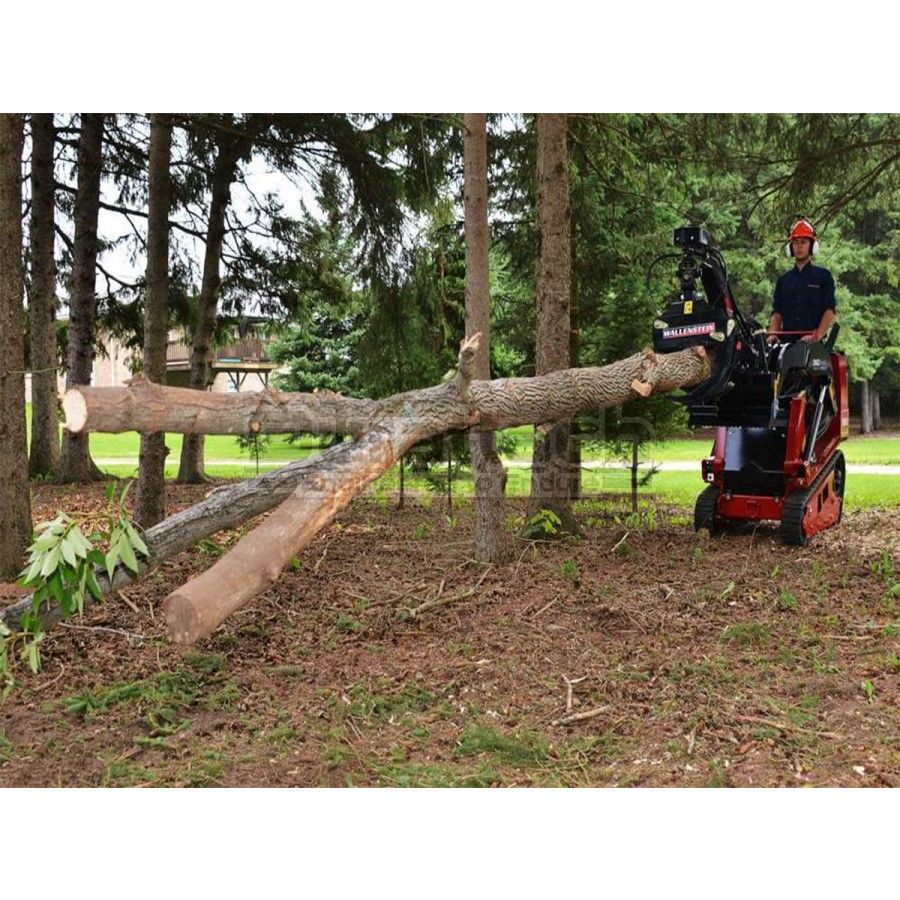

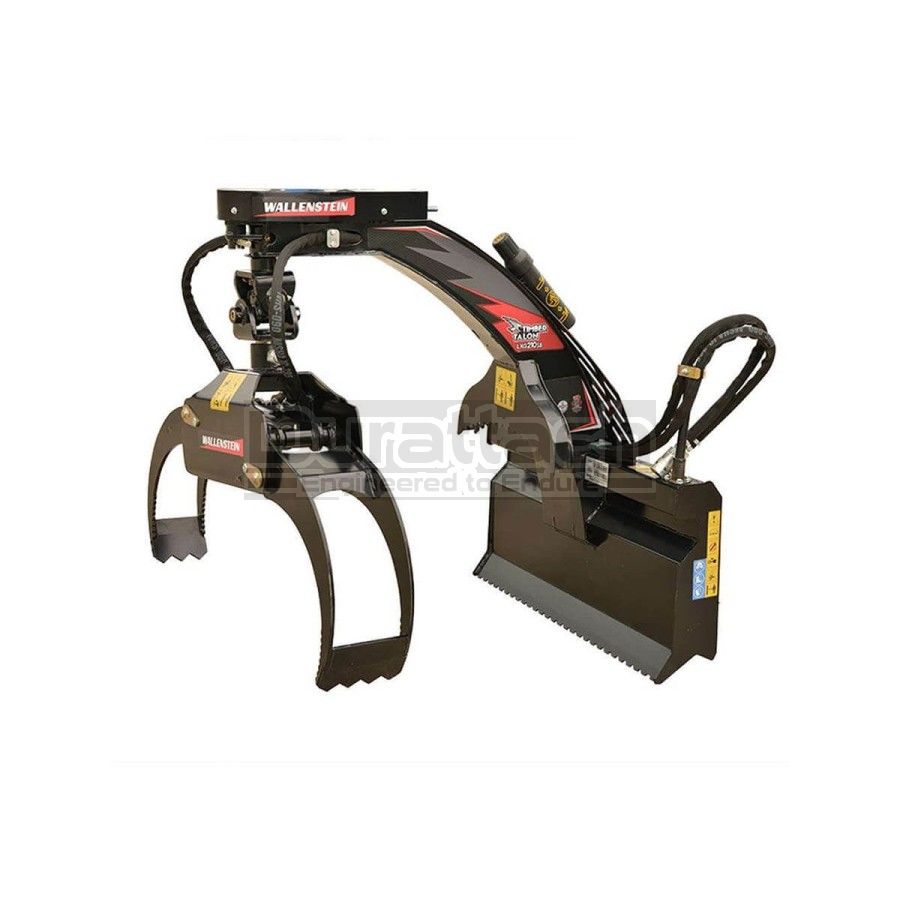

Squeeze into tight spaces and get the job done efficiently with Wallenstein’s new Mini Skidsteer Log Grapple, the ideal attachment for landscapers and tree service contractors who need hauling strength through narrow passages. The LXG210SB features a spring-centered return that twists when turning corners but stays straight when grabbing logs, a tight grapple closure for small branches, and lateral or in-line grapple positioning for smooth log handling.
LXG210S is designed to fit the universal attachment plate for Bobcat Mini Skidsteers.
Features:
* Lift Capacity: 1000 lbs (454 kg)
* Engine HP Range: 12 - 50
* Required Hydraulic Flow: 3 gpm (11 lpm)
* Grapple Opening: 3" - 40" (8 cm - 102 cm)
* Grapple Rotation: 180°
* Clamp Force: 9400 lbs (4264 kg)
* Rotator/Pivot Rating: 6750 lbs (3062 kg)
* Total Weight: 343 lbs (156 kg)
* Dimensions (LxWxH): 47" x 44" x 40" (120 cm x 112 cm x 102 cm)
* Mounting System: Mini Skidsteer Plate (Bobcat)
LXG210S is designed to fit the universal attachment plate for Bobcat Mini Skidsteers.
Features:
* Lift Capacity: 1000 lbs (454 kg)
* Engine HP Range: 12 - 50
* Required Hydraulic Flow: 3 gpm (11 lpm)
* Grapple Opening: 3" - 40" (8 cm - 102 cm)
* Grapple Rotation: 180°
* Clamp Force: 9400 lbs (4264 kg)
* Rotator/Pivot Rating: 6750 lbs (3062 kg)
* Total Weight: 343 lbs (156 kg)
* Dimensions (LxWxH): 47" x 44" x 40" (120 cm x 112 cm x 102 cm)
* Mounting System: Mini Skidsteer Plate (Bobcat)
| SKU | ELL-WAL-LXG210SB |
|---|---|
| Weight | 343 lbs |
| Identifier | WAL-3314 |
| Model | LXG210SB |
| Product Video | https://www.youtube.com/watch?v=r3dkm_d7s94 |
| Unit Length - Overall | 47" (119 cm) |
| Width - Overall | 44" (112 cm) |
| Height - Overall | 40" (102 cm) |
| Horsepower Recommended | 12 - 50 HP |
| Required Hydraulic Flow | 3 gpm (12 lpm) |
| Capacity, Maximum | 1,000 lbs. (453.6 Kg) |
| Rotation | 180-Degree Spring-Centered (non-hydraulic) |
| Maximum Opening | 40" (102 cm) |
| Hydraulic Cylinder(s) | Single Heavy Duty Hydraulic Clamping Cylinder, Included |
| Hydraulic Hoses/Couplers | Hydraulic Hoses & Flat-Faced Couplers Included |
| Hitch Connection Type | Mini Skid Steer |
| Color | Black (Other Colors Available/Optional) |
| Manufacturer | Wallenstein |
