Wallenstein Skid Steer Extendable Boom Hydraulic Rotation Log Grapple Model LXG430RP
In Stock
SKU
ELL-WAL-LXG430RP
Compare at:
$18,649.00
Add to Cart for our Best Price
| Our Price | : |
$18,649.00
Add to Cart for our Best Price |
|
|---|---|---|---|
| Country Of Manufacture | : | Canada | |
| SKU | : | ELL-WAL-LXG430RP | |
| Identifier | : | WAL-3236 | |
| Availability | : |
Back Ordered. Please contact us or call 208-717-9671 to confirm availability. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features or colors.

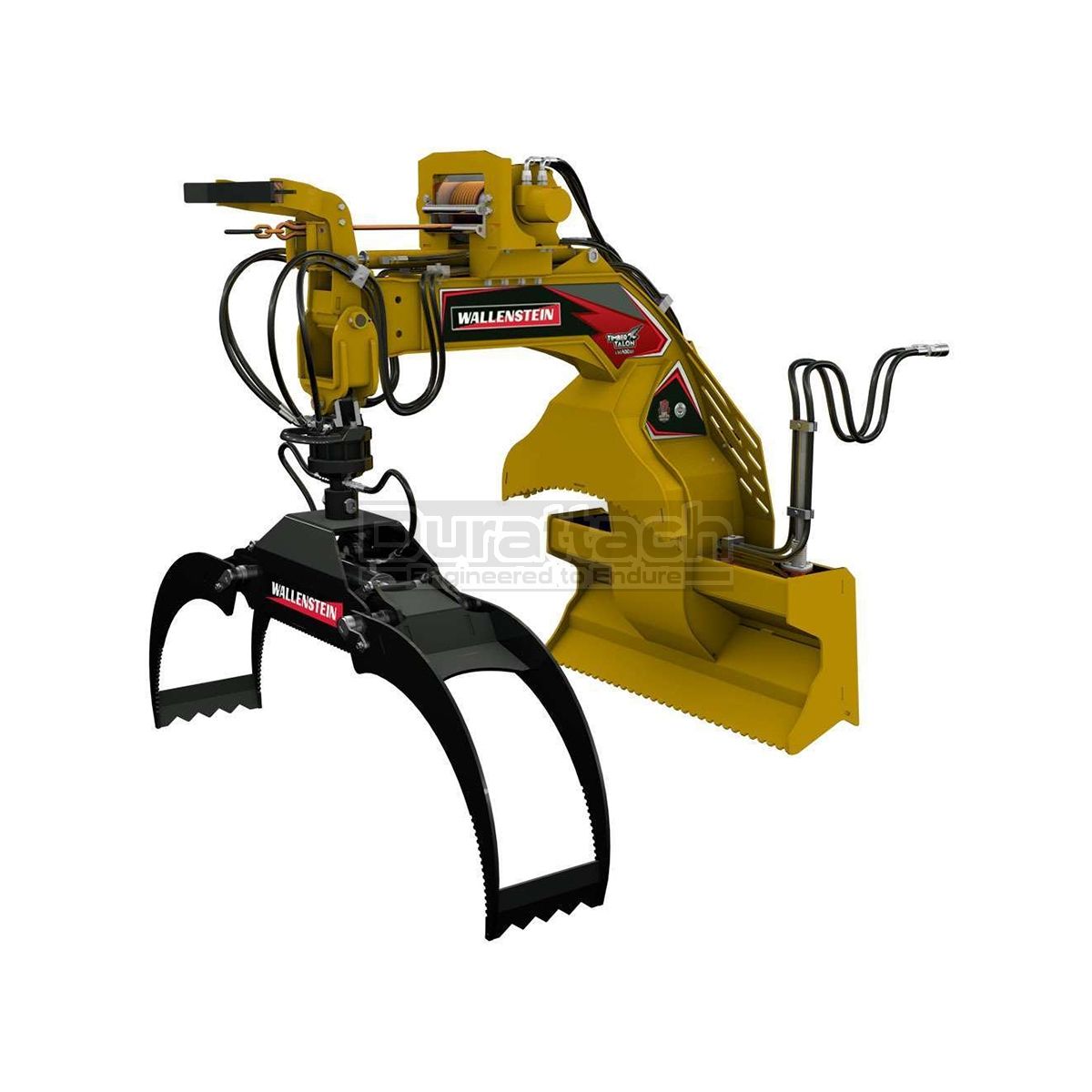

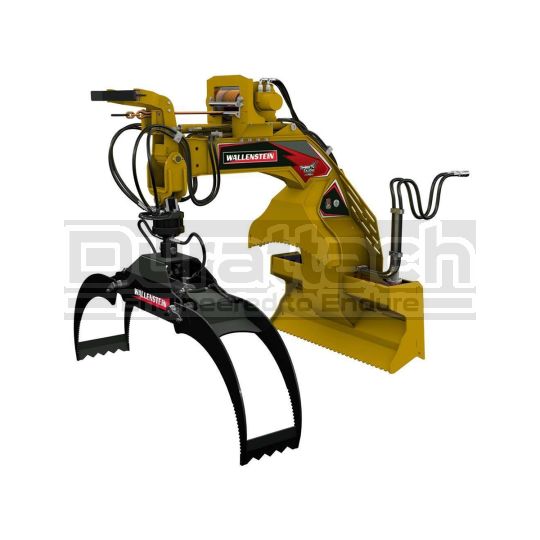

Wallenstein Skid Steer Extendable Boom Hydraulic Rotation Log Grapple Model LXG430RP
When you need to load, transport and stack logs smoothly and quickly at the sawmill, look no further than Wallenstein’s Skidsteer log grapples. Mounted directly to your skidsteer, these heavy-duty grapples give you total control from inside the cab to pick up and move logs with incredible agility.
Features:
* Includes 100' Synthetic Cable
* Grapple Opening: 3" - 72" (8 cm - 182 cm)
* Lift Capacity: 4500 lbs (2041 kg)
* HP Range: 76 - 100
* Clamp Force: 21000 lbs (9525 kg)
* Dimensions (LxWxH): 67" x 76" x 70" (171 cm x 193 cm x 178 cm)
* Total Weight: 1444 lbs (510 kg)
* Grapple Rotation: 360°
* Mounting System: Universal Skidsteer Quick Attach Plate
* Minimum Hydraulic Flow: 10 gpm (3.8 lpm)
* Extendable Boom: 24" (61 cm)
* Push Bar Width: 19" (48 cm)
* Rotator/Pivot Rating: 9000 lbs (4082 kg)
When you need to load, transport and stack logs smoothly and quickly at the sawmill, look no further than Wallenstein’s Skidsteer log grapples. Mounted directly to your skidsteer, these heavy-duty grapples give you total control from inside the cab to pick up and move logs with incredible agility.
Features:
* Includes 100' Synthetic Cable
* Grapple Opening: 3" - 72" (8 cm - 182 cm)
* Lift Capacity: 4500 lbs (2041 kg)
* HP Range: 76 - 100
* Clamp Force: 21000 lbs (9525 kg)
* Dimensions (LxWxH): 67" x 76" x 70" (171 cm x 193 cm x 178 cm)
* Total Weight: 1444 lbs (510 kg)
* Grapple Rotation: 360°
* Mounting System: Universal Skidsteer Quick Attach Plate
* Minimum Hydraulic Flow: 10 gpm (3.8 lpm)
* Extendable Boom: 24" (61 cm)
* Push Bar Width: 19" (48 cm)
* Rotator/Pivot Rating: 9000 lbs (4082 kg)
| SKU | ELL-WAL-LXG430RP |
|---|---|
| Weight | 1444 lbs |
| Identifier | WAL-3236 |
| Model | LXG430RP |
| Product Video | https://youtu.be/r3dkm_d7s94 |
| Unit Length - Overall | 67" (170 cm) |
| Width - Overall | 76" (193 cm) |
| Height - Overall | 70" (178 cm) |
| Horsepower Recommended | 60 - 125 HP (44.7 - 93.2 KW) |
| Required Hydraulic Flow | 10 gpm (37.9 lpm) Minimum Recommended |
| Capacity, Maximum | 4,500 lbs. (2,041.2 Kg) |
| Rotation | 360-Degree Continuous Hydraulic |
| Maximum Opening | 72" (183 cm) |
| Hydraulic Cylinder(s) | Heavy Duty Hydraulic Cylinders Included |
| Hydraulic Hoses/Couplers | Hydraulic Hoses & Flat-Faced Couplers Included |
| Hitch Connection Type | Universal-Style Skid Steer Quick-Attach |
| Color | Yellow (Other Colors Available/Optional) |
| Manufacturer | Wallenstein |
