Wallenstein Tractor or Skid Steer Backhoe Model GE605
| Our Price | : |
$8,050.00
Add to Cart for our Best Price |
|
|---|---|---|---|
| SKU | : | ELL-WAL-GE605 | |
| Identifier | : | WAL-3337 | |
| Availability | : |
Ships in Approximately 4-6 Weeks; Built-to-Order. May be subject to unexpected delays. |
|
Questions? Call 208-717-9671
Images are representative but may vary from actual product and/or show optional features.

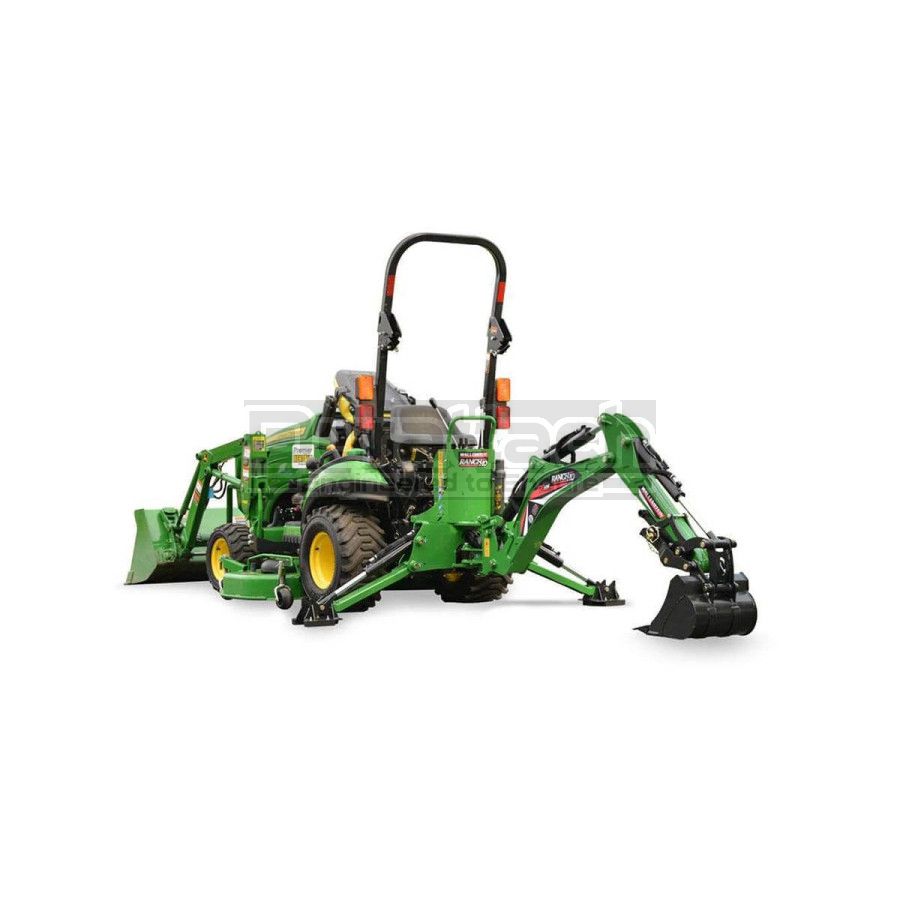

Wallenstein Tractor or Skid Steer Backhoe Model GE605
PRICE IS FOR BACKHOE ONLY! HOST MACHINE (TRACTOR / SKID STEER) NOT INCLUDED.
Break ground, not your back. When it comes to landscaping and excavating, start the job right with the Wallenstein Ranchho, the backhoe attachment that digs deeper and reaches further.
The Ranchho GX620 is designed for subcompact tractors. With a digging depth of 6'-4" and a 9-foot reach, the GX620 gets down and dirty, breaking the frostline and finishing the job quickly. The Ranchho gives you precision and power at your fingertips. The curved-boom backhoe is a versatile attachment that fits your tractor and your property. The Ranchho is a rugged backhoe that’s ready to sink its teeth into any task you give it, from landscaping to concrete footings.
The Ranchho is the perfect attachment for your tractor that gets the most out of your land. Landscaping, excavating and trenching soon become easy tasks with the digging power and reaching length of the Ranchho. Add a thumb to the Ranchho and start moving rocks into perfect position for your landscaping projects. For smaller tractors without hydraulics, the optional power pack gets you digging.
Features:
â–ª Digging Depth: 6' 4" (193 cm)
â–ª Engine HP Range (Tractor): 15 - 35
â–ª Required Hydraulic Flow: 4 - 12 gpm (15 - 45 lpm)
â–ª Stabilizer Width (Spread) : 72" (183 cm)
â–ª Main Boom Cylinder Diameter : 2.5" (64 mm)
â–ª Dipper Cylinder Diameter : 2.25" (57 mm)
â–ª Bucket Cylinder Diameter: 2" (51 mm)
â–ª Number Of Swing Cylinders: 1
â–ª Swing Cylinder Diameter: 2.5" (64 mm)
â–ª Stabilizer Cylinder Diameter: 2" (51 mm)
â–ª Reach From Swing Post : 100" (254 cm)
â–ª Includes Flow Divider: No
▪ Bucket Rotation: 180°
▪ Swing Arc: 150°
â–ª SAE* Dipper Boom Digging Force: 1250 lbs (567 kg)
â–ª SAE* Bucket Digging Force: 2054 lbs (932 kg)
â–ª Boom Lift Capacity: 250 lbs (113 kg)
â–ª Ground Clearance: 8.5" (22 cm)
â–ª Loading Height: 62" (158 cm)
â–ª Overall Operating Height (Fully Raised): 91" (231 cm)
â–ª Total Weight: 500 lbs (227 kg)
â–ª Transport Dimensions (LxWxH): 56" x 41" x 65" (142 cm x 104 cm x 165 cm)
â–ª Operating Pressure: 1800 psi (12411 kPa)
â–ª Mounting System: Subframe
PRICE IS FOR BACKHOE ONLY! HOST MACHINE (TRACTOR / SKID STEER) NOT INCLUDED.
Break ground, not your back. When it comes to landscaping and excavating, start the job right with the Wallenstein Ranchho, the backhoe attachment that digs deeper and reaches further.
The Ranchho GX620 is designed for subcompact tractors. With a digging depth of 6'-4" and a 9-foot reach, the GX620 gets down and dirty, breaking the frostline and finishing the job quickly. The Ranchho gives you precision and power at your fingertips. The curved-boom backhoe is a versatile attachment that fits your tractor and your property. The Ranchho is a rugged backhoe that’s ready to sink its teeth into any task you give it, from landscaping to concrete footings.
The Ranchho is the perfect attachment for your tractor that gets the most out of your land. Landscaping, excavating and trenching soon become easy tasks with the digging power and reaching length of the Ranchho. Add a thumb to the Ranchho and start moving rocks into perfect position for your landscaping projects. For smaller tractors without hydraulics, the optional power pack gets you digging.
Features:
â–ª Digging Depth: 6' 4" (193 cm)
â–ª Engine HP Range (Tractor): 15 - 35
â–ª Required Hydraulic Flow: 4 - 12 gpm (15 - 45 lpm)
â–ª Stabilizer Width (Spread) : 72" (183 cm)
â–ª Main Boom Cylinder Diameter : 2.5" (64 mm)
â–ª Dipper Cylinder Diameter : 2.25" (57 mm)
â–ª Bucket Cylinder Diameter: 2" (51 mm)
â–ª Number Of Swing Cylinders: 1
â–ª Swing Cylinder Diameter: 2.5" (64 mm)
â–ª Stabilizer Cylinder Diameter: 2" (51 mm)
â–ª Reach From Swing Post : 100" (254 cm)
â–ª Includes Flow Divider: No
▪ Bucket Rotation: 180°
▪ Swing Arc: 150°
â–ª SAE* Dipper Boom Digging Force: 1250 lbs (567 kg)
â–ª SAE* Bucket Digging Force: 2054 lbs (932 kg)
â–ª Boom Lift Capacity: 250 lbs (113 kg)
â–ª Ground Clearance: 8.5" (22 cm)
â–ª Loading Height: 62" (158 cm)
â–ª Overall Operating Height (Fully Raised): 91" (231 cm)
â–ª Total Weight: 500 lbs (227 kg)
â–ª Transport Dimensions (LxWxH): 56" x 41" x 65" (142 cm x 104 cm x 165 cm)
â–ª Operating Pressure: 1800 psi (12411 kPa)
â–ª Mounting System: Subframe
| SKU | ELL-WAL-GE605 |
|---|---|
| Weight | 500 lbs |
| Identifier | WAL-3337 |
| Model | GE605 |
| Product Video | http://www.youtube.com/watch?v=A1V70Cayd0Y#t=12 |
| Horsepower Recommended | 15 - 35 HP (11.2 - 26.1 KW) |
| Required Hydraulic Flow | 4 - 12 gpm (15 - 45 lpm); equipment with higher gpm require flow diverter kit |
| Operating Pressure | 1,800 psi (124.1 bar) |
| Digging Depth | 6'-4" (193 cm) 2-foot Flat Bottom |
| Reach | 100" (254 cm) From Swing Post |
| Swing Arc | 150º |
| Bucket Rotation | 180º |
| Digging Force - Dipper Boom | 1,250 lbs. |
| Digging Force - Bucket | 2,054 lbs. |
| Boom Lift Capacity | 250 lbs (113 kg) |
| Stabilizer Width | 40" (102 cm) Retracted; 74" (188 cm) Spread |
| Hydraulic Cylinder(s) | 2-1/2" (6 cm) Main Boom; 2-1/4" (6 cm) Dipper; 2" (5 cm) Stabilizers/Swing |
| Hitch Connection Type | Choice of Category 1, 3-Point Hitch; Sub-Frame Mount; Skid Steer Universal |
| Color | Black (Other Colors Available/Optional) |
| Manufacturer | Wallenstein |
