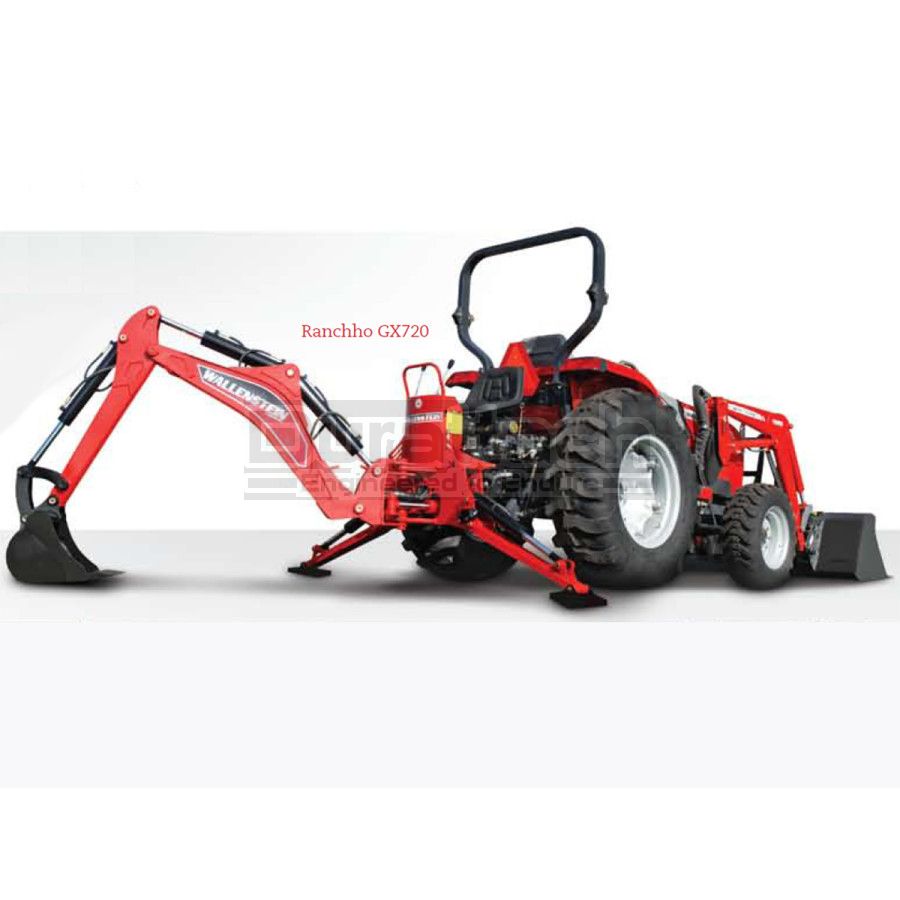

Wallenstein Tractor or Skidsteer Backhoe Model GX720

Wallenstein Tractor or Skidsteer Backhoe Model GX720

PRICE IS FOR BACKHOE ONLY! HOST MACHINE (TRACTOR / SKID STEER) NOT INCLUDED.

Break ground, not your back. When it comes to landscaping and excavating, start the job right with the Wallenstein Ranchho, the backhoe attachment that digs deeper and reaches further.

For mid-size tractors between 35-70HP, the Ranchho GX720 makes its mark. Digging down 7-feet deep and reaching 10-feet across, the GX720 breaks ground and keeps on going. With the excavator style curved boom and easy to use controls, the GX720 is ready to handle any ground conditions from topsoil to clay and gravel.

The Ranchho is the perfect attachment for your tractor that gets the most out of your land. Landscaping, excavating and trenching soon become easy tasks with the digging power and reaching length of the Ranchho. Add a thumb to the Ranchho and start moving rocks into perfect position for your landscaping projects. For smaller tractors without hydraulics, the optional power pack gets you digging.

Features:
▪ Digging Depth: 7' 8" (234 cm)
▪ Engine HP Range (Tractor): 30 - 65
▪ Engine HP Range (Skidsteer): 30 - 75
▪ Required Hydraulic Flow: 5 - 27 gpm (19 - 102 lpm)
▪ Stabilizer Width (Spread) : 89" (226 cm)
▪ Main Boom Cylinder Diameter : 3" (76 mm)
▪ Dipper Cylinder Diameter : 2.5" (64 mm)
▪ Bucket Cylinder Diameter: 2.5" (64 mm)
▪ Number Of Swing Cylinders: 2
▪ Swing Cylinder Diameter: 2.5" (64 mm)
▪ Stabilizer Cylinder Diameter: 2.5" (64 mm)
▪ Reach From Swing Post : 123" (312 cm)
▪ Includes Flow Divider: Yes
▪ Bucket Rotation: 180°
▪ Swing Arc: 180°
▪ SAE* Dipper Boom Digging Force: 2300 lbs (1043 kg)
▪ SAE* Bucket Digging Force: 3800 lbs (1724 kg)
▪ Boom Lift Capacity: 925 lbs (420 kg)
▪ Ground Clearance: 10.5" (27 cm)
▪ Loading Height: 80" (203 cm)
▪ Overall Operating Height (Fully Raised): 119" (302 cm)
▪ Total Weight: 765 lbs (347 kg)
▪ Transport Dimensions (LxWxH): 80" x 43" x 79" (203 cm x 109 cm x 201 cm)
▪ Operating Pressure: 2250 psi (15513 kPa)
▪ Mounting System: Subframe, Skidsteer Universal Plate, PT302 (Cat I), PT322 (Cat II)
