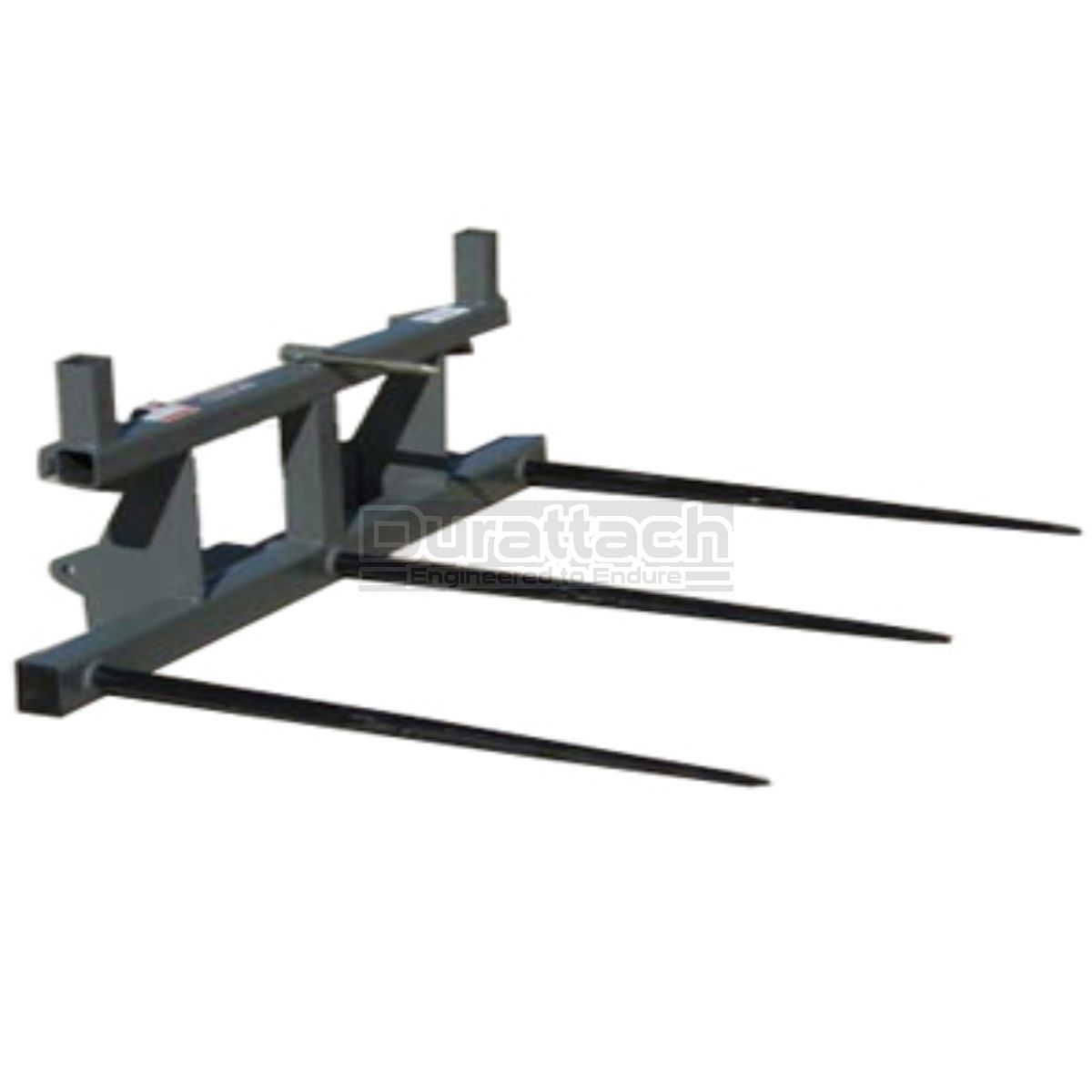

Worksaver Euro-Style Integrated Frame Bale Spears Model ELB-330
| Compare at | : | $1,400.00 | |
|---|---|---|---|
| Our Price | : | $1,330.00 | |
| SKU | : | RAN-WOR-ELB-330 | |
| Identifier | : | WOR-3915 | |
| Availability | : |
Back Ordered. Please contact us or call 208-717-9671 to confirm availability. |
|
Questions? Call 208-717-9671
Triple bolt-in forged spears spaced 26" apart, with usable length of 26". For handling single or double (with optional uprights #831095) large-size square bales. Rated at 3,000 lbs. Item #832365, 175 lbs.
Features:
▪ Main Frame Weldment (ELB-330)
▪ Spear, Bolt-in (47.25")
▪ Bolt 1/2"- 13NC x 3" Hex Head Gr. 2
▪ Nut 1/2" - 13NC Hex Stamplock
▪ Balance Spike
▪ Bolt 5/16" - 18NC x 2" Hex Head Gr. 2
▪ Washer 5/16" Spring Lock
▪ Nut 5/16" - 18NC Full Hex
▪ Lock Bar
▪ Roll Pin, 5/16" x 2"
▪ Roll Pin, 3/8" x 2"
▪ Roll Pin, 1/2" x 2 1/2"
▪ Spring, Lock Bar
▪ Safety Sign - Caution (Instructions)
▪ Safety Sign - Notice (3000 Lb. capacity)
Features:
▪ Main Frame Weldment (ELB-330)
▪ Spear, Bolt-in (47.25")
▪ Bolt 1/2"- 13NC x 3" Hex Head Gr. 2
▪ Nut 1/2" - 13NC Hex Stamplock
▪ Balance Spike
▪ Bolt 5/16" - 18NC x 2" Hex Head Gr. 2
▪ Washer 5/16" Spring Lock
▪ Nut 5/16" - 18NC Full Hex
▪ Lock Bar
▪ Roll Pin, 5/16" x 2"
▪ Roll Pin, 3/8" x 2"
▪ Roll Pin, 1/2" x 2 1/2"
▪ Spring, Lock Bar
▪ Safety Sign - Caution (Instructions)
▪ Safety Sign - Notice (3000 Lb. capacity)
| SKU | RAN-WOR-ELB-330 |
|---|---|
| Weight | 175 lbs |
| Identifier | WOR-3915 |
| Model | ELB-330 |
| Width - Overall | 26 ”(66.04 cm) |
| Spear(s) | Three Large Replaceable Spears (26" Usable Length) |
| Conus Size | Not Specified |
| Hitch Connection Type | N/A |
| Color | Black |
| Manufacturer | Worksaver |
